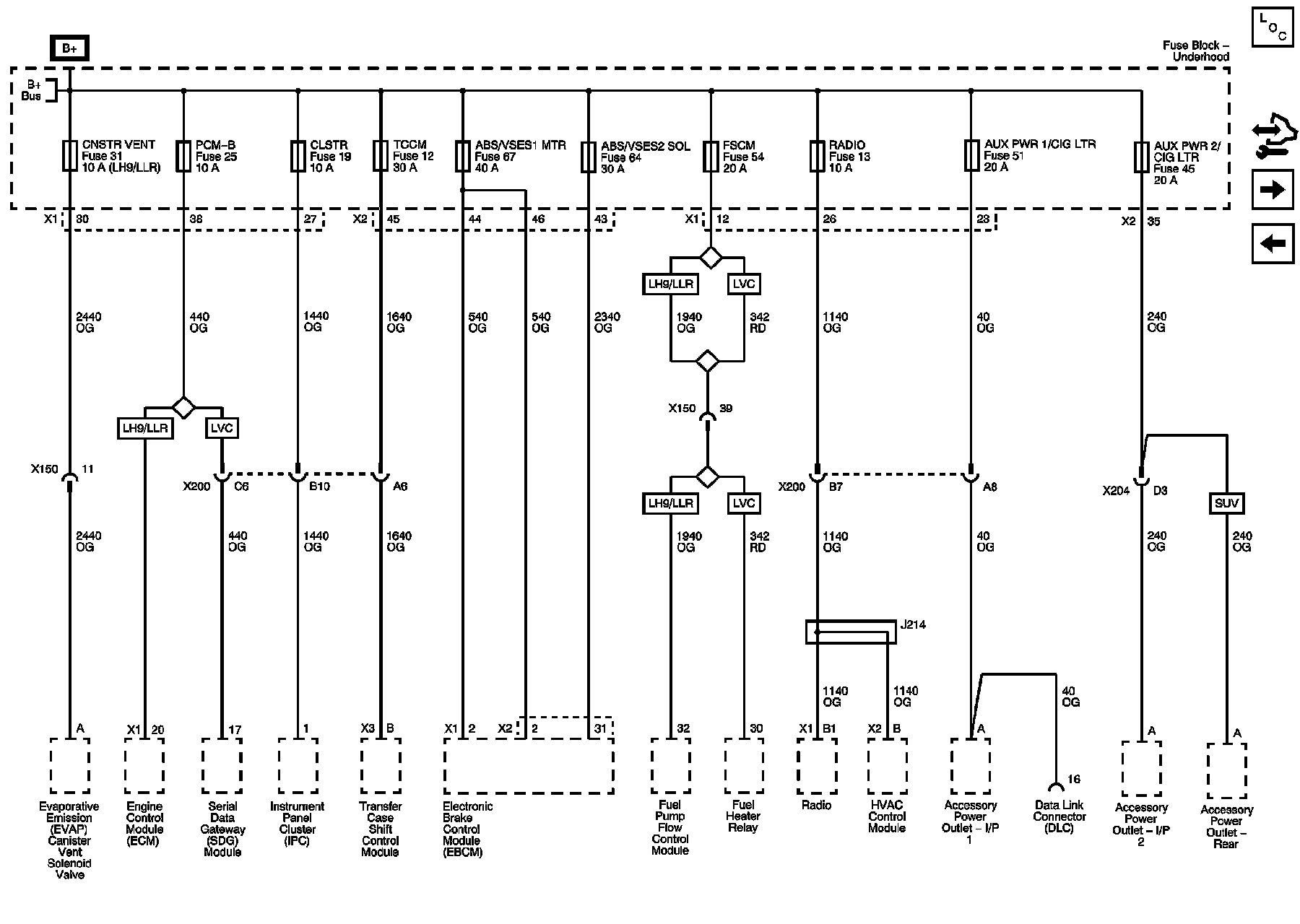

Home >> Hummer >> 2010 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 2
