Inside Rearview Mirror Schematics




Inside Rearview Mirror Schematics

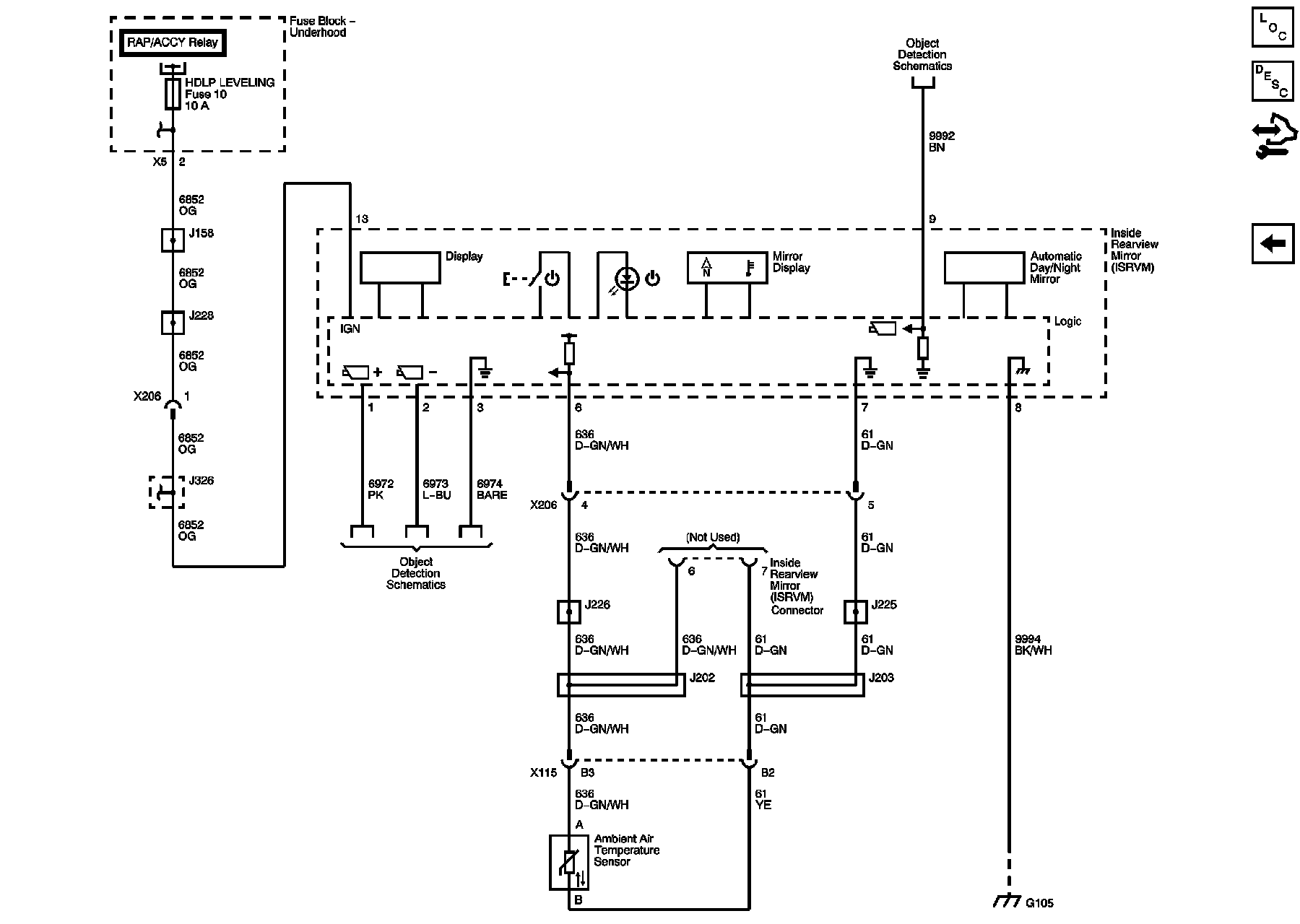

Inside Rearview Mirror (without BRM)

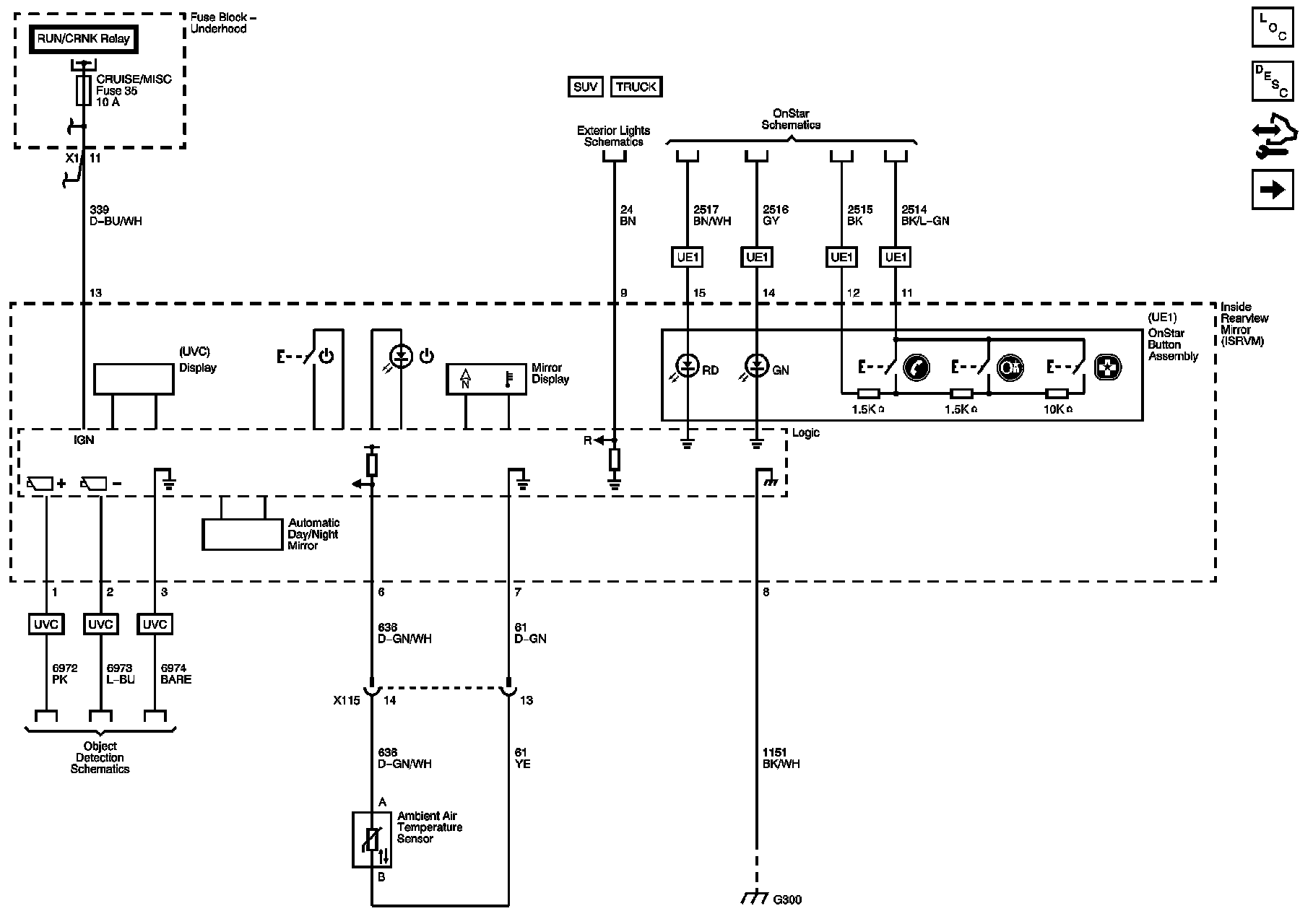

Inside Rearview Mirror (BRM without UVF)





Inside Rearview Mirror (BRM with UVF)
