Air Bag Systems




SIR Schematics

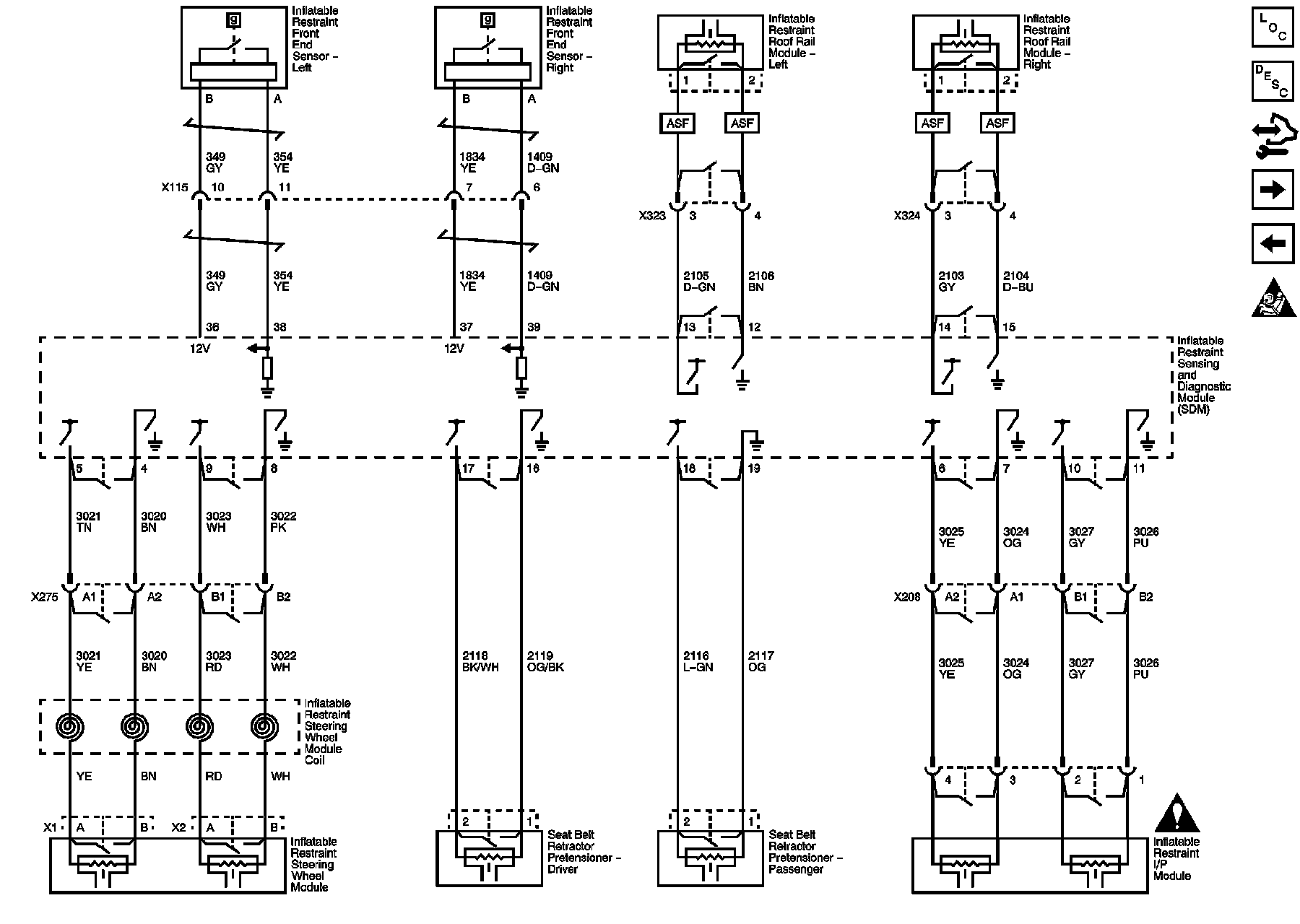

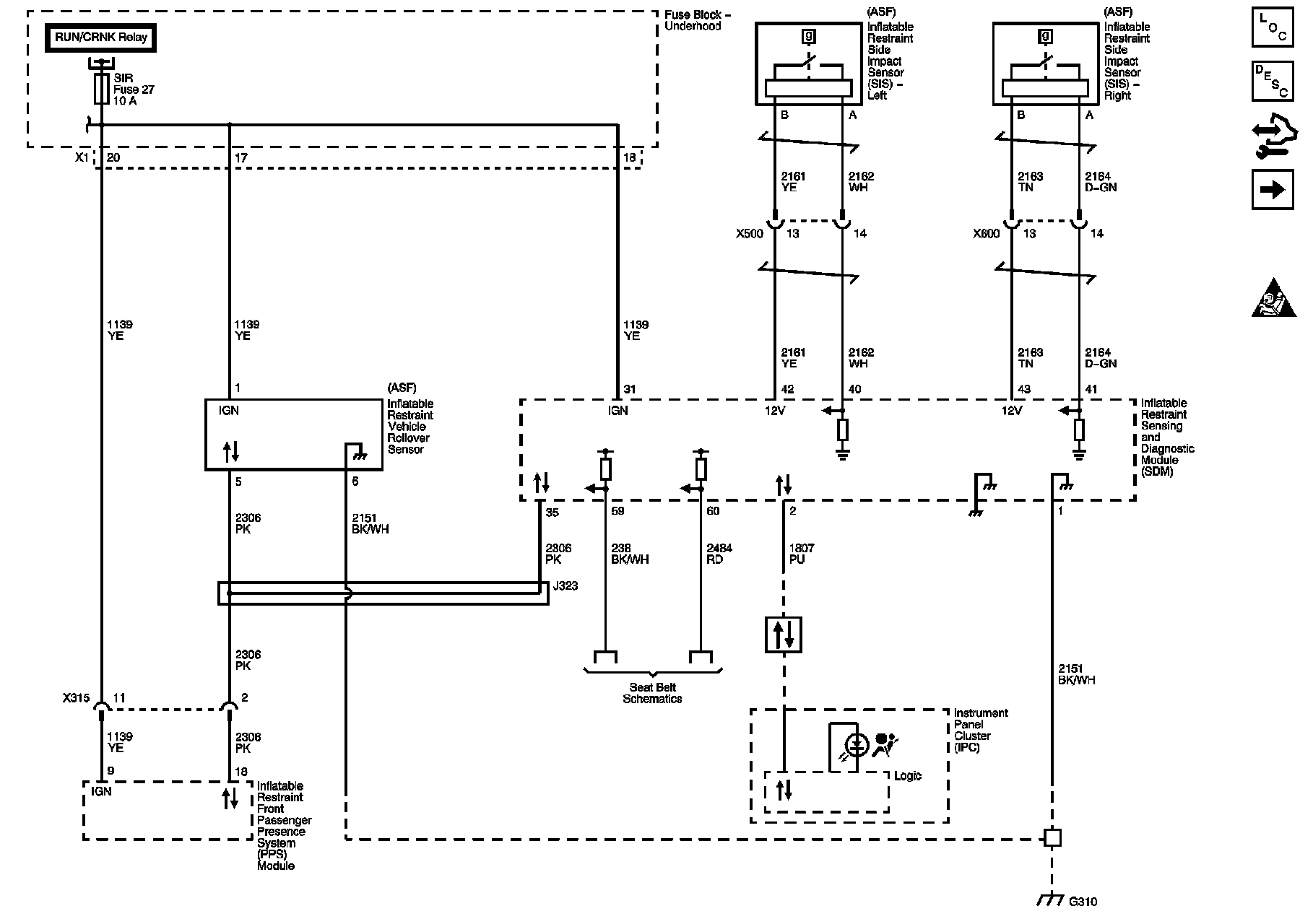

Module Power, Ground, Serial Data, Front Impact Sensors, and Indicators





Inflator Modules





Passenger Presence Controls
