Hummer
>>
2010
>>
H3 V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Master Connector List
Master Connector List
Master Electrical Component List

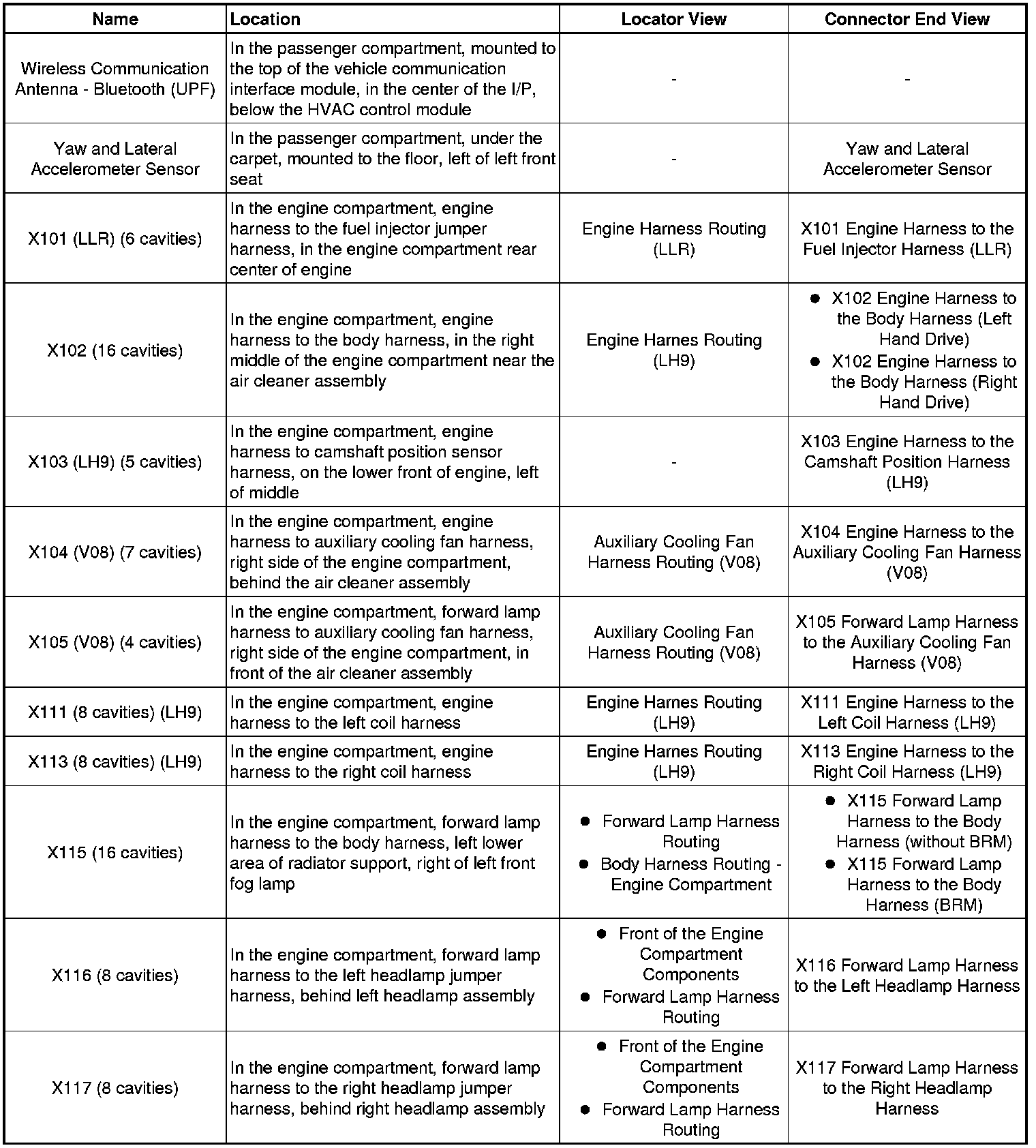

Wi - X1:

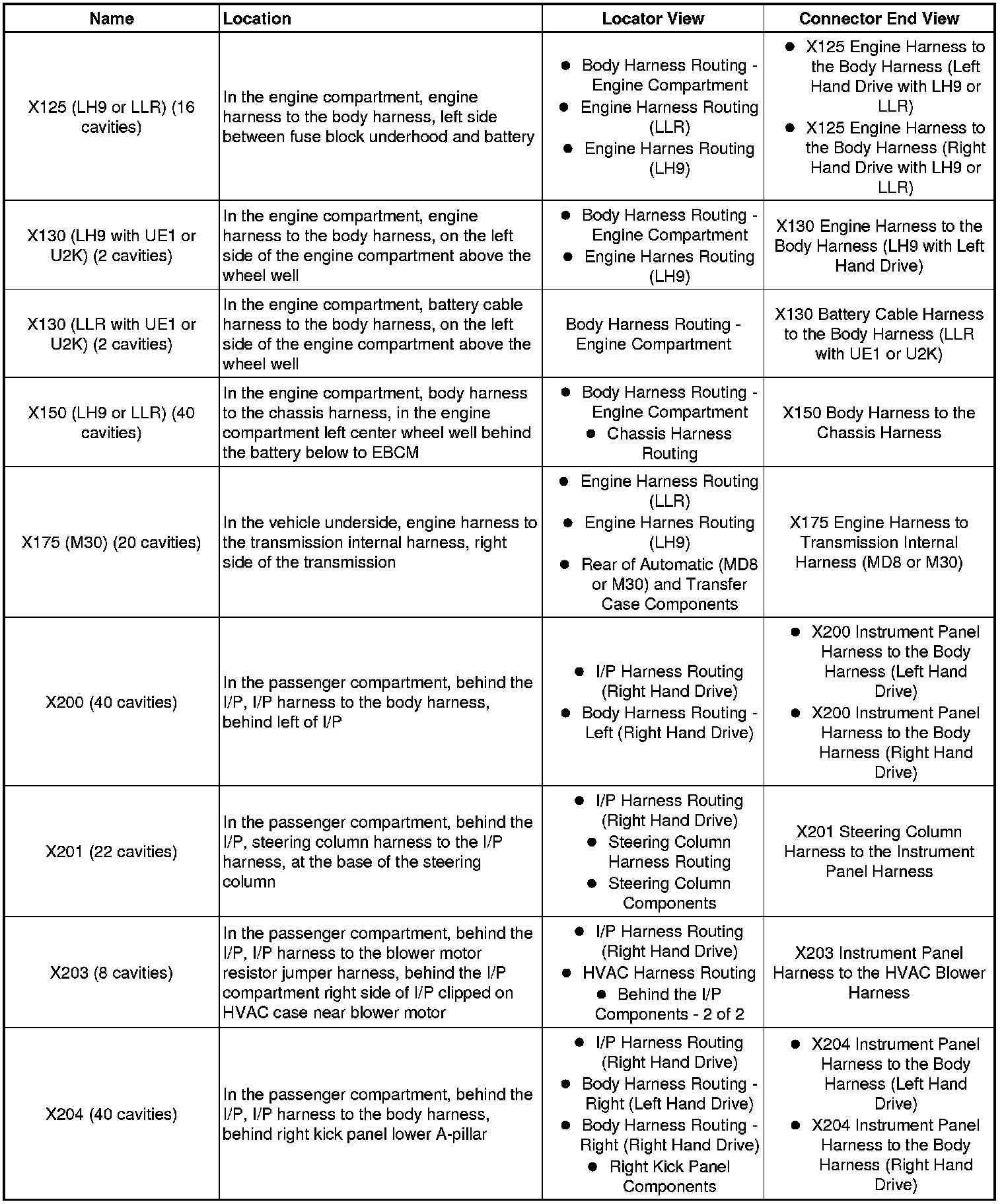

X125 - X204:

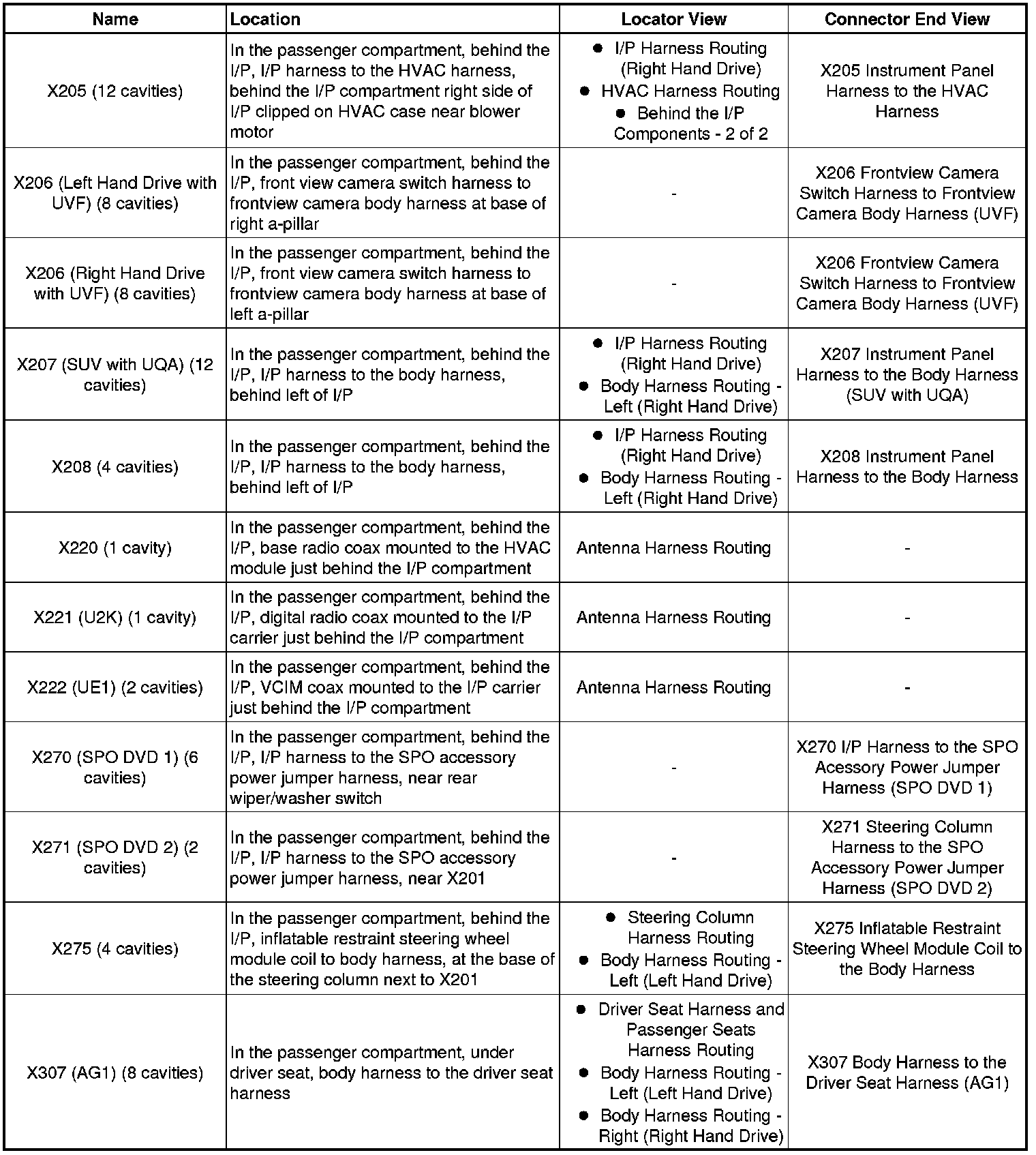

X205 - X307:

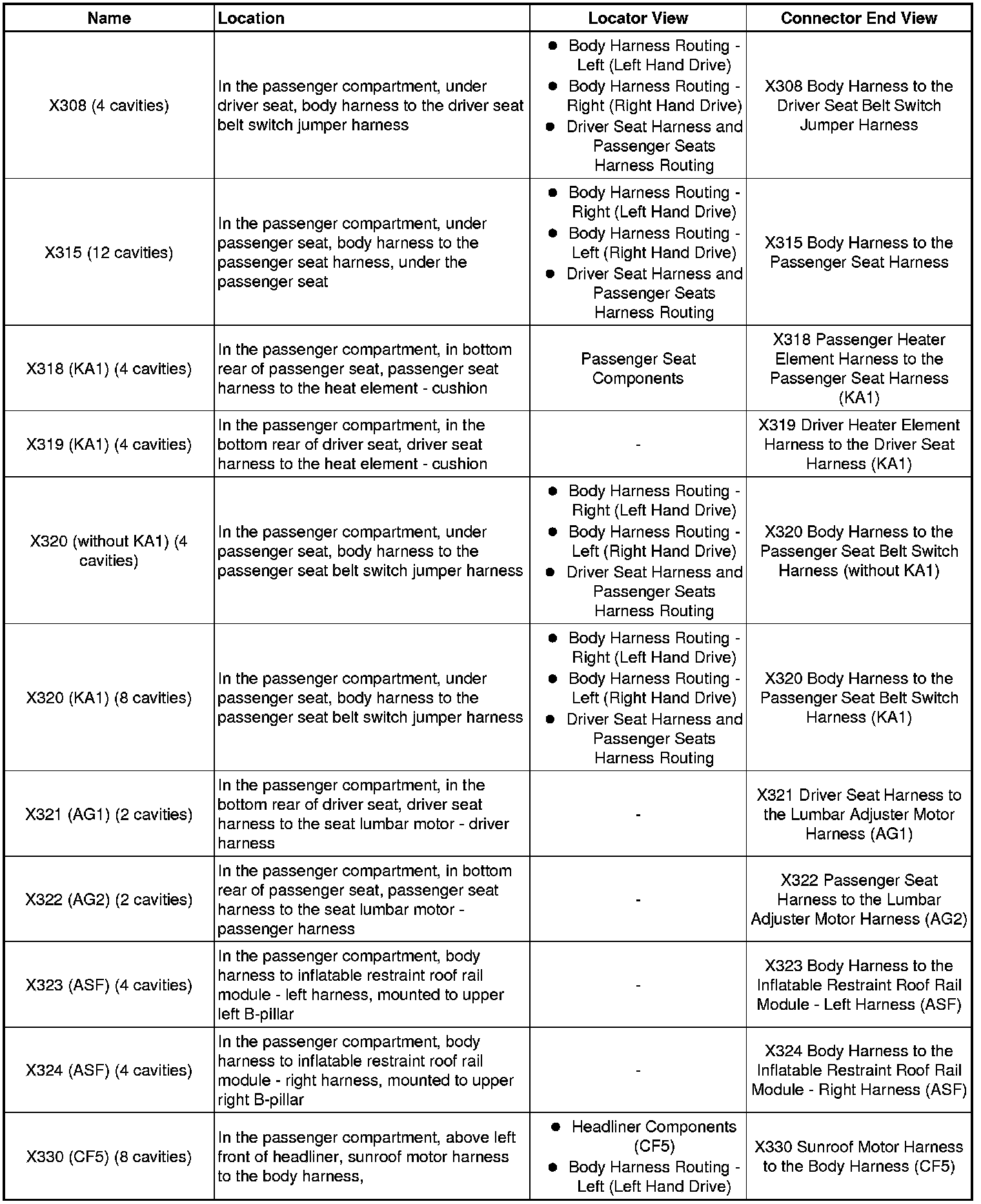

X308 - X330:

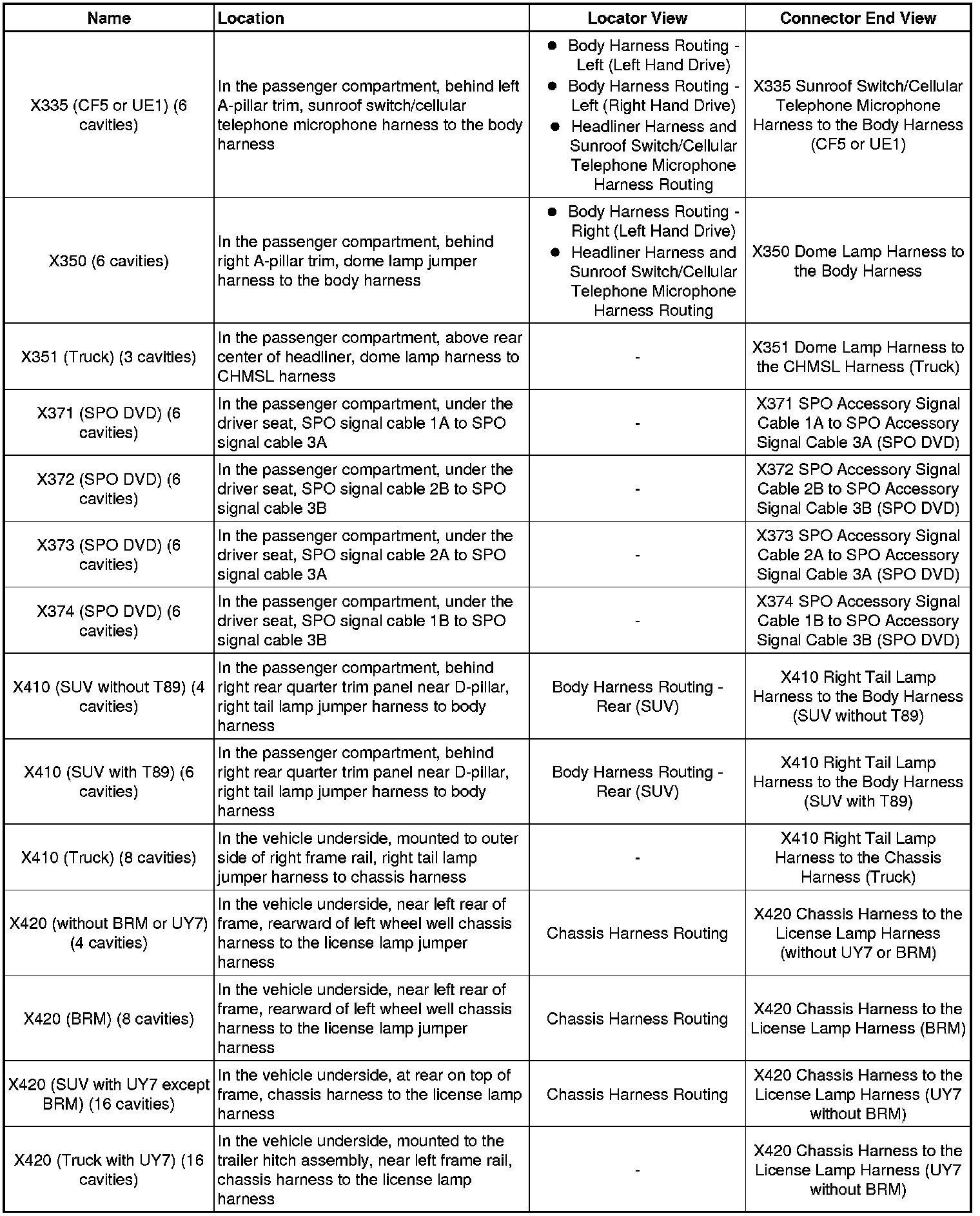

X335 - X420:

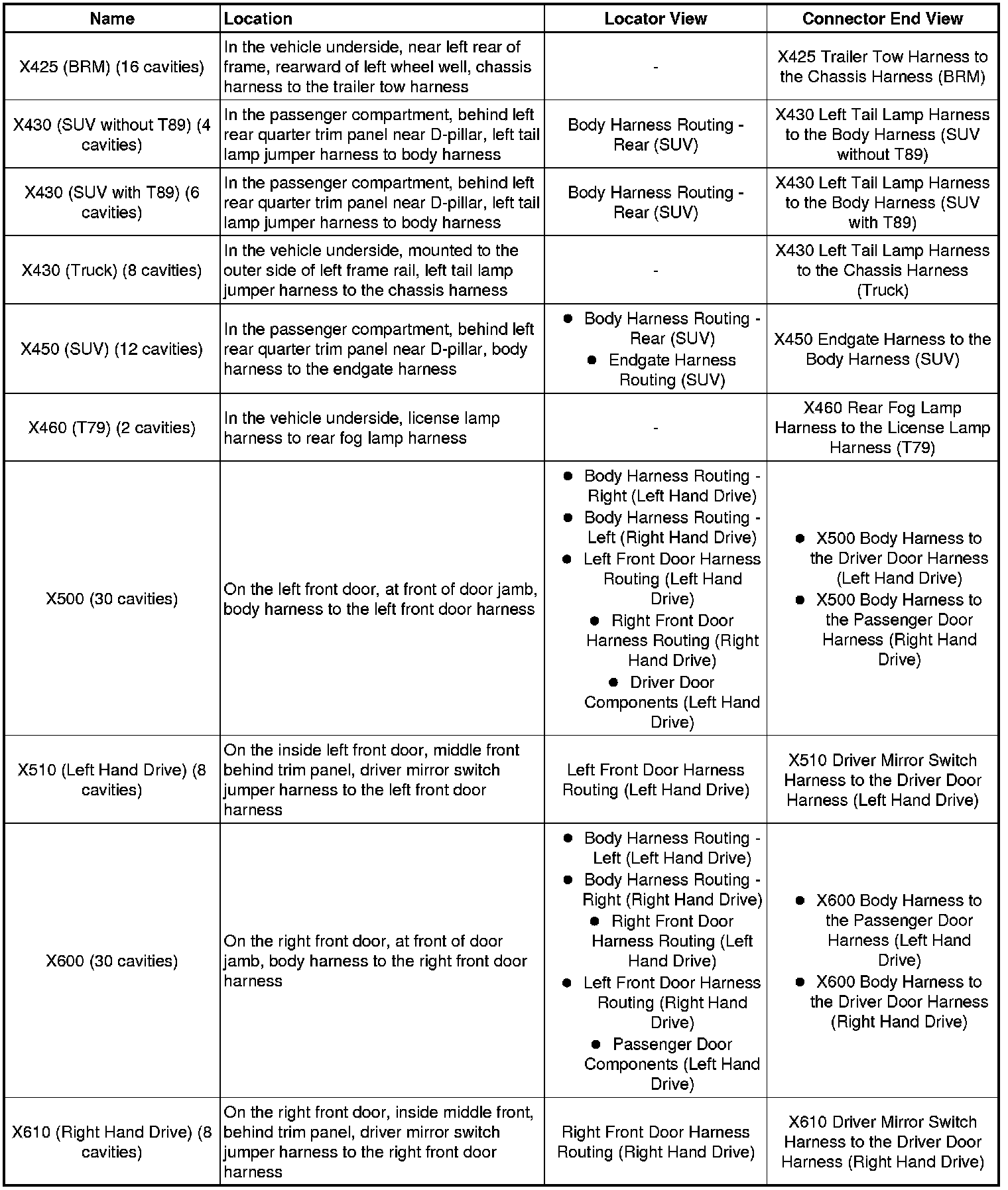

X425 - X610:

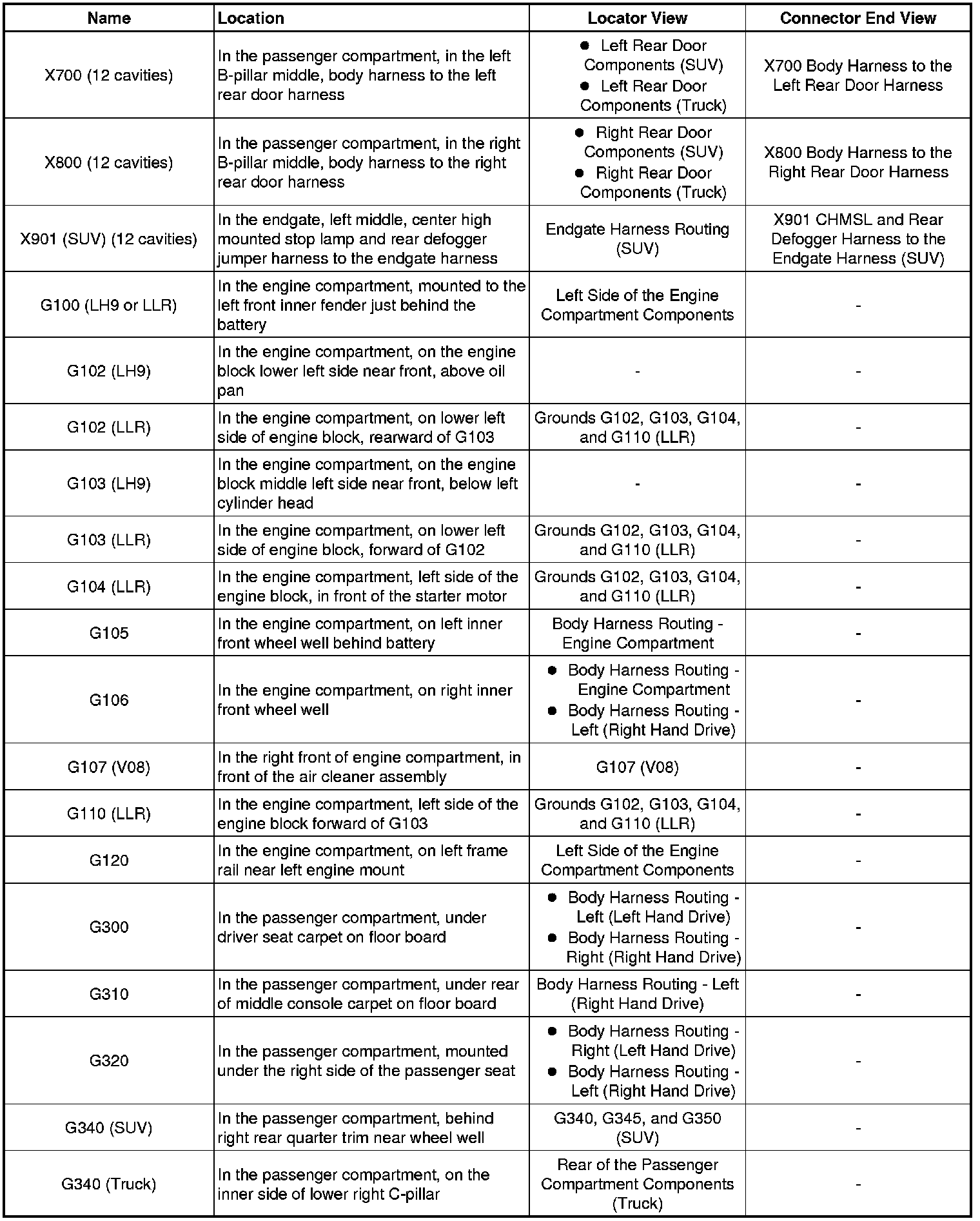

X700 - G340:
