Seat Belt Buckle




Component Connector End Views

Seat Belt Buckle - Driver





Seat Belt Buckle - Passenger X1 (without KA1)

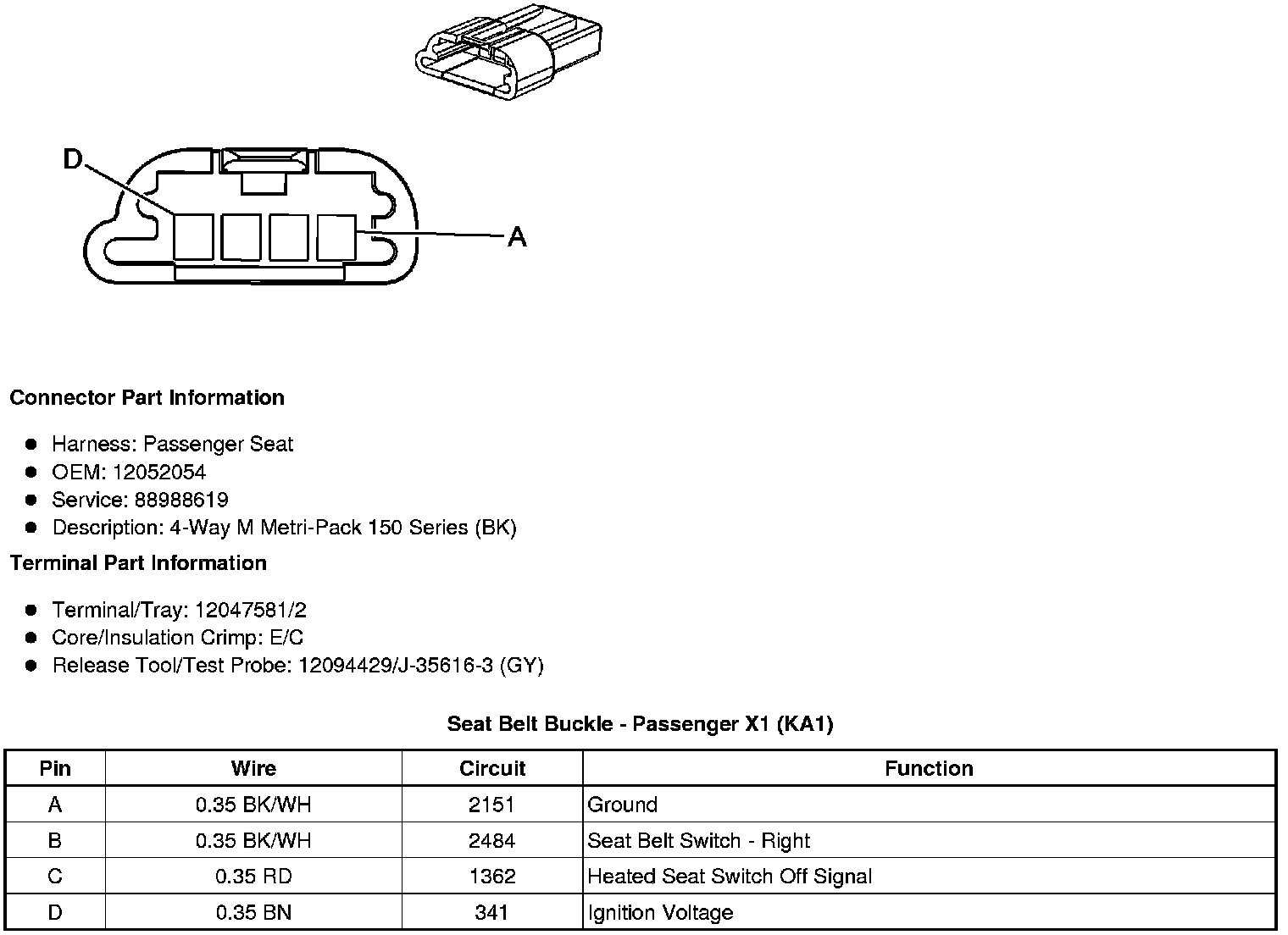

Seat Belt Buckle - Passenger X1 (KA1)





Seat Belt Buckle - Passenger X2
