Instrument Cluster / Carrier




Component Connector End Views

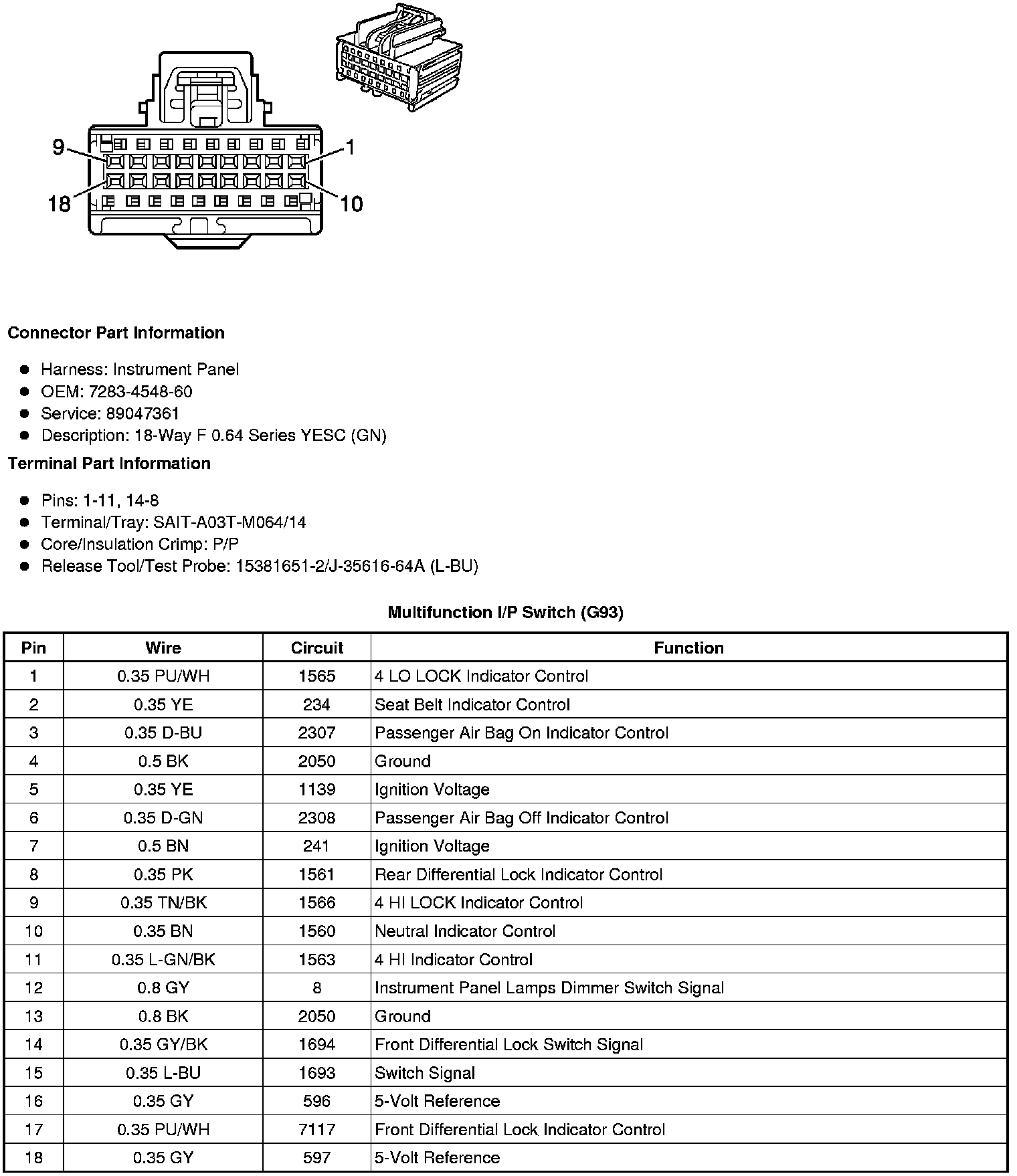

Multifunction I/P Switch (G93)

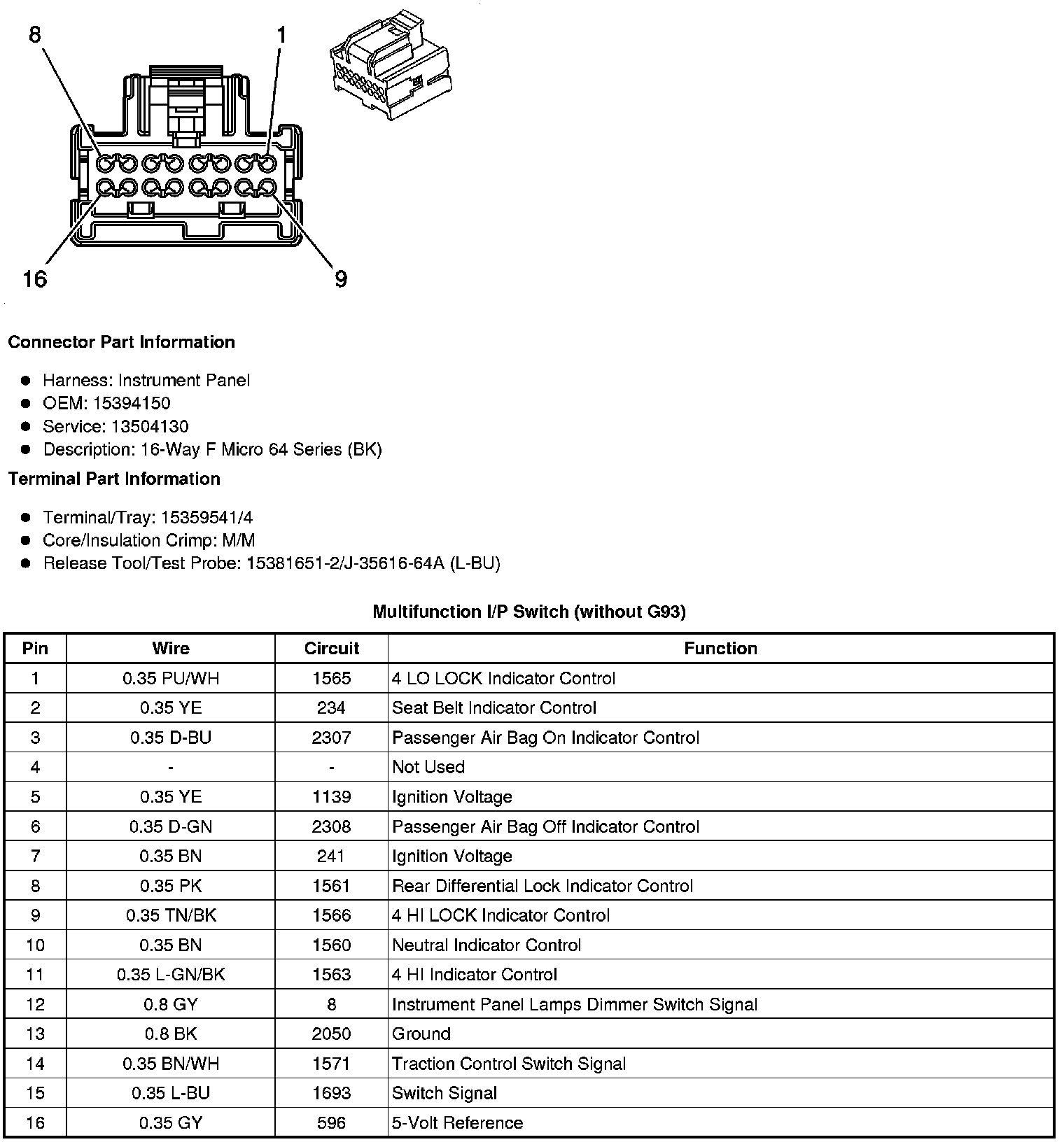

Multifunction I/P Switch (without G93)





Instrument Panel Cluster (IPC)
