Headlamp Alignment Actuator

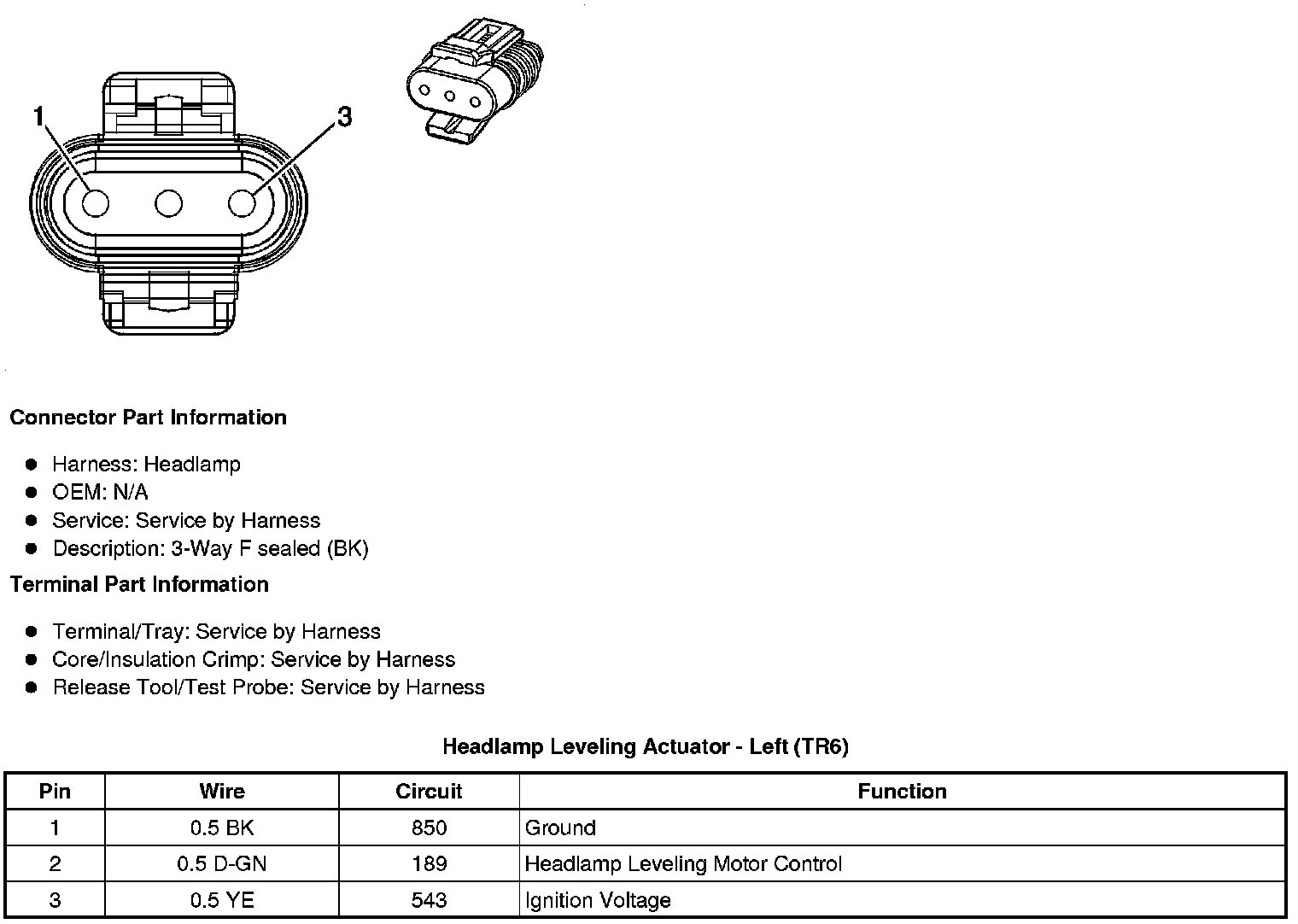

Headlamp Leveling Actuator - Left (TR6)





Headlamp Leveling Actuator - Right (TR6)
