X600

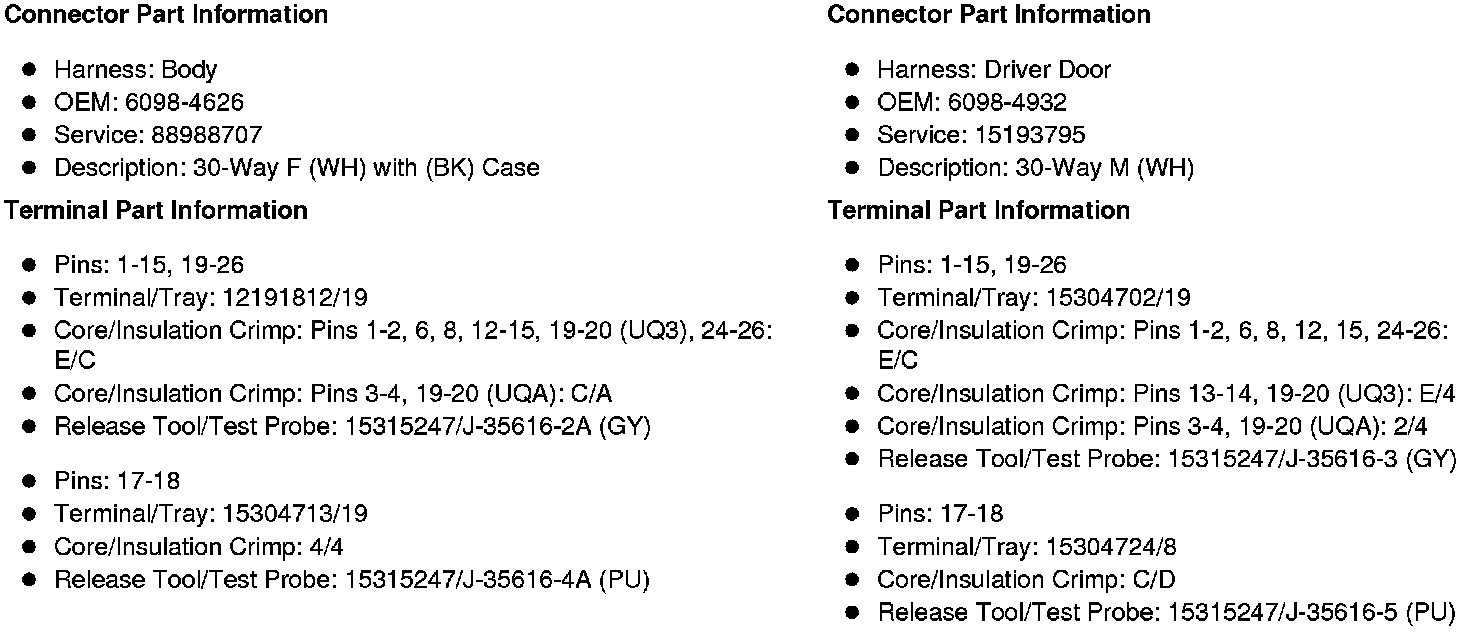

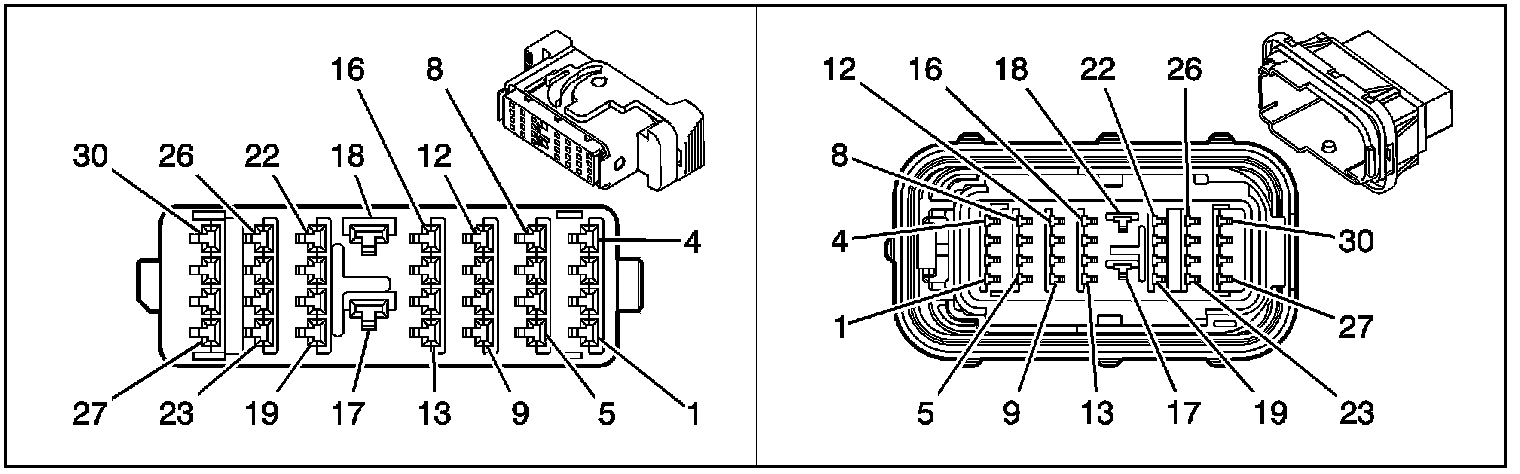

Inline Harness Connector End Views

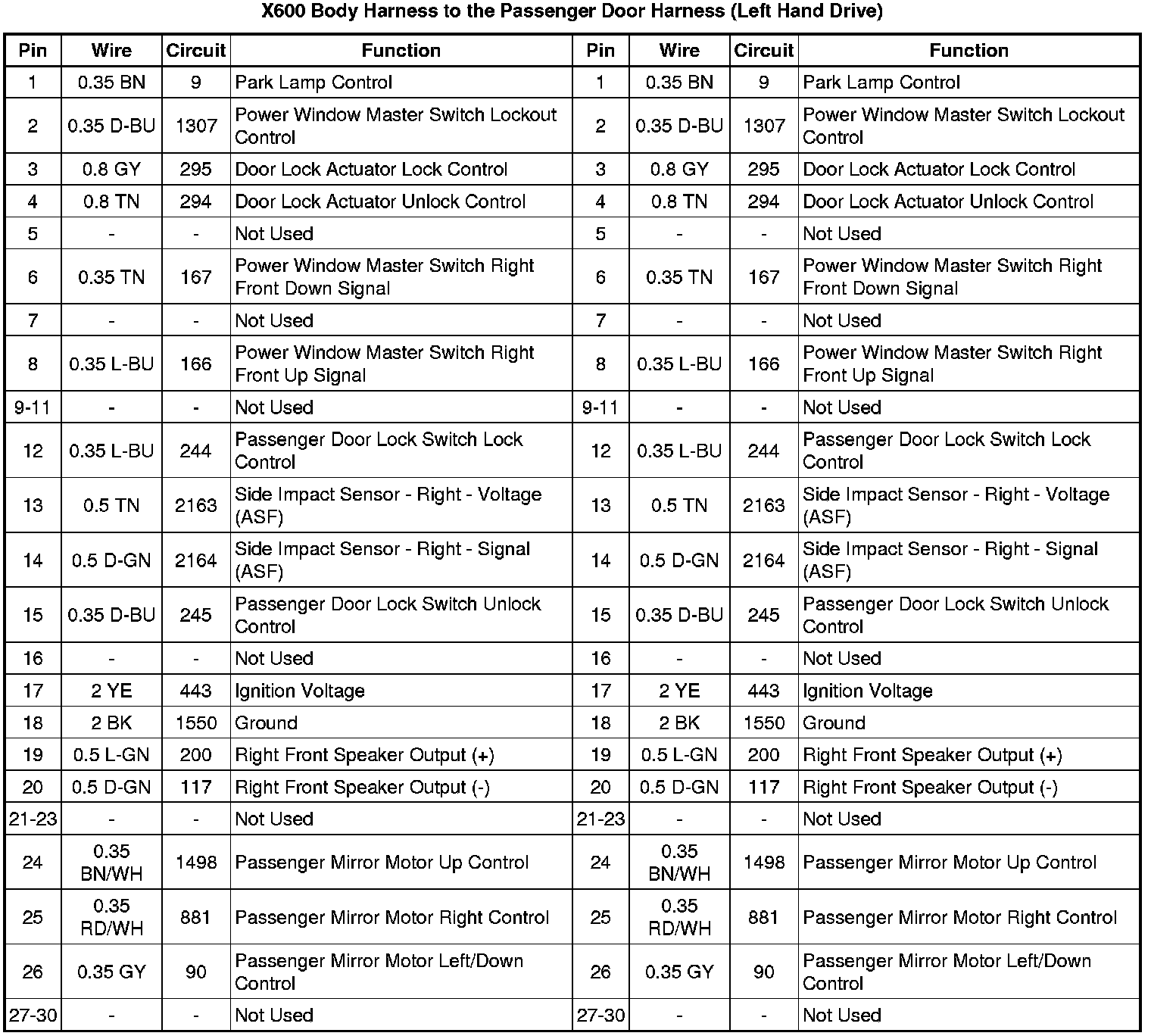

X600 Body Harness to the Passenger Door Harness (Left Hand Drive)

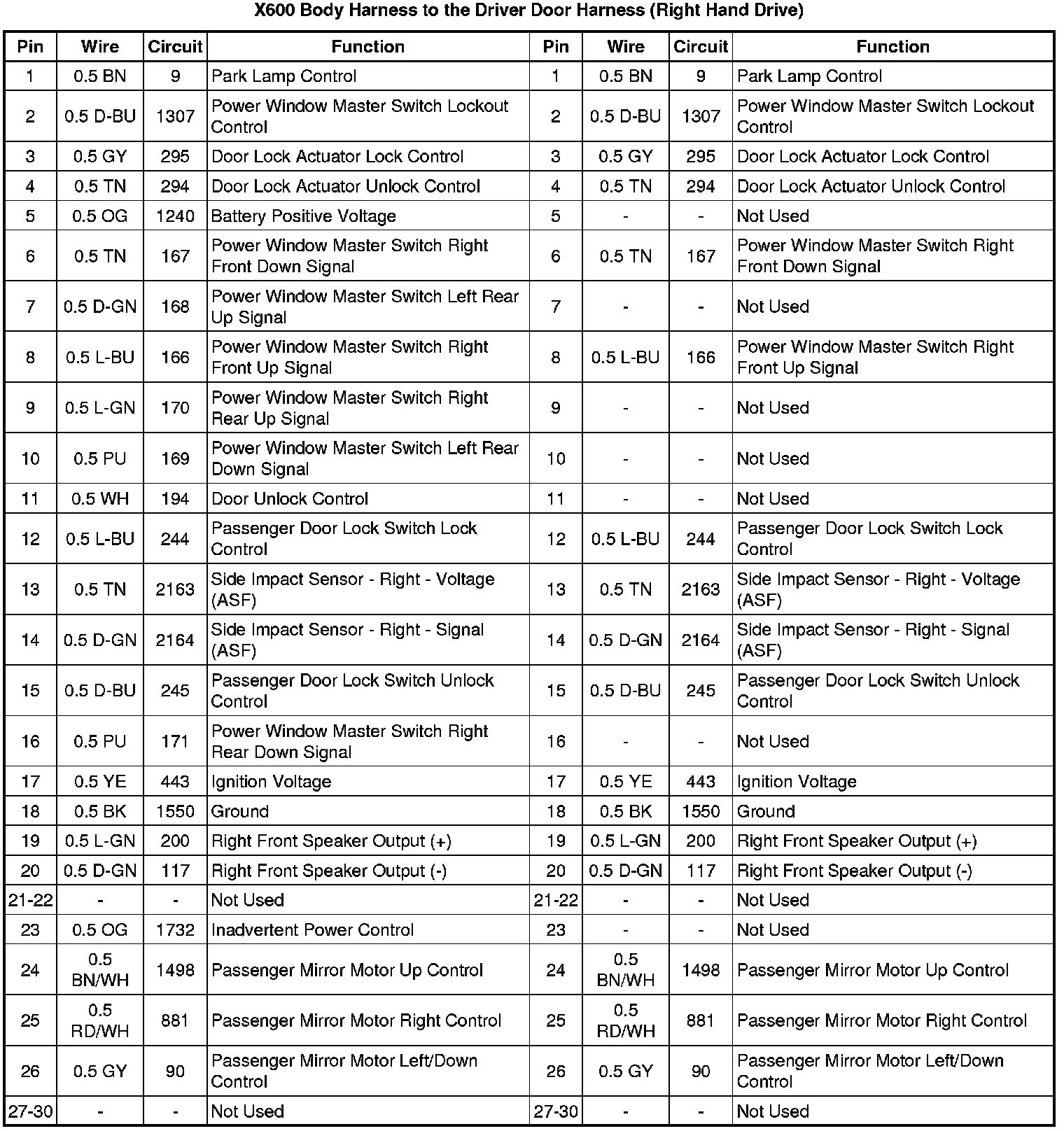

X600 Body Harness to the Driver Door Harness (Right Hand Drive)
