X510
X510
Inline Harness Connector End Views

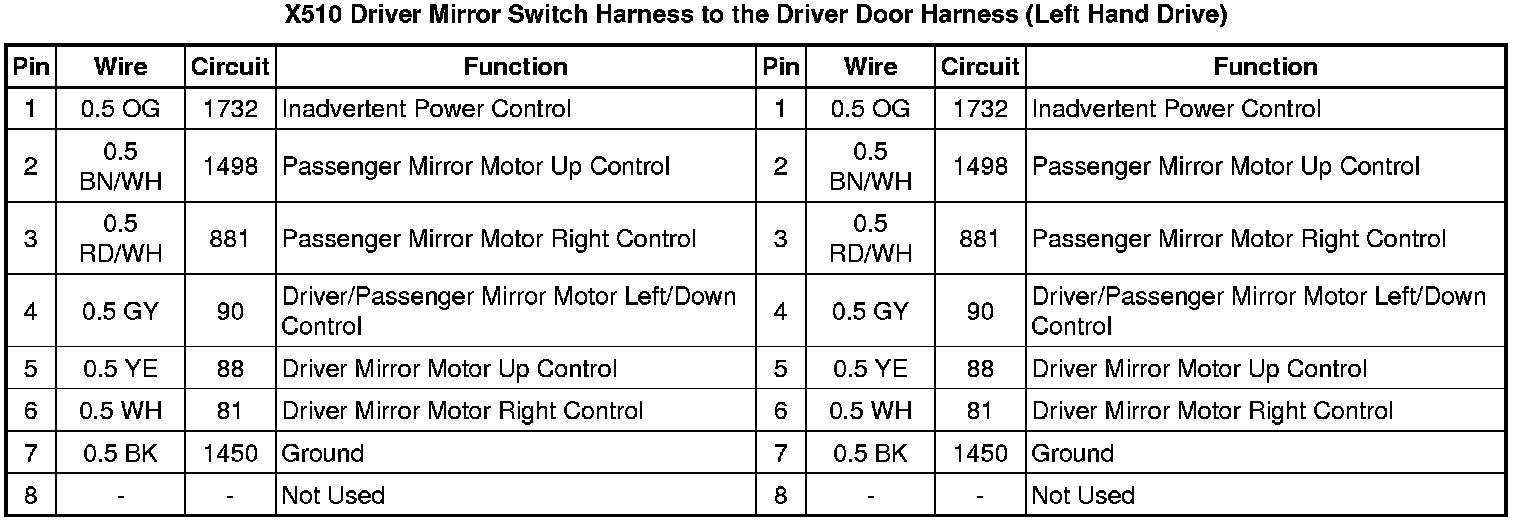

X510 Driver Mirror Switch Harness to the Driver Door Harness (Left Hand Drive)
