X500

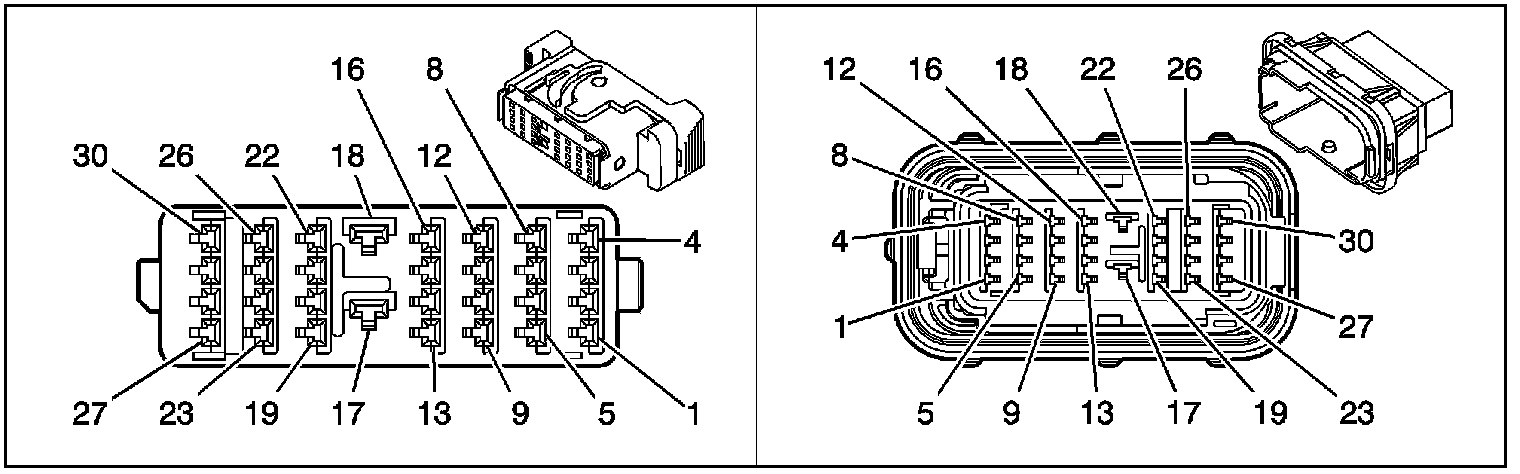

Inline Harness Connector End Views

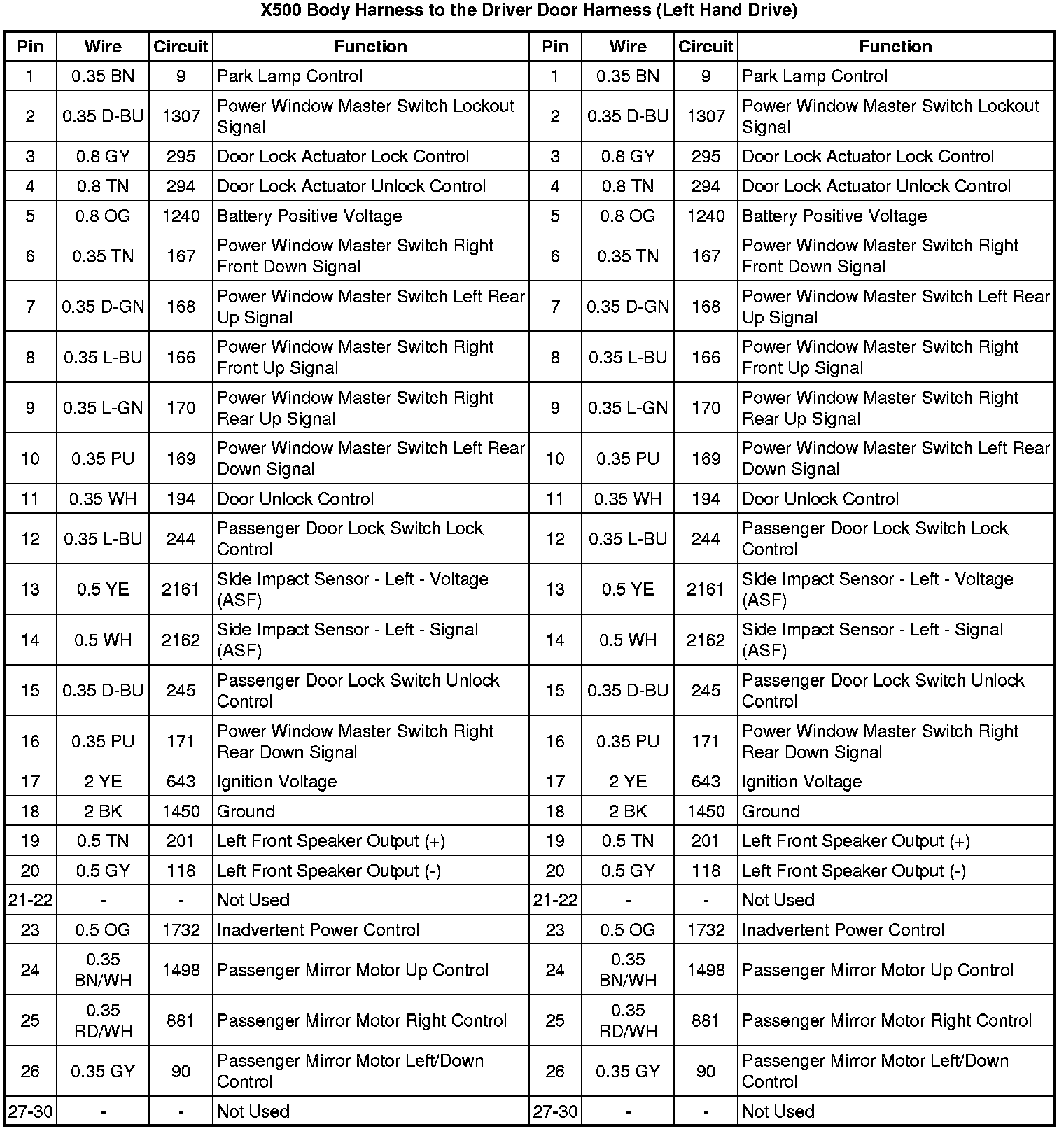

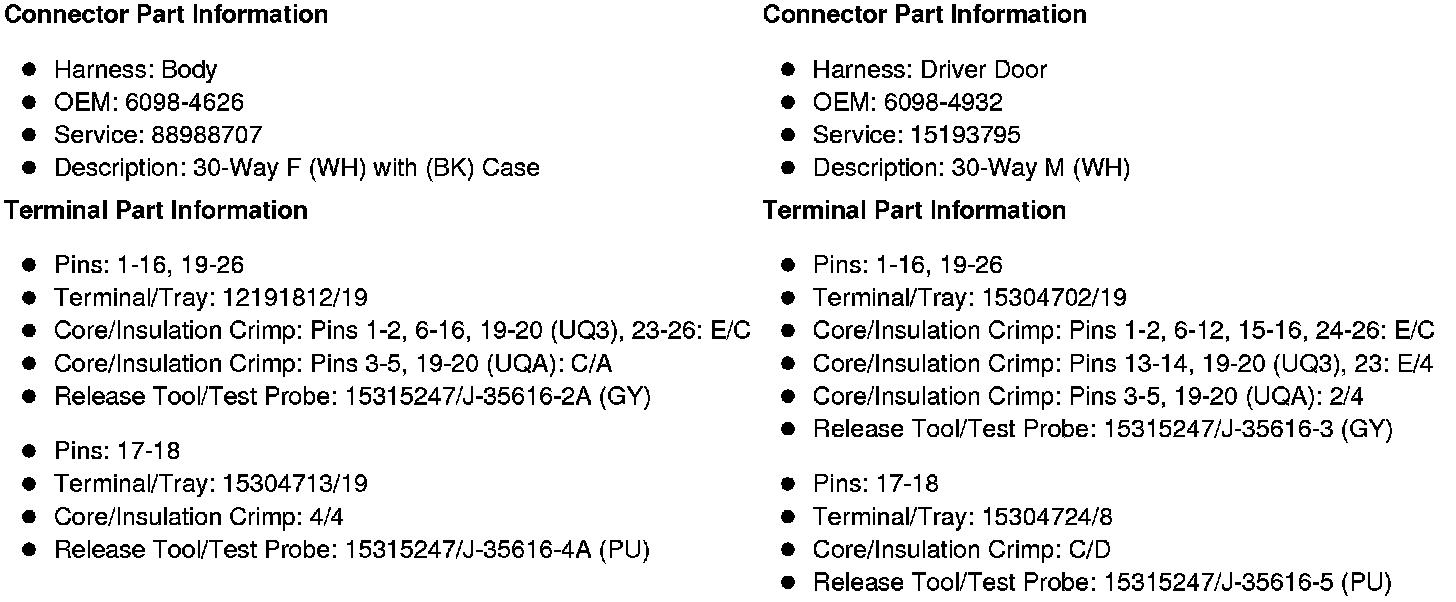

X500 Body Harness to the Driver Door Harness (Left Hand Drive)

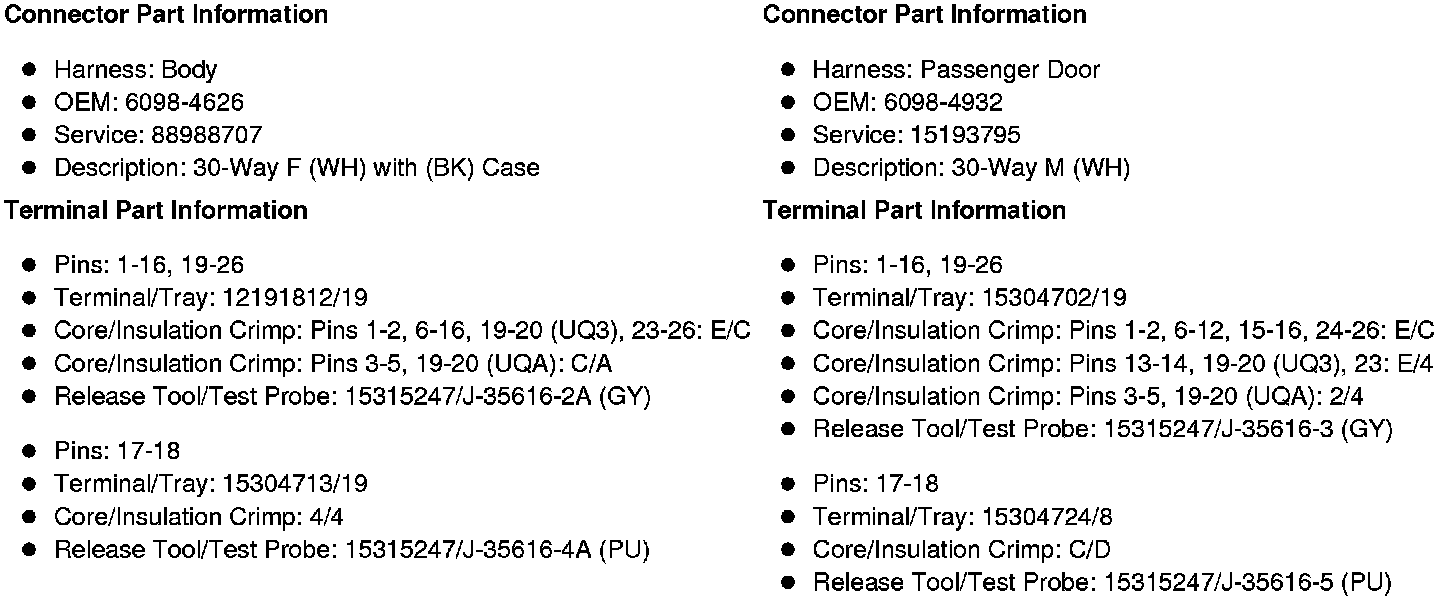

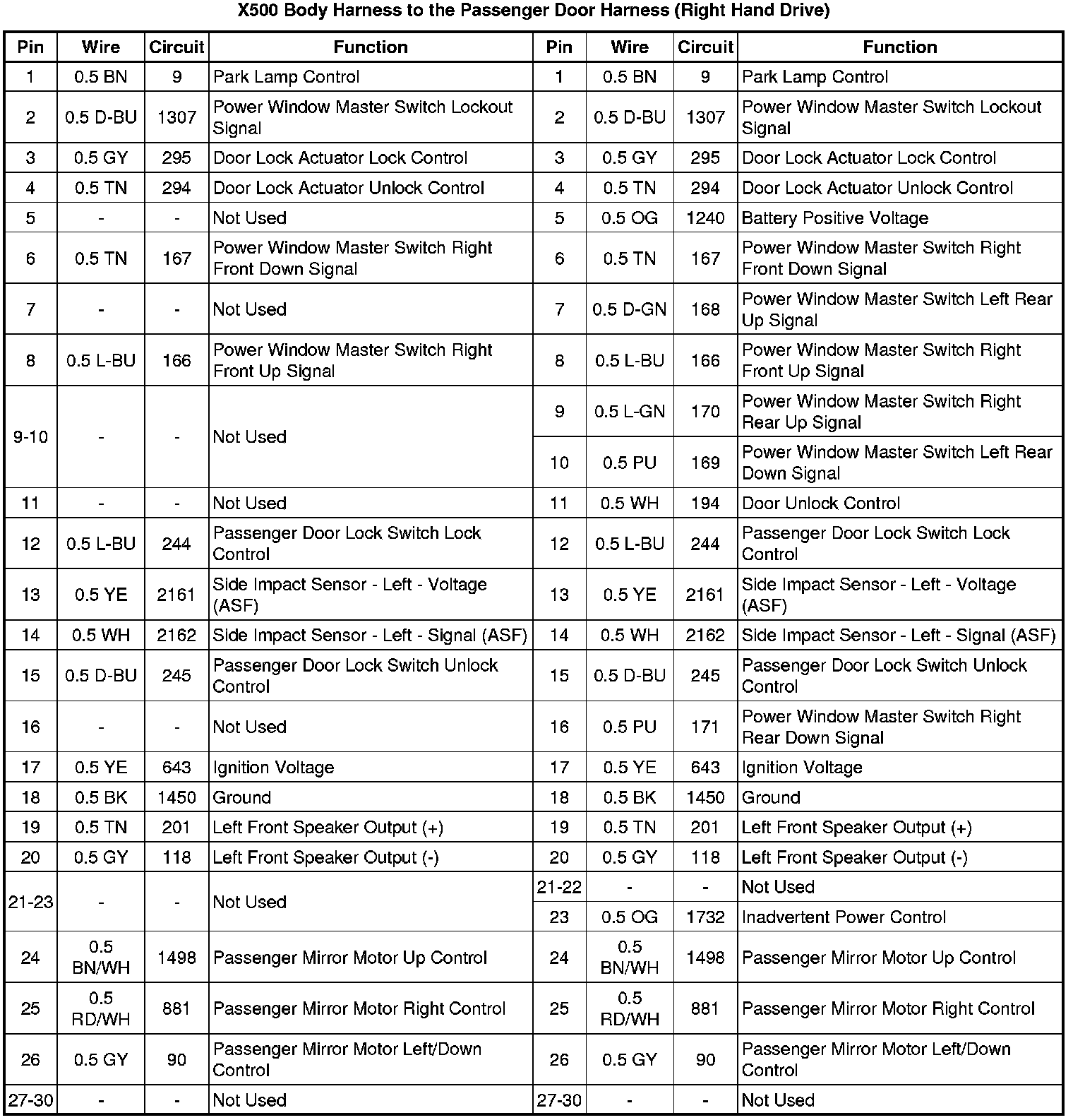

X500 Body Harness to the Passenger Door Harness (Right Hand Drive)
