X420




Inline Harness Connector End Views

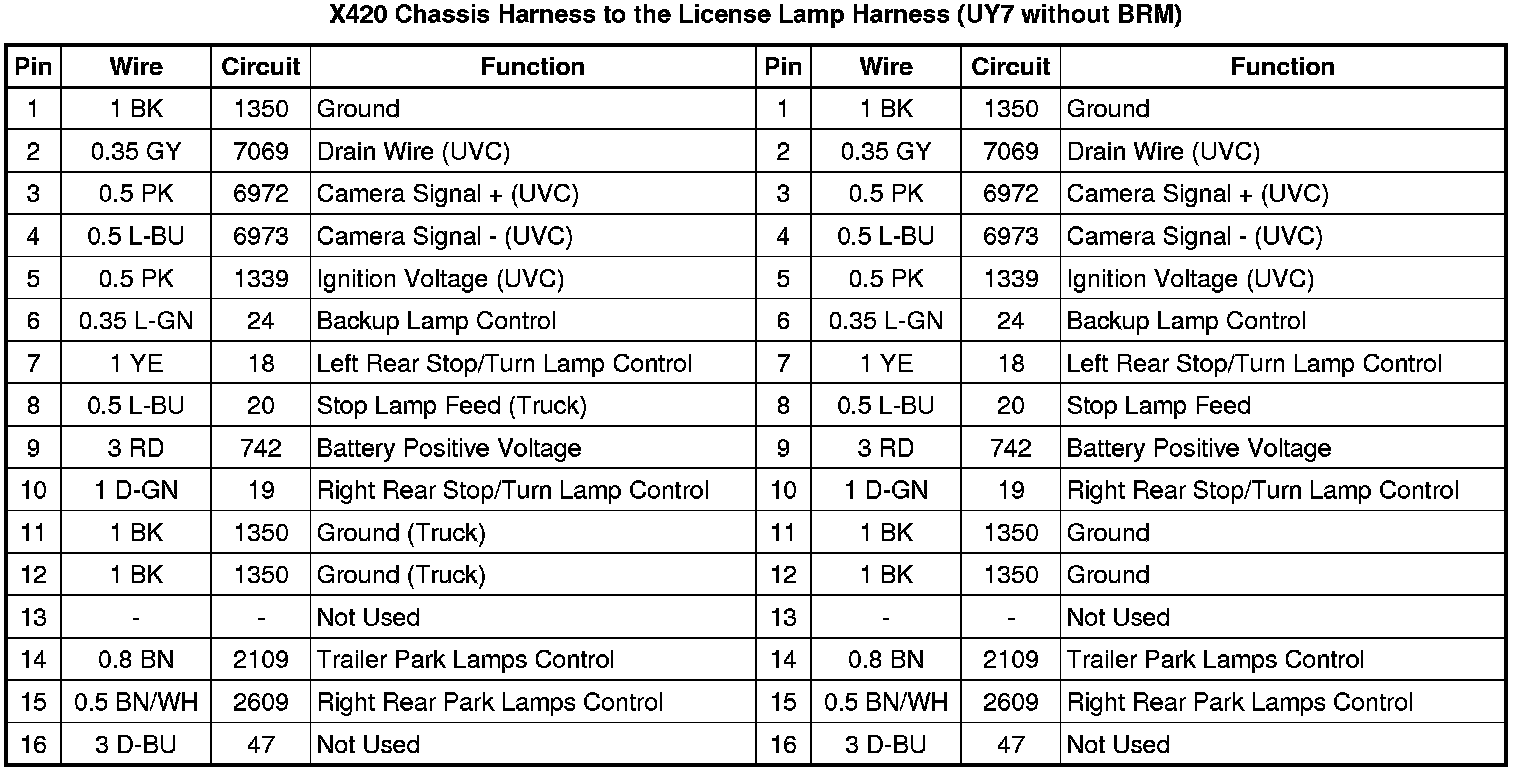

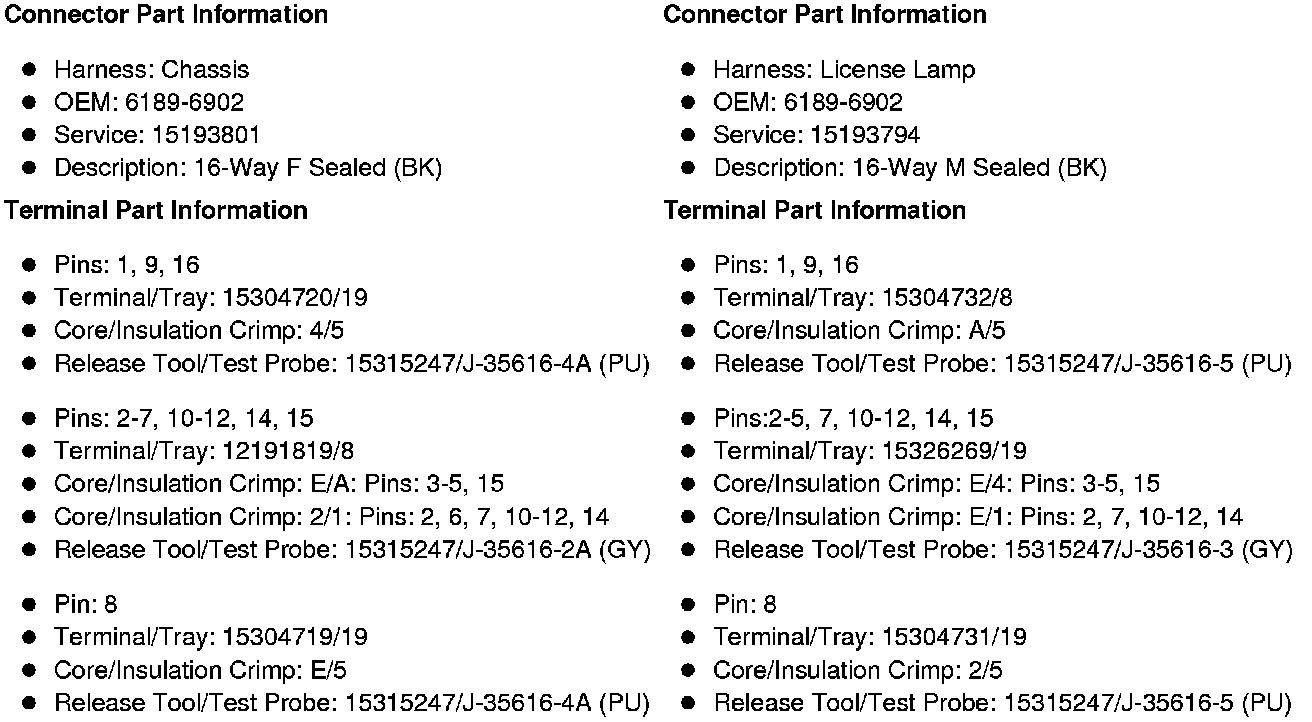

X420 Chassis Harness to the License Lamp Harness (UY7 without BRM)













X420 Chassis Harness to the License Lamp Harness (without BRM or UY7)













X420 Chassis Harness to the License Lamp Harness (BRM)
