X335




Inline Harness Connector End Views

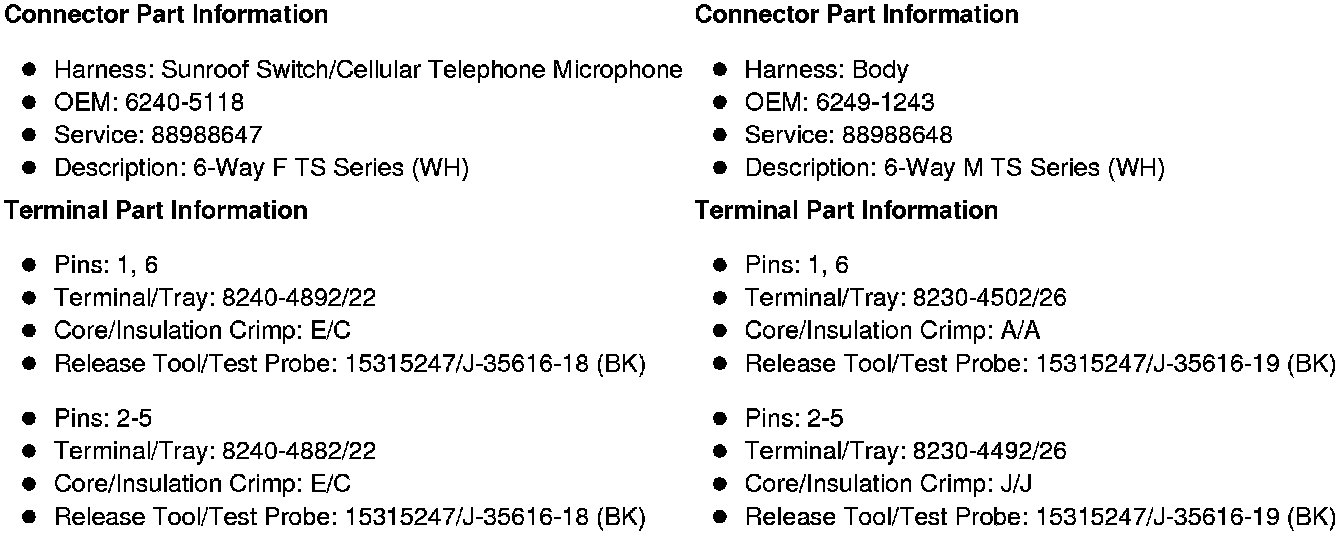

X335 Sunroof Switch/Cellular Telephone Microphone Harness to the Body Harness (CF5 or UE1)
