X201

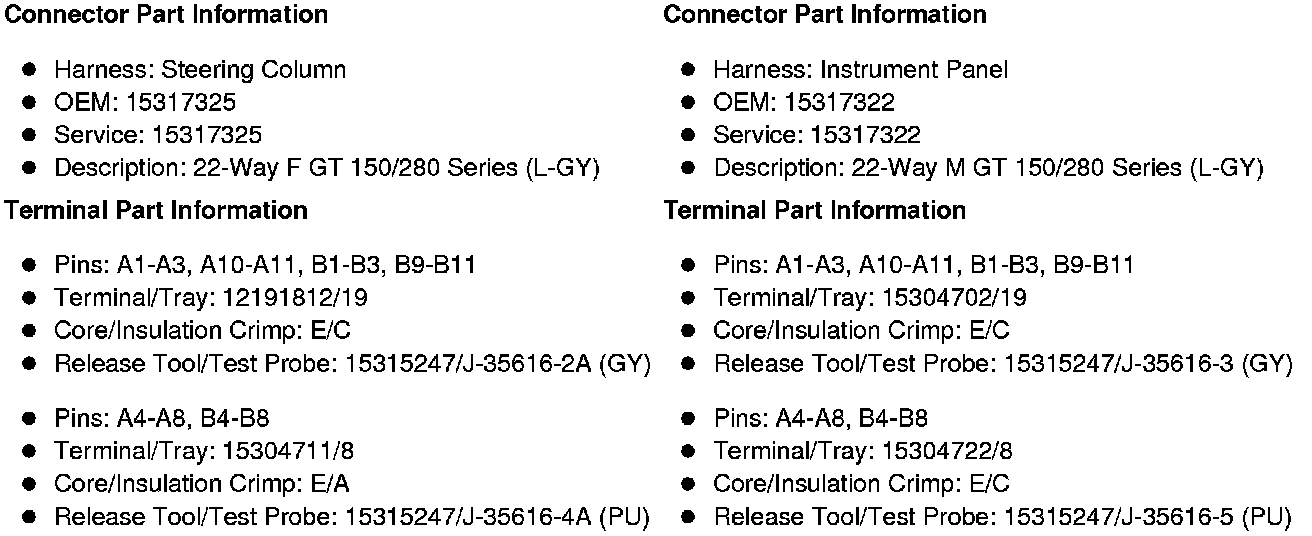

Inline Harness Connector End Views

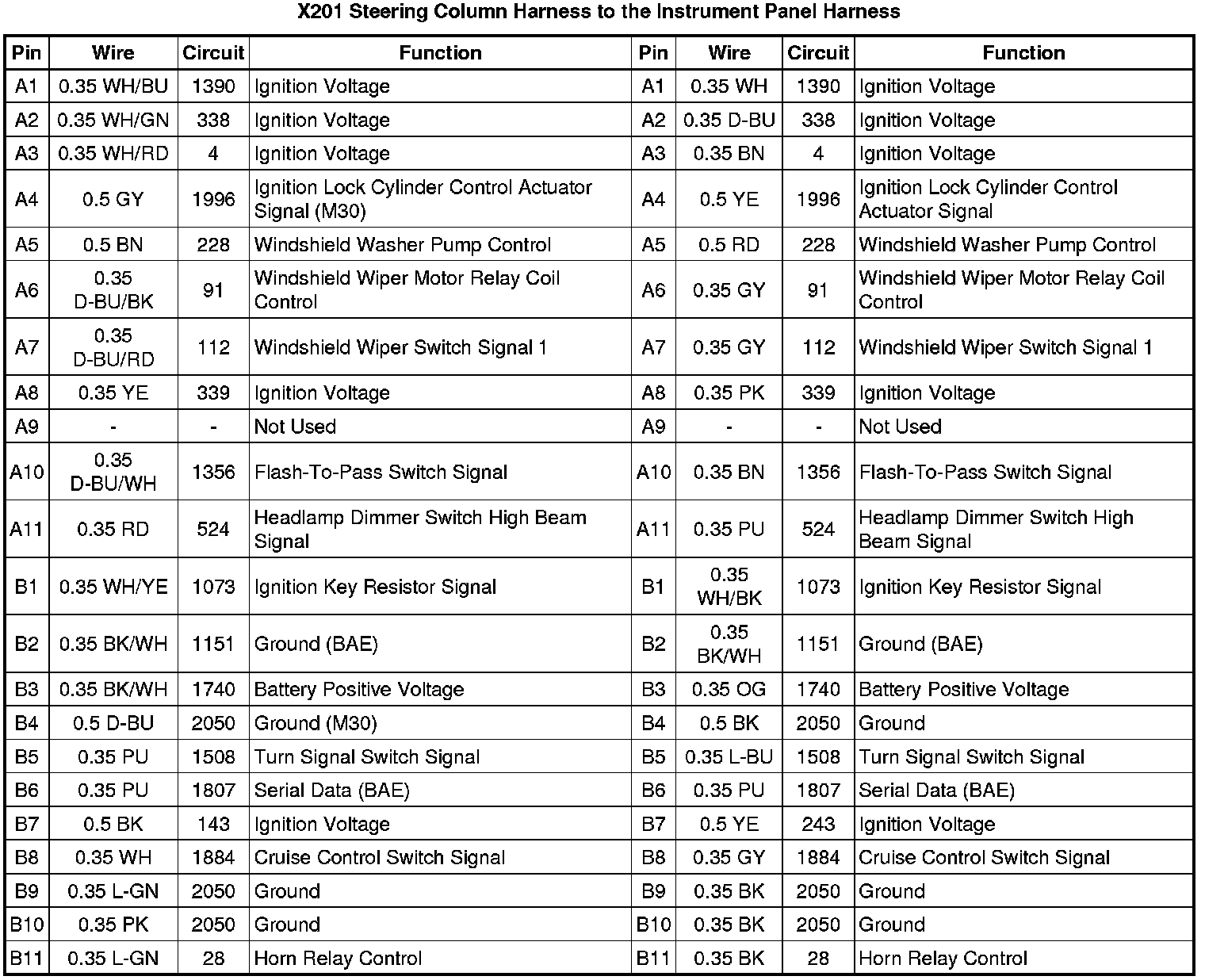

X201 Steering Column Harness to the Instrument Panel Harness
