X175

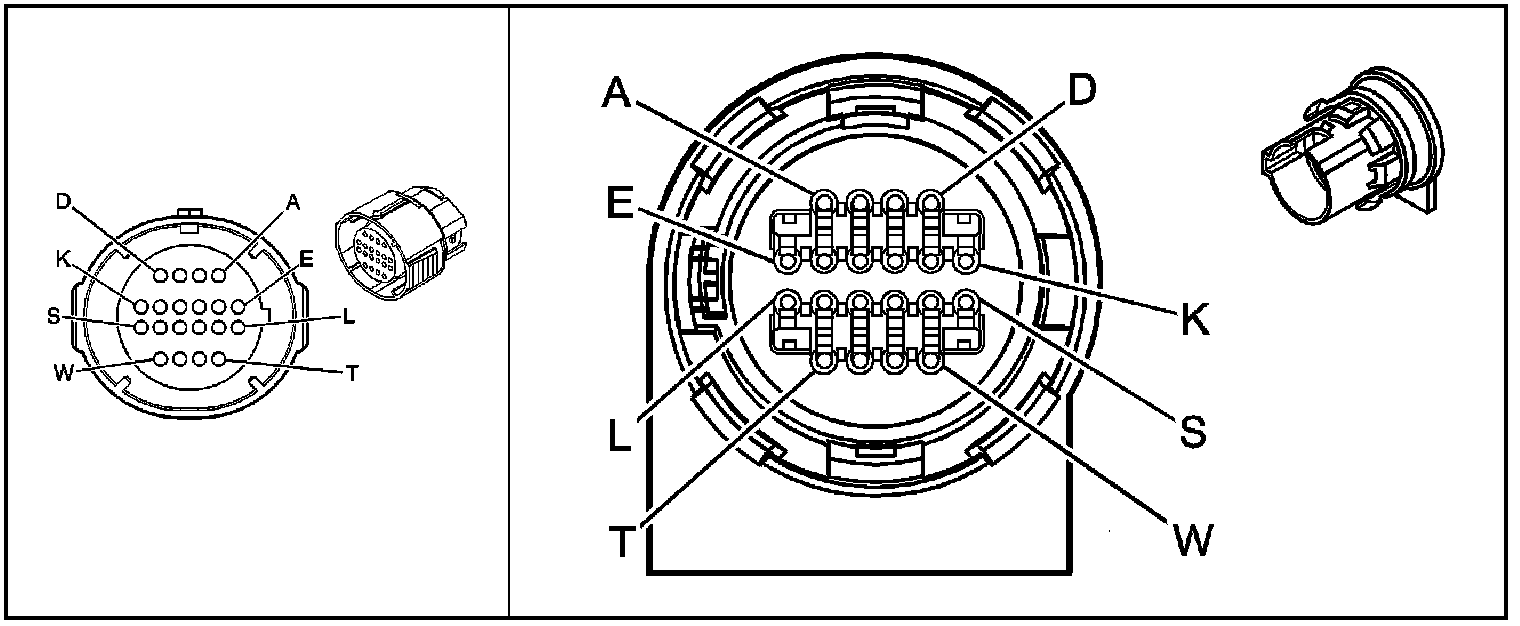

Inline Harness Connector End Views

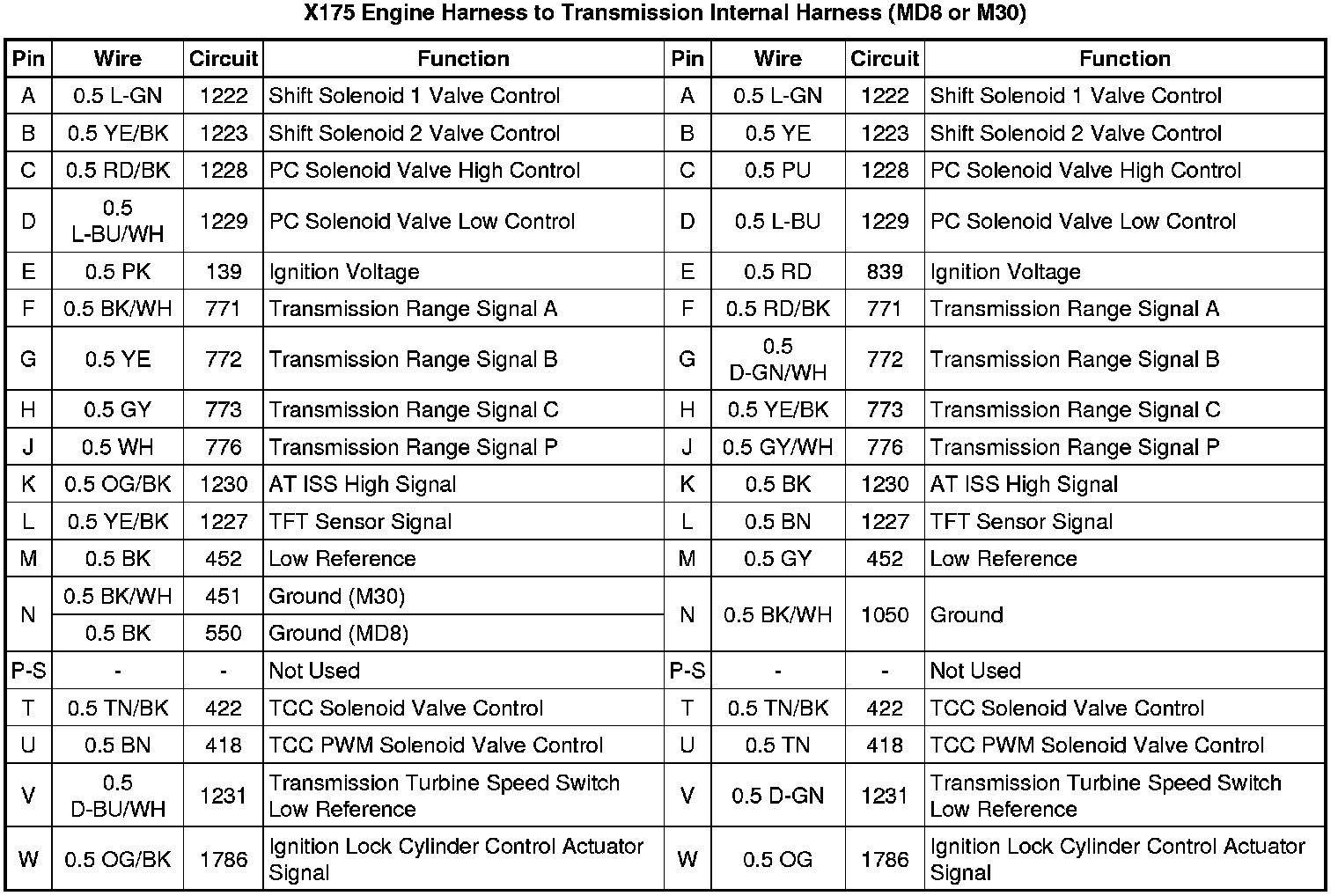

X175 Engine Harness to Transmission Internal Harness (MD8 or M30)
