X125

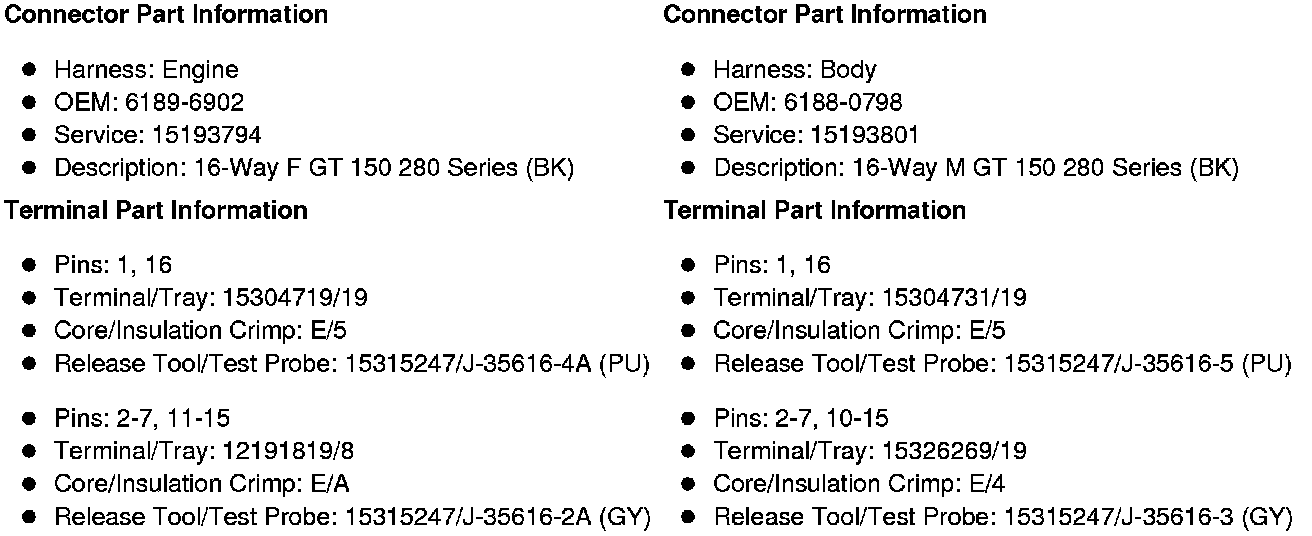

Inline Harness Connector End Views

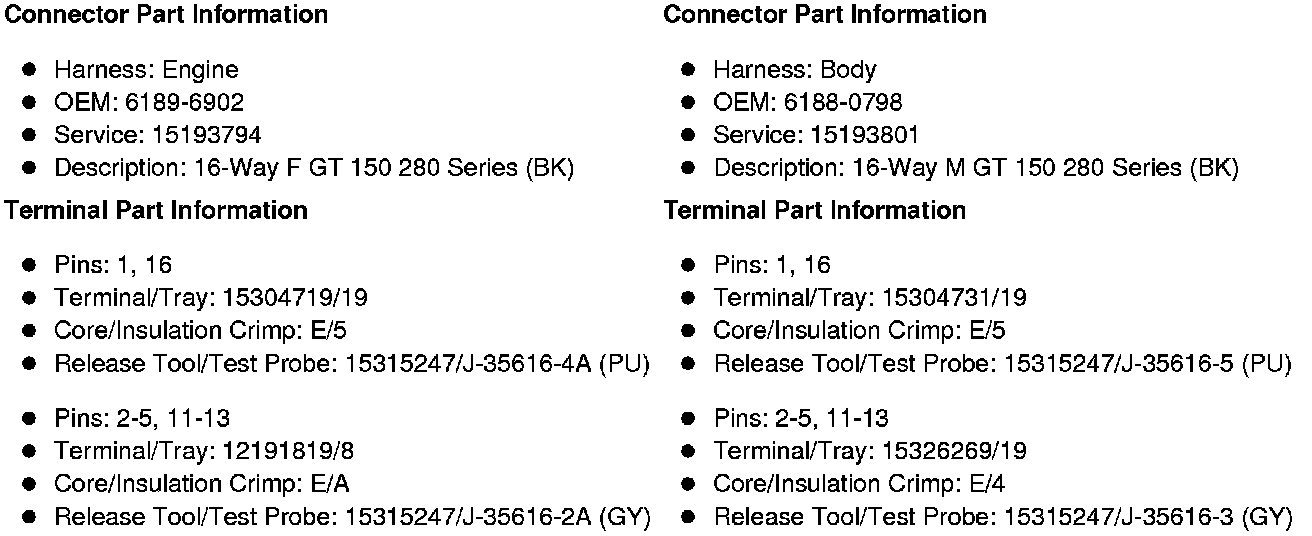

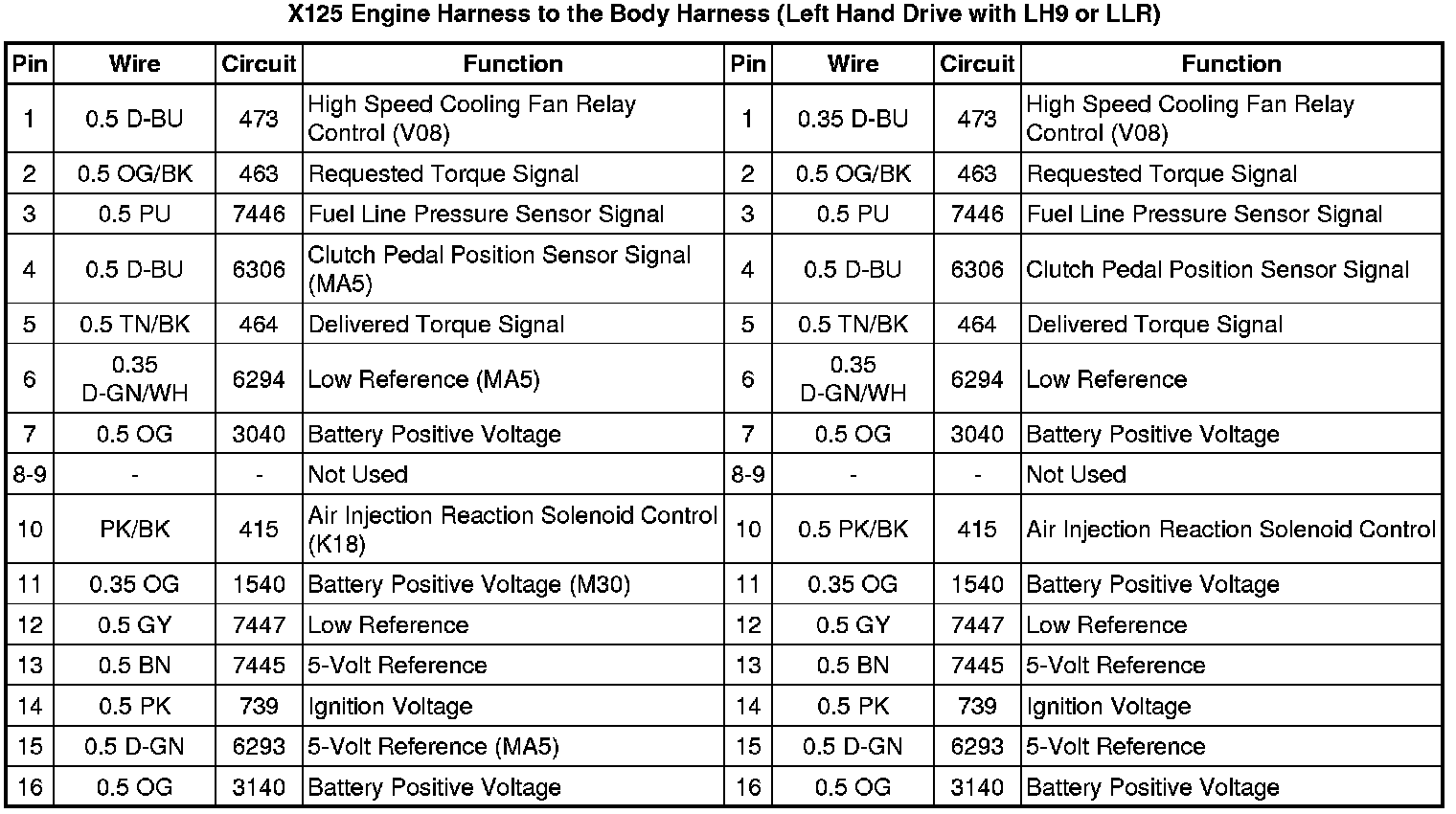

X125 Engine Harness to the Body Harness (Left Hand Drive with LH9 or LLR)

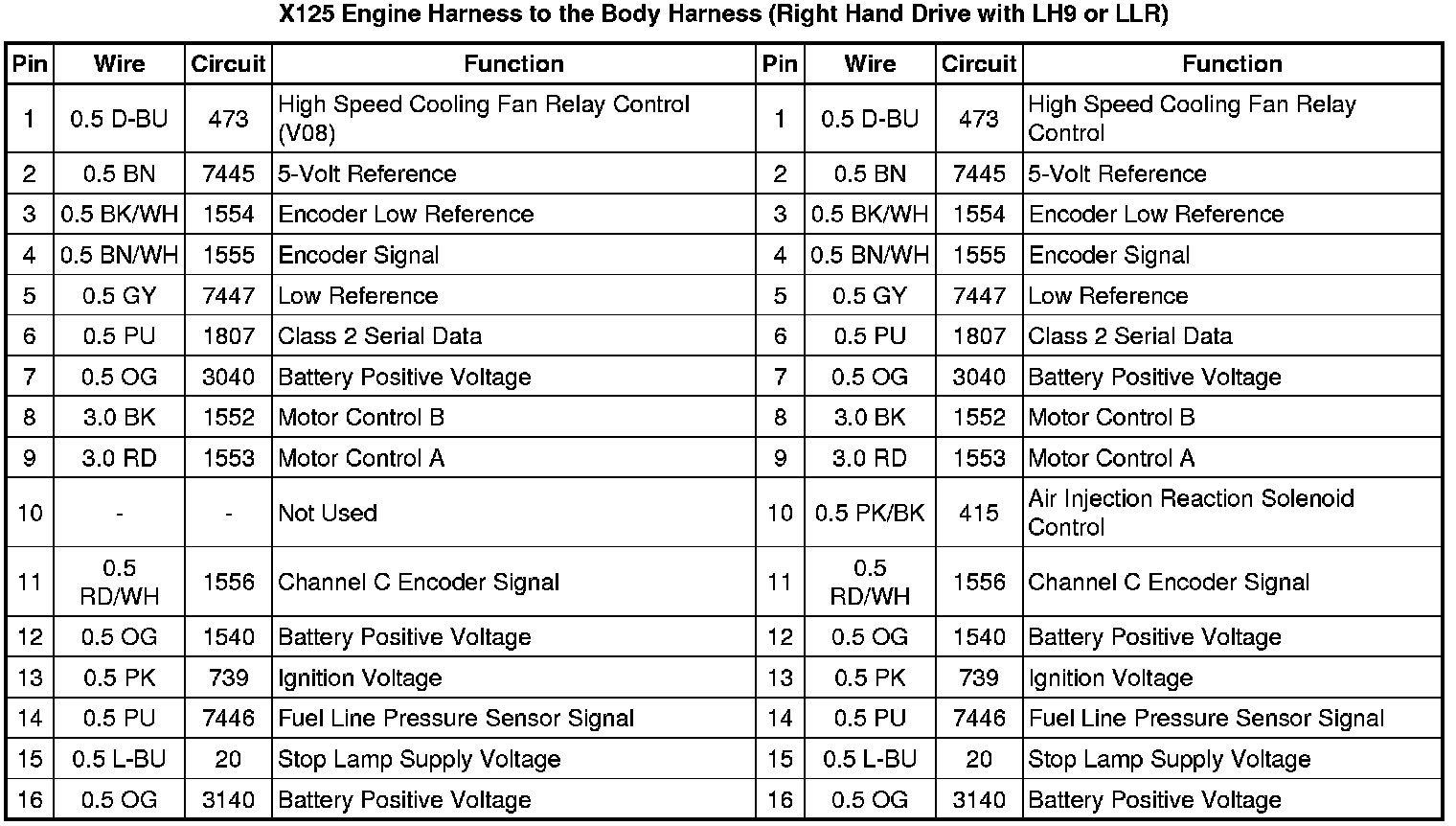

X125 Engine Harness to the Body Harness (Right Hand Drive with LH9 or LLR)
