X115




Inline Harness Connector End Views

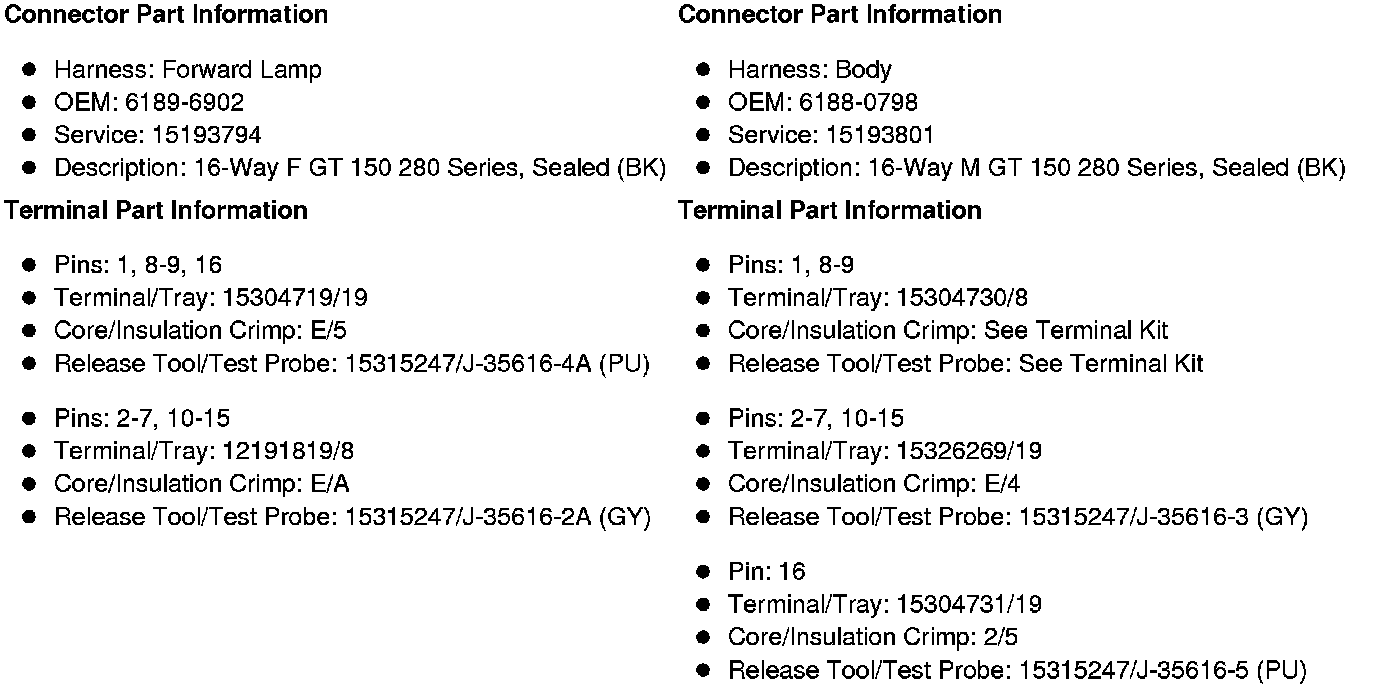

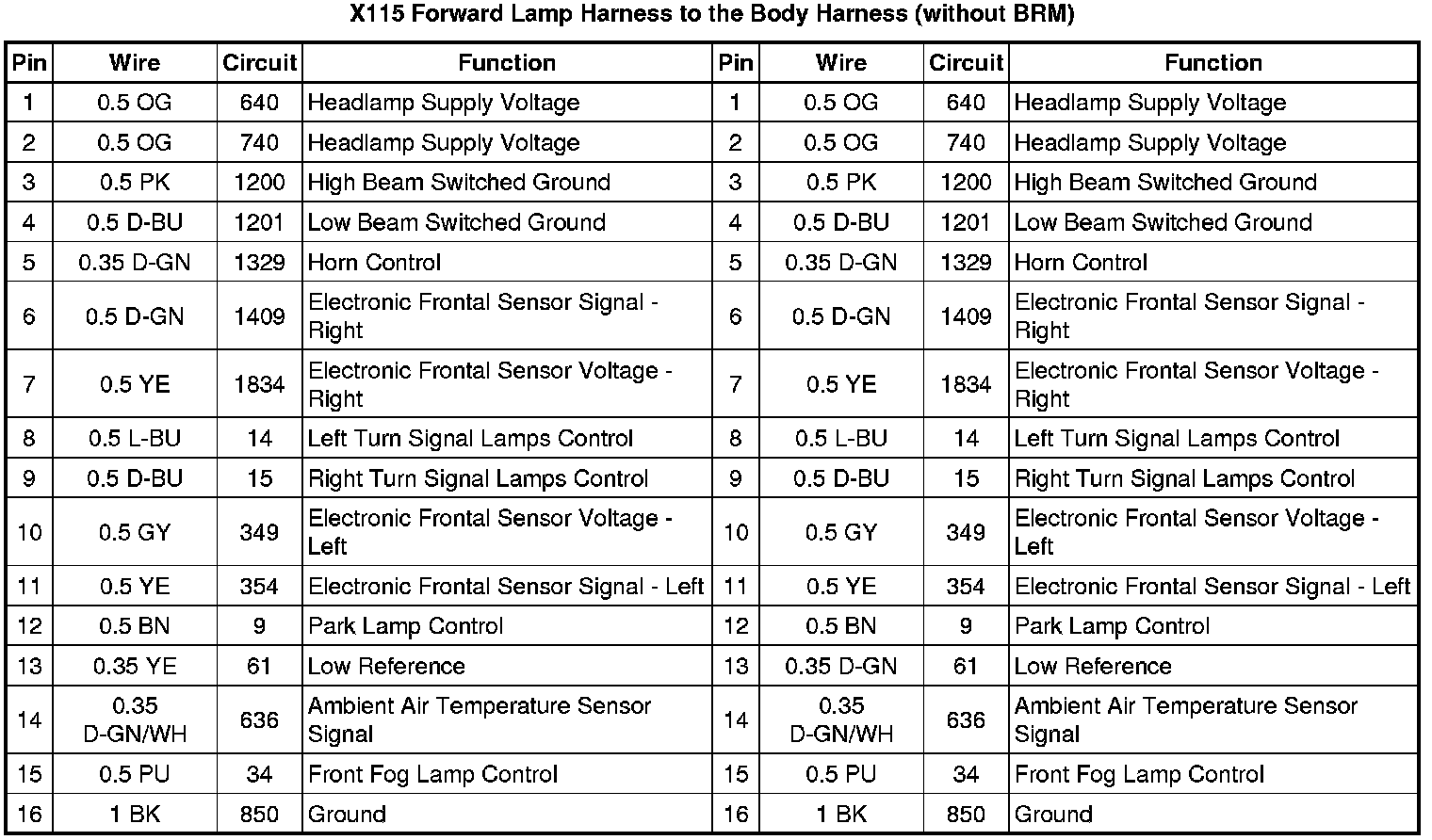

X115 Forward Lamp Harness to the Body Harness (without BRM)

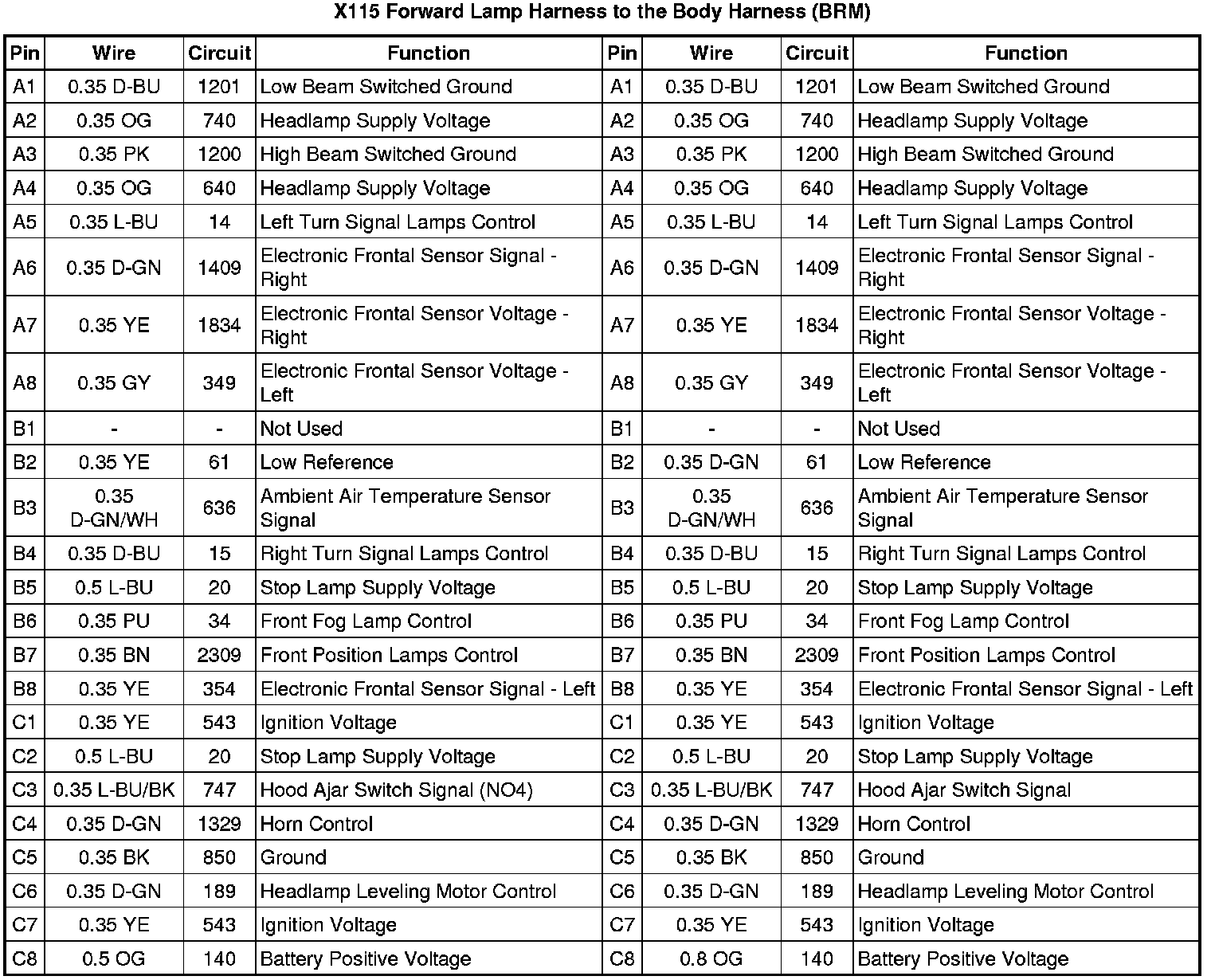

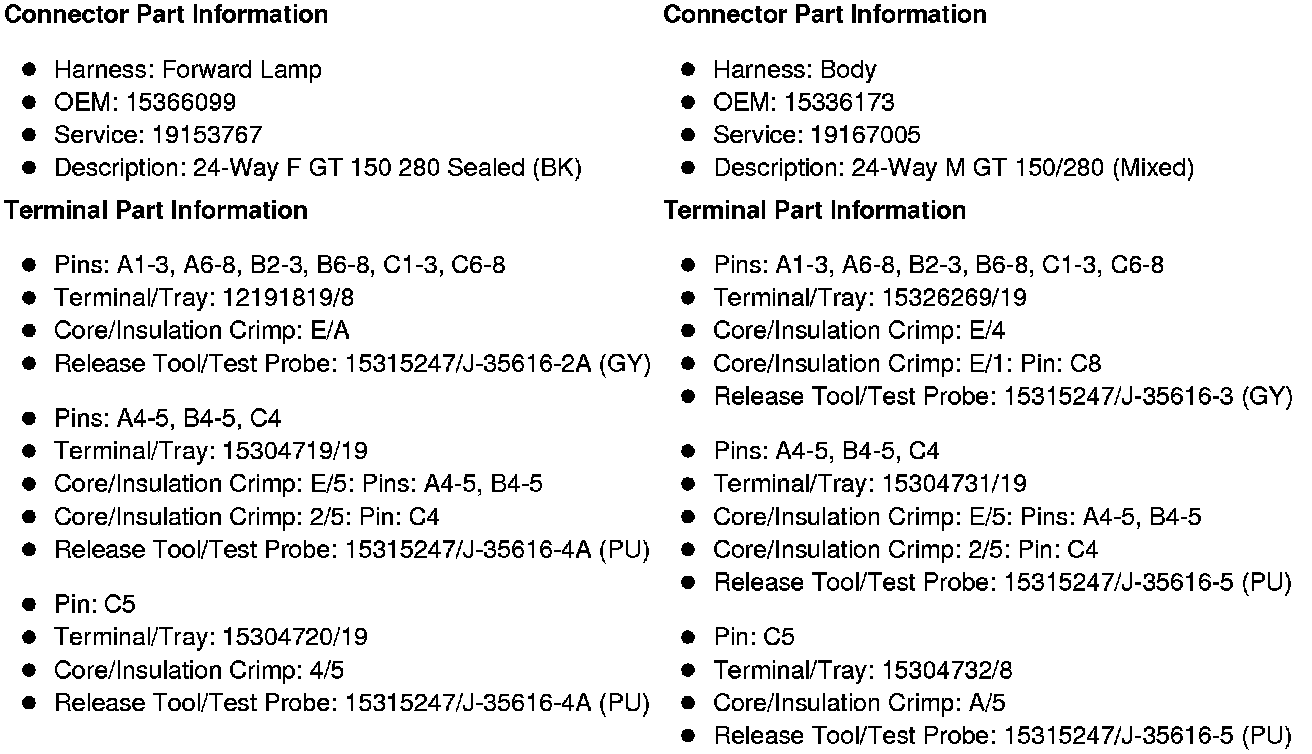

X115 Forward Lamp Harness to the Body Harness (BRM)
