X102




Inline Harness Connector End Views

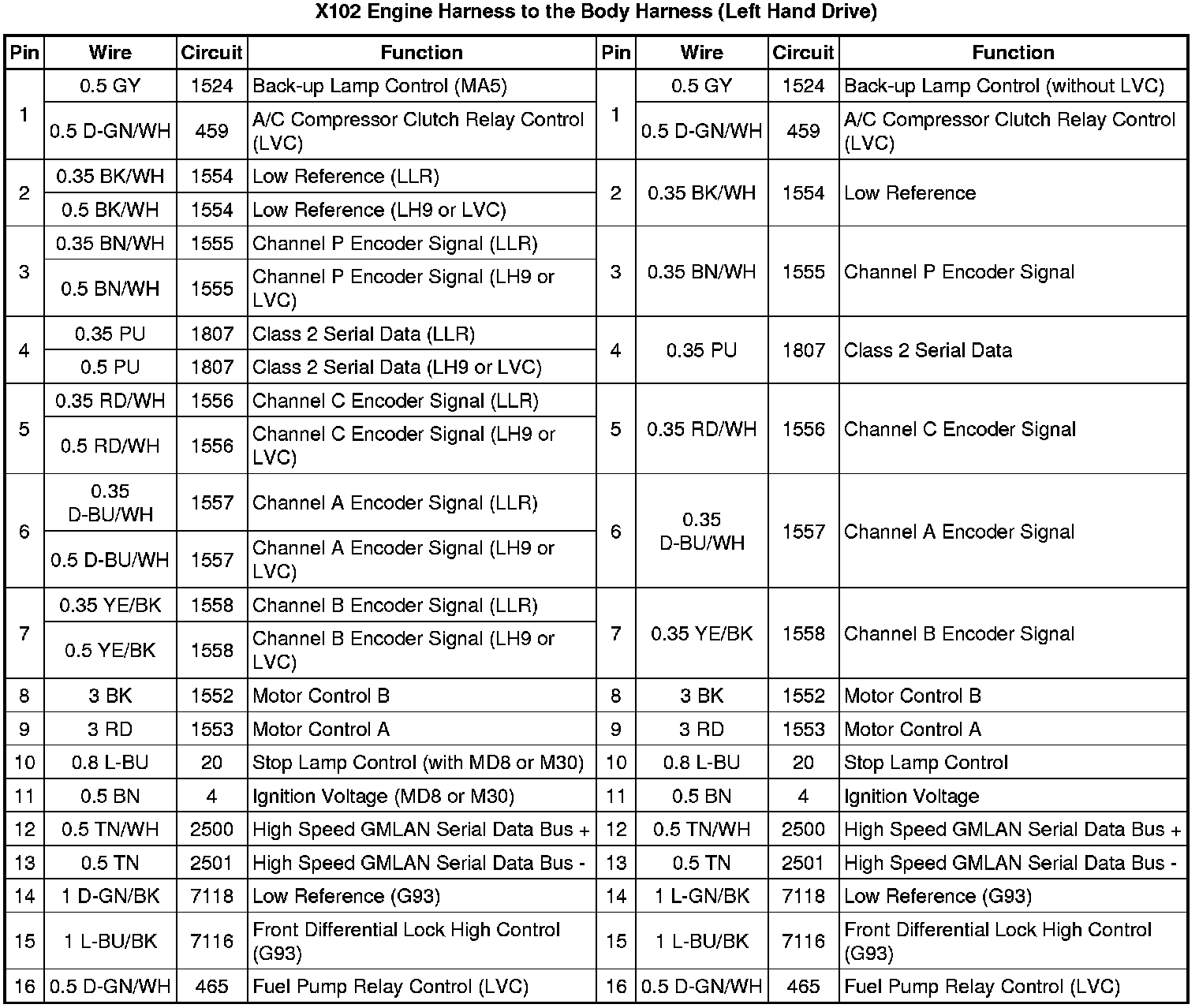

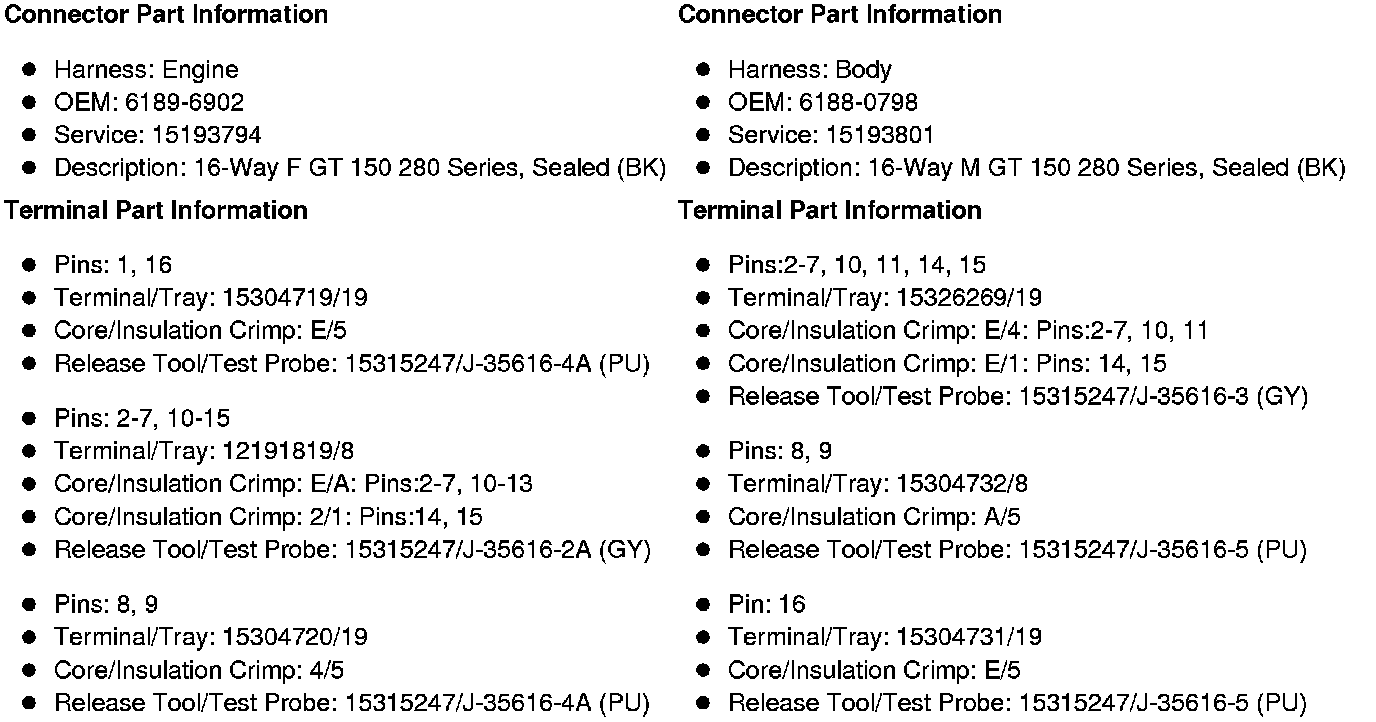

X102 Engine Harness to the Body Harness (Left Hand Drive)

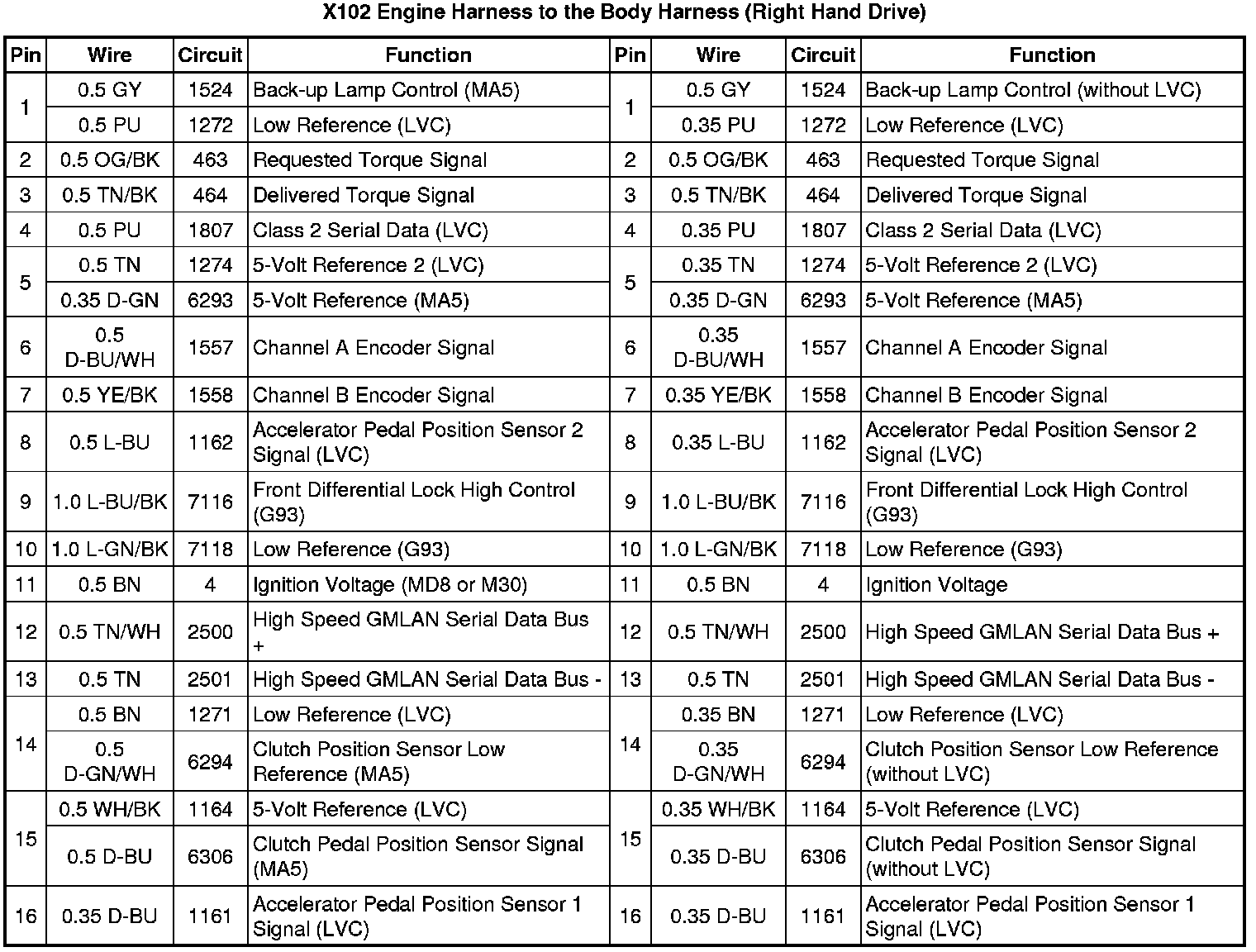

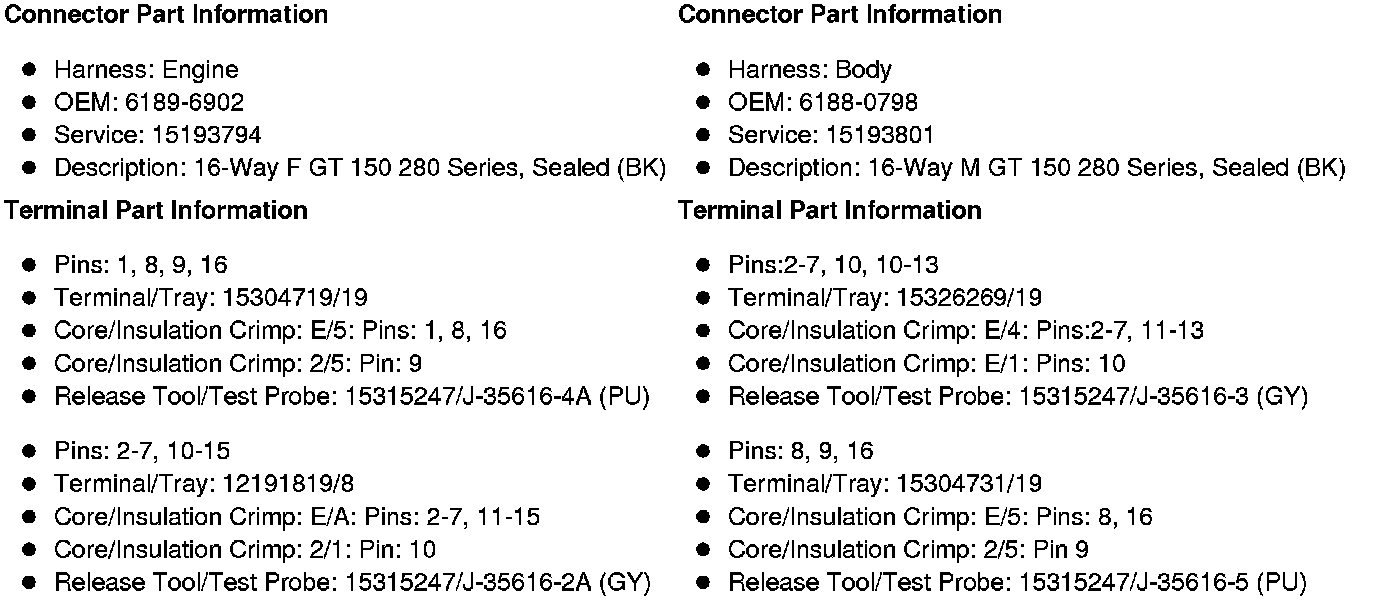

X102 Engine Harness to the Body Harness (Right Hand Drive)
