Air Injection Vacuum Control Solenoid Valve
Air Injection Vacuum Control Solenoid Valve

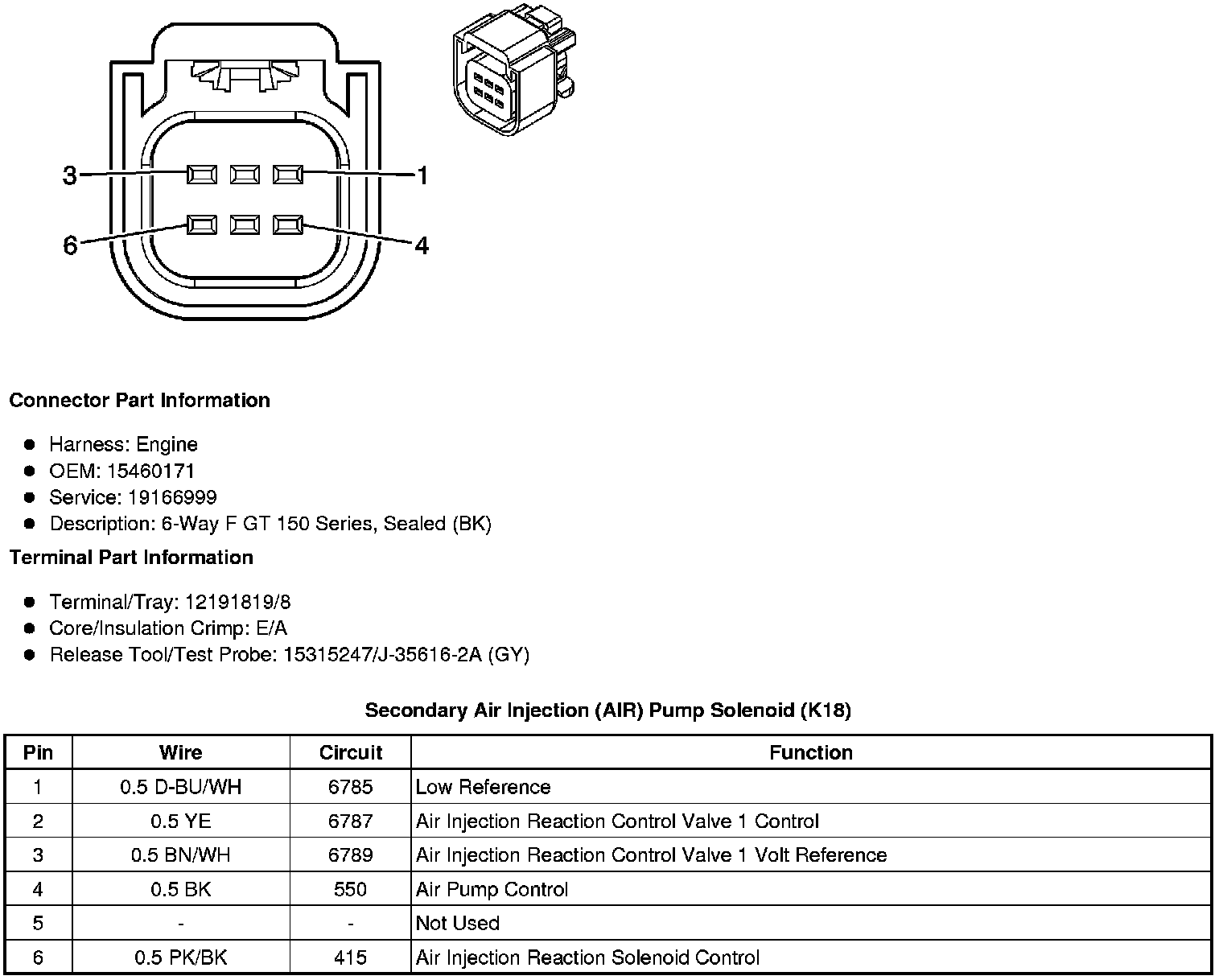

Component Connector End Views
Secondary Air Injection (AIR) Pump Solenoid (K18)
