Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement

Removal Procedure

1. Remove the power steering pump. Refer to Power Steering Pump Replacement (LH9) (Service and Repair)Power Steering Pump Replacement (LLR) (Service and Repair).
2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (Service and Repair).

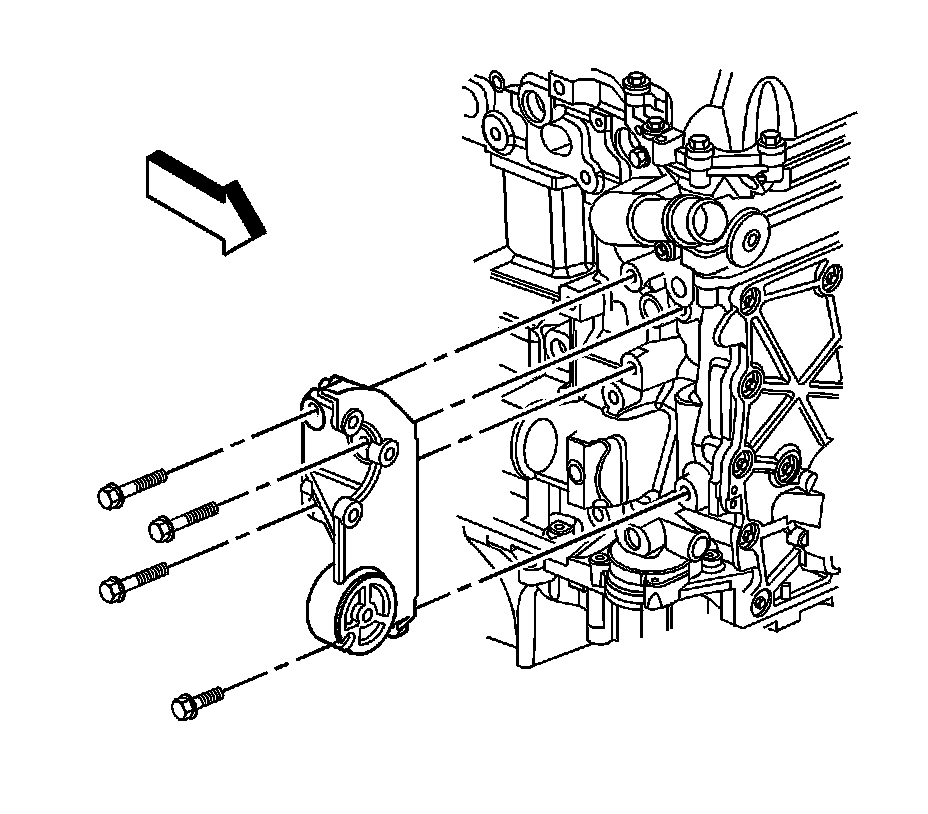

3. Remove the power steering pump bracket bolts.
4. Remove the power steering pump bracket.

Installation Procedure




1. Install the power steering pump bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the power steering pump bracket bolts.

Tighten the bolts to 50 Nm (37 lb ft).

3. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (Service and Repair).
4. Install the power steering pump. Refer to Power Steering Pump Replacement (LH9) (Service and Repair)Power Steering Pump Replacement (LLR) (Service and Repair).
