H3 Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Displays And Gauges
>>
Schematic and Routing Diagrams
>>
Instrument Cluster Schematics
Instrument Cluster Schematics

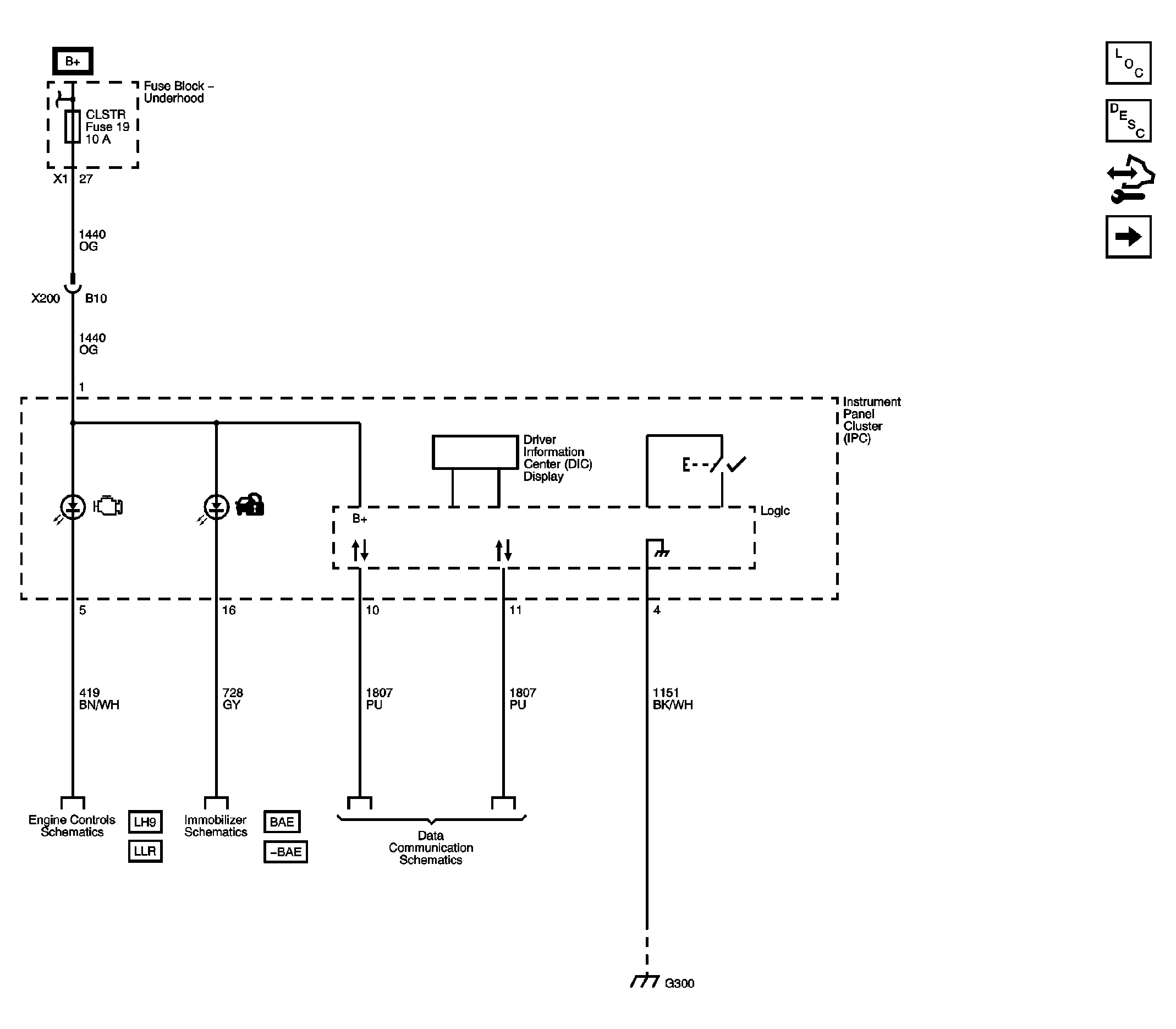

Fig 1: Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

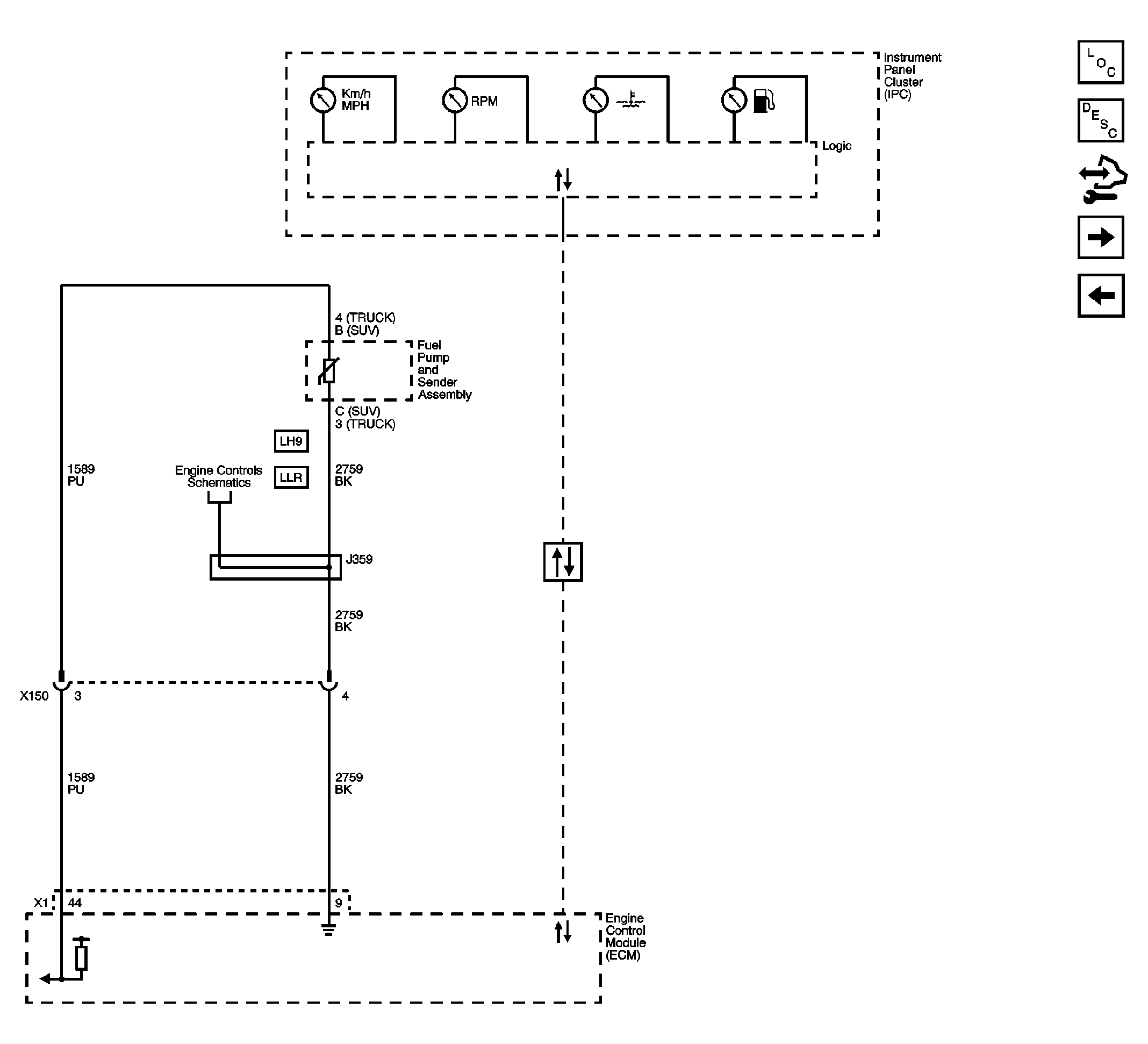

Fig 2: Gauges
Courtesy of GENERAL MOTORS CORP.

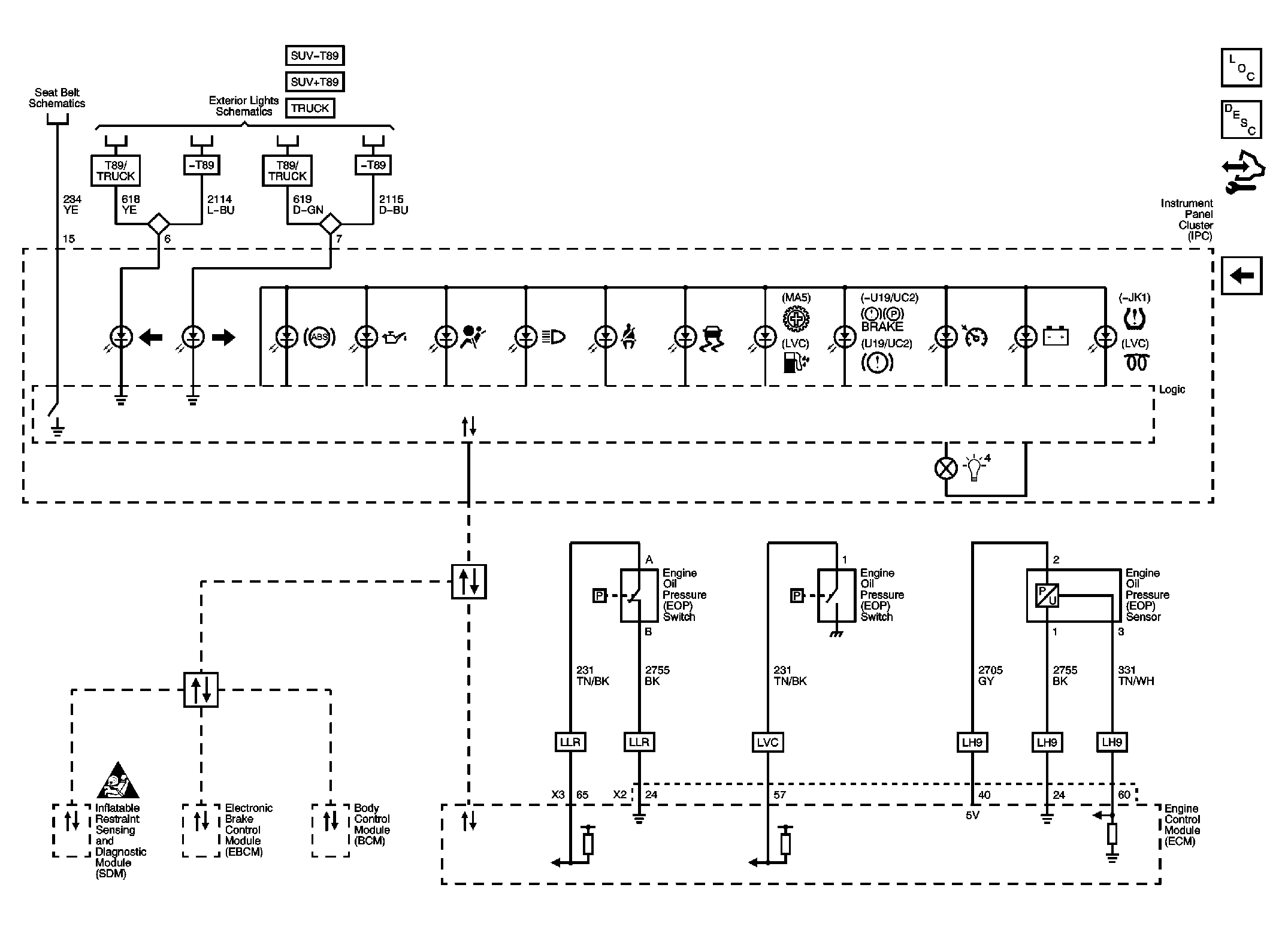

Fig 3: Indicators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
