Power Distribution Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

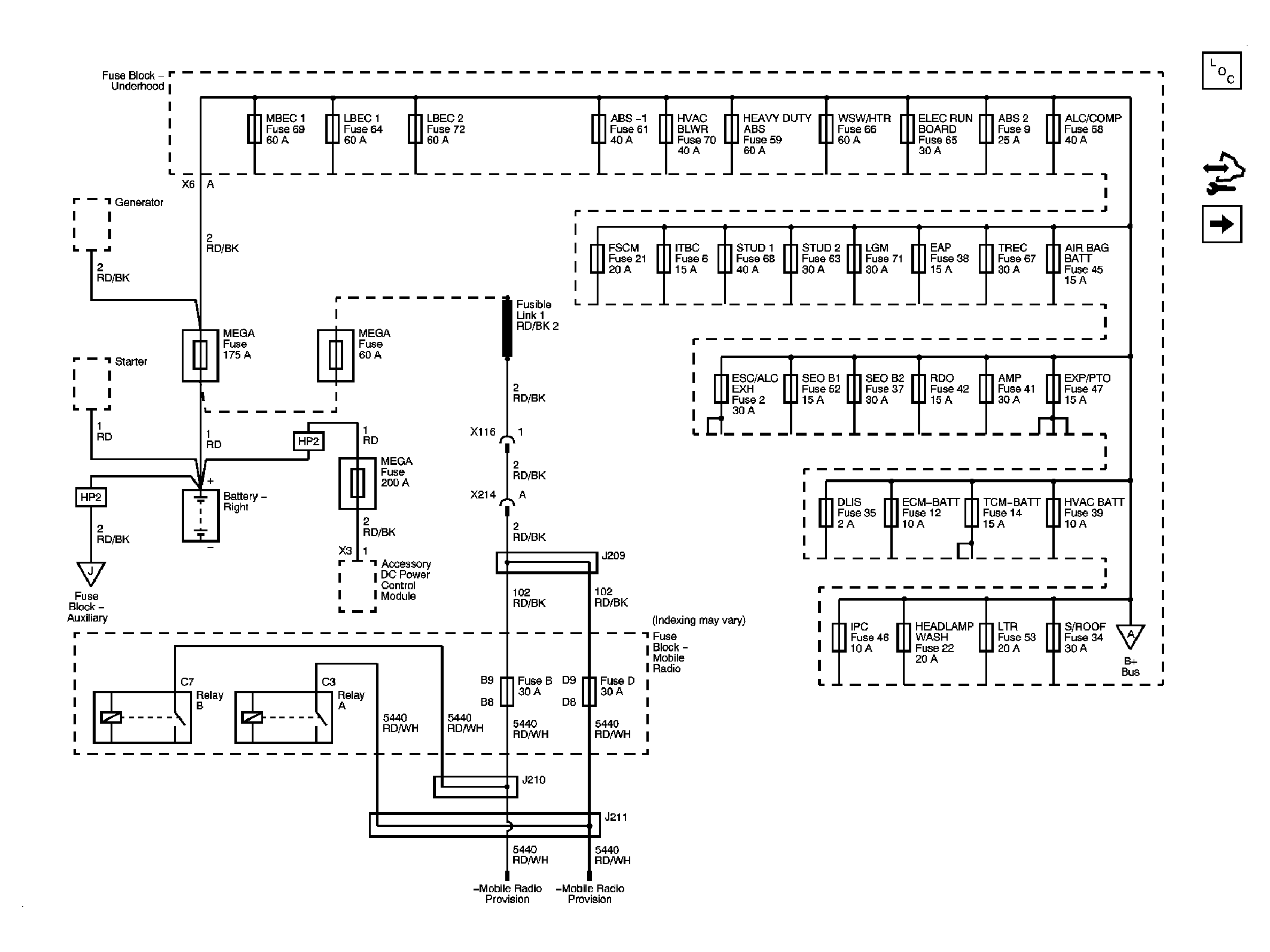

Fig 1: B+ Bus Schematic - 1 Of 3

GM1906702

Courtesy of GENERAL MOTORS CORP.

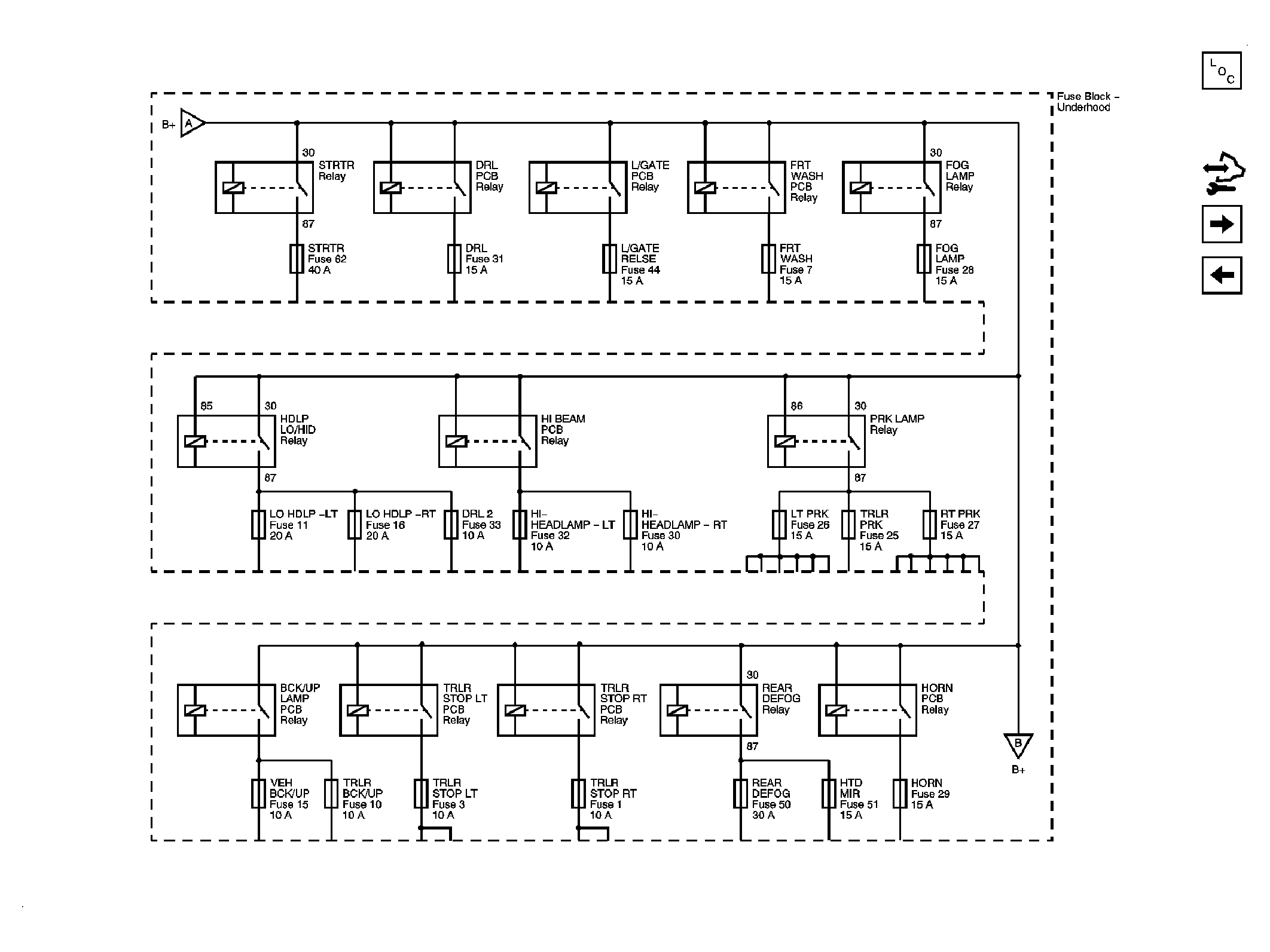

Fig 2: B+ Bus Schematic - 2 Of 3

GM1906705

Courtesy of GENERAL MOTORS CORP.

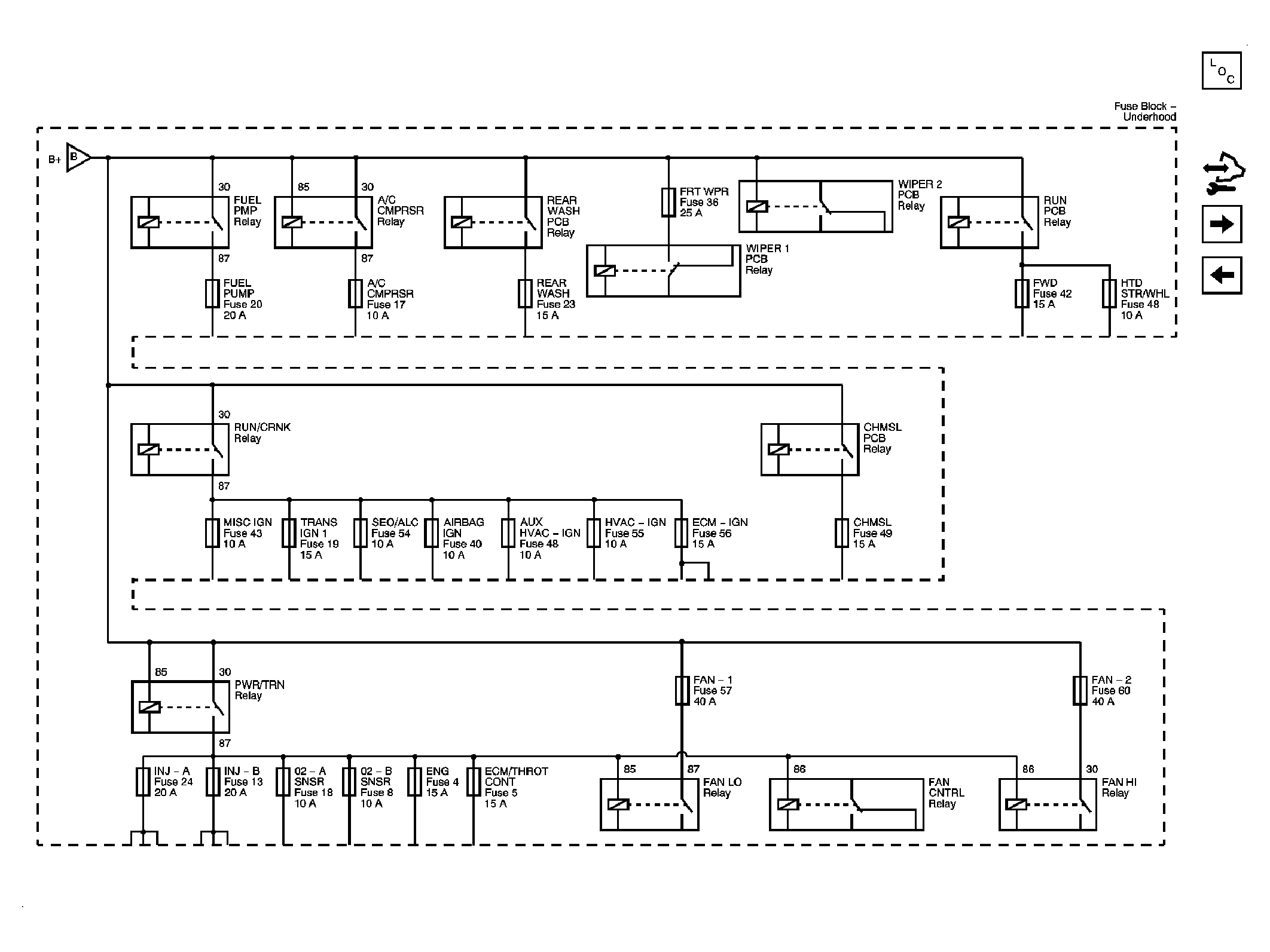

Fig 3: B+ Bus Schematic - 3 Of 3

GM1906707

Courtesy of GENERAL MOTORS CORP.

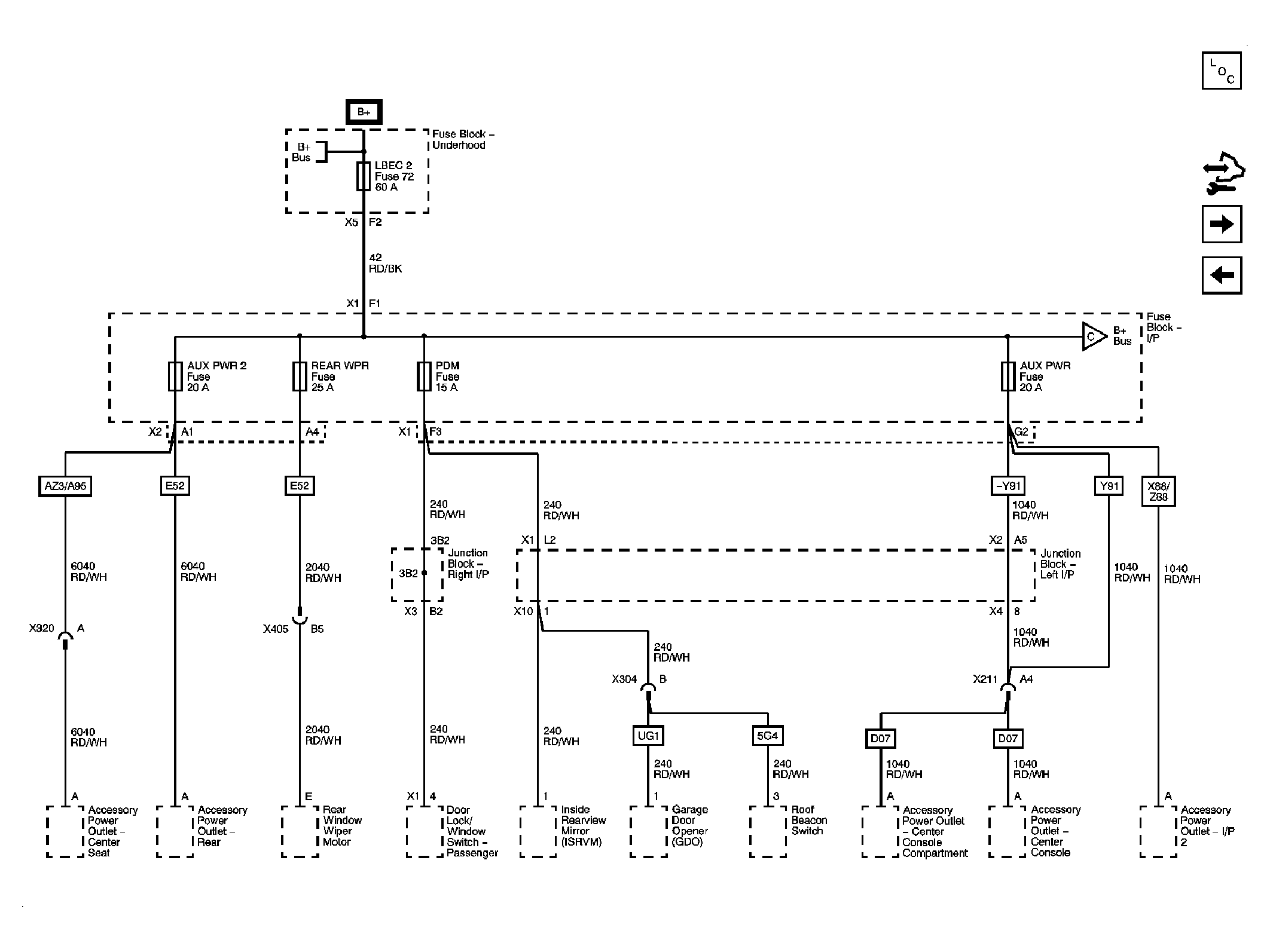

Fig 4: AUX PWR, AUX PWR 2, LBEC 1, PDM, and REAR WPR Fuses Schematic

GM1906709

Courtesy of GENERAL MOTORS CORP.

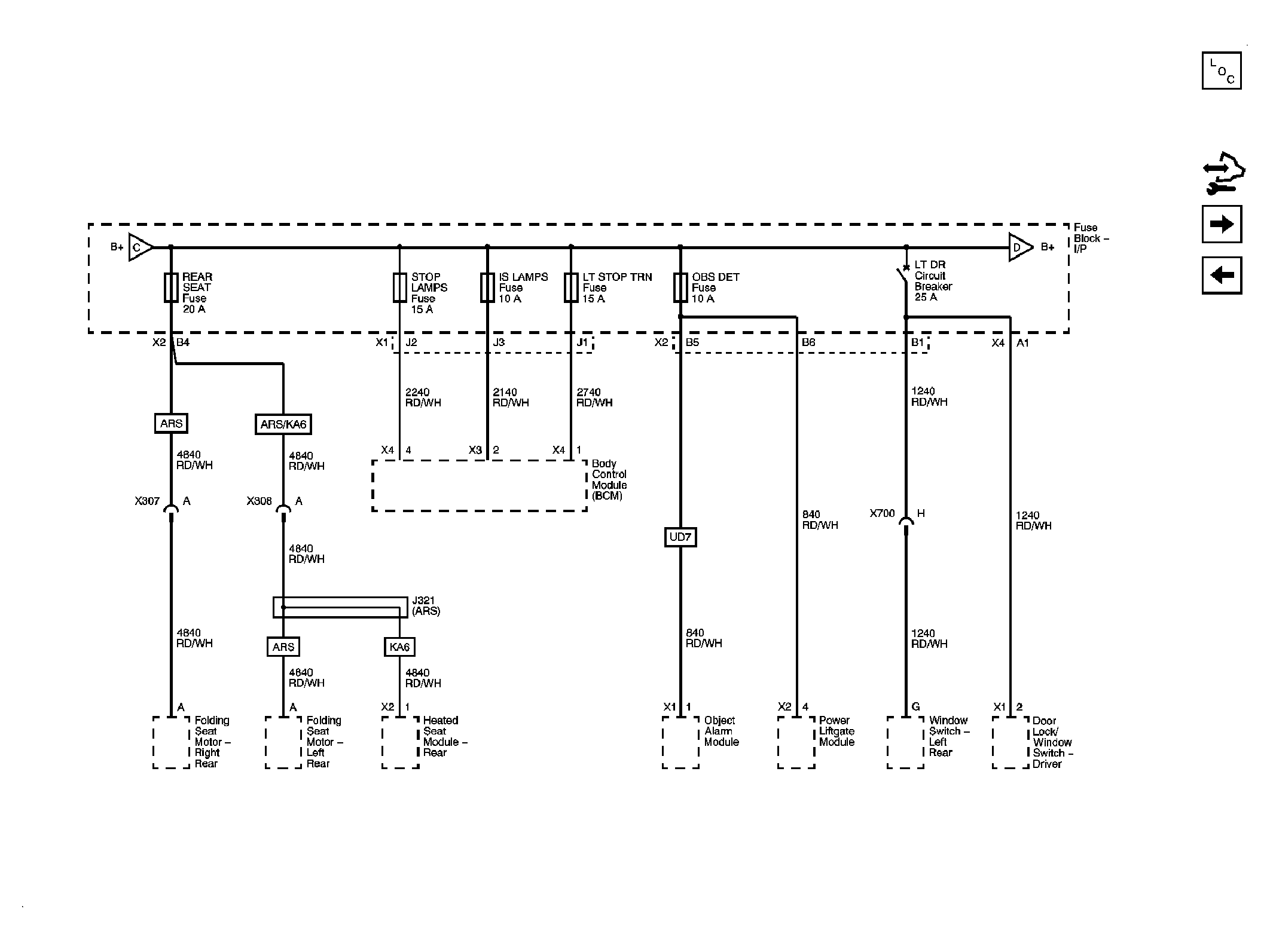

Fig 5: IS LAMPS, LT STOP TRN, OBS DET, REAR SEAT, and STOP LAMPS Fuses and LT DR Circuit Breaker Schematic

GM1906711

Courtesy of GENERAL MOTORS CORP.

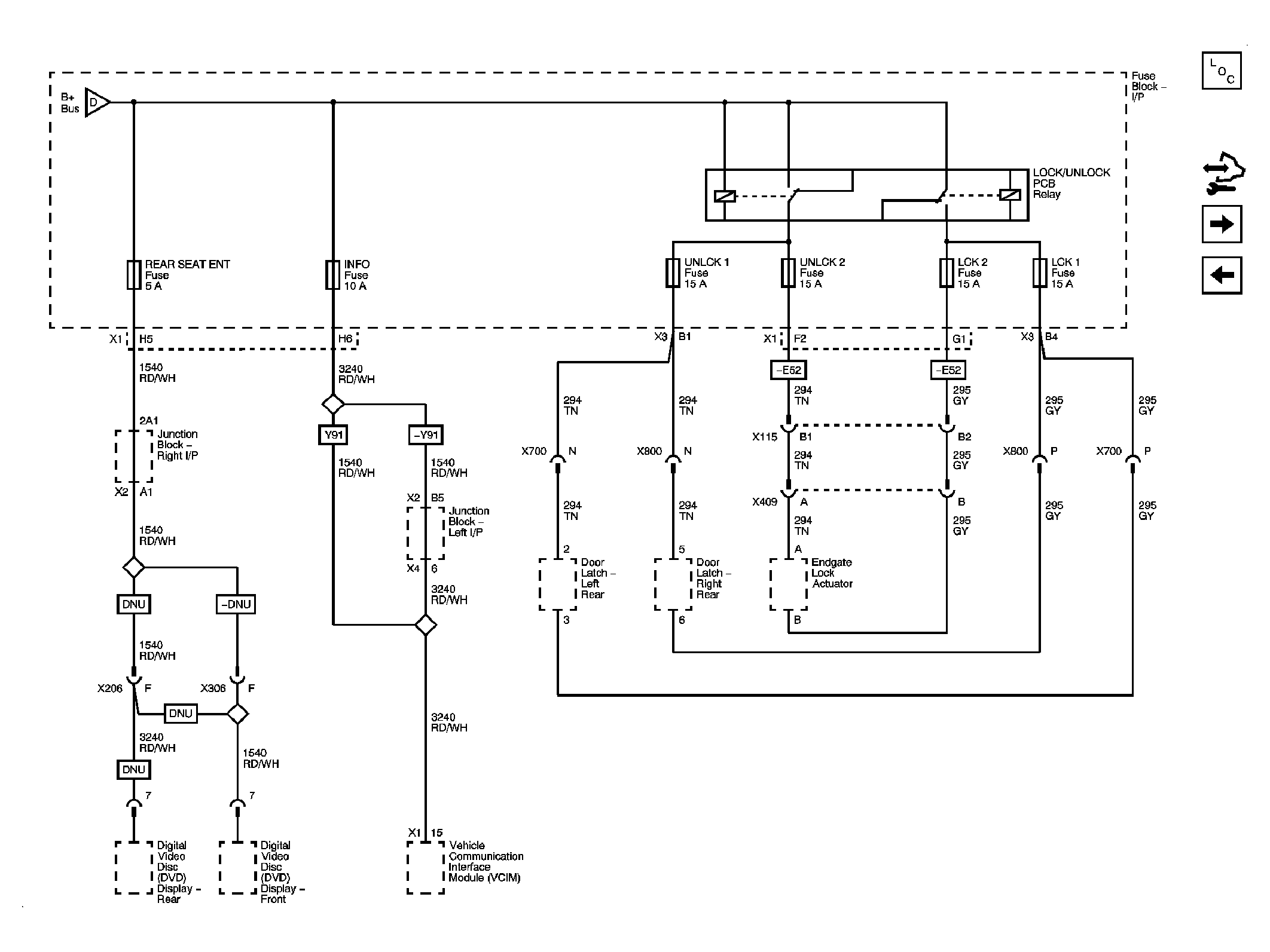

Fig 6: LCK 1, LCK 2, UNLCK 1, UNLCK 2, INFO and REAR SEAT ENT Fuses Schematic

GM1906713

Courtesy of GENERAL MOTORS CORP.

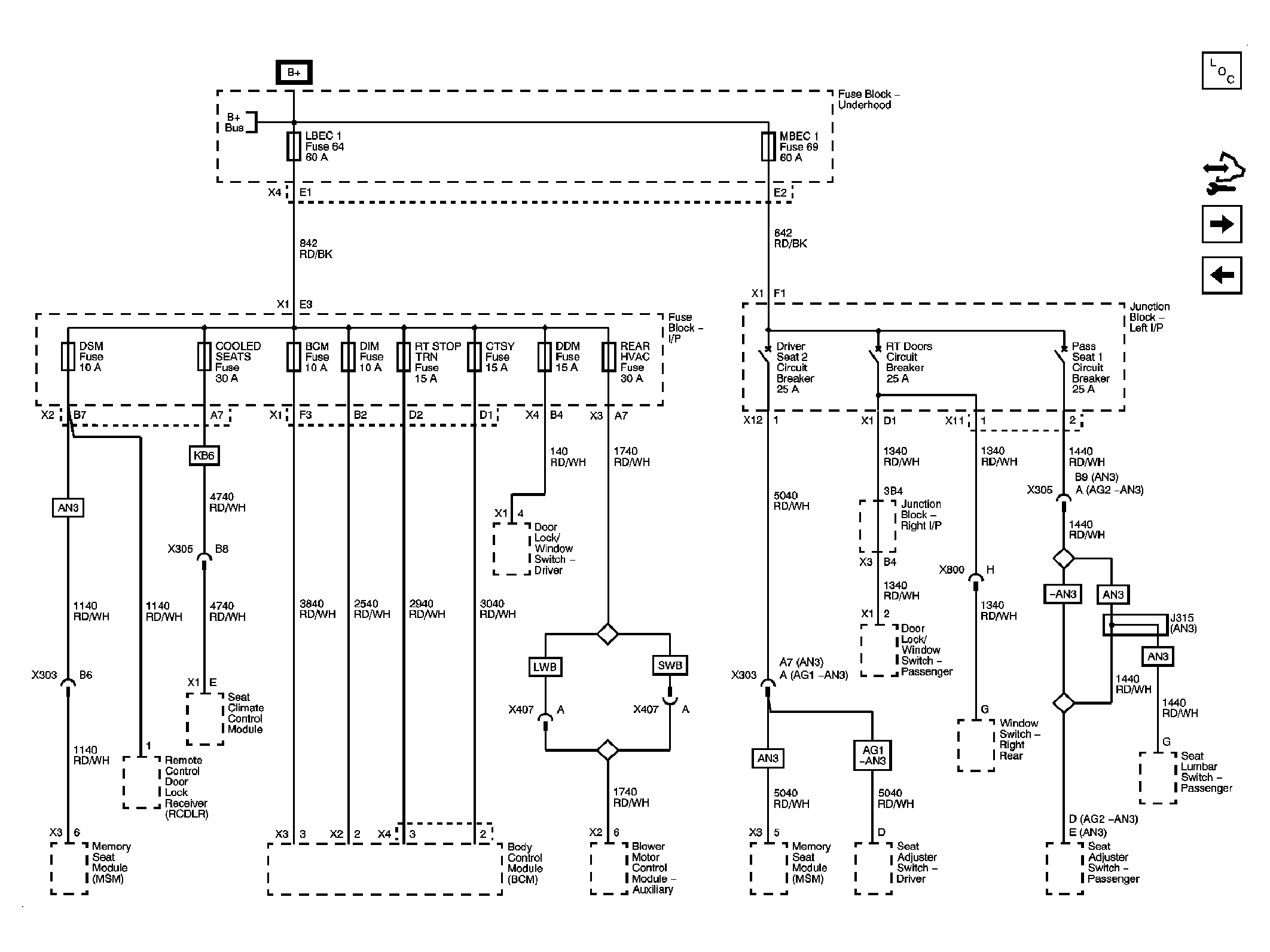

Fig 7: BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 2, MBEC 1, REAR HVAC, and RT STOP TRN Fuses and DRIVER SEAT 2, PASS SEAT 1, and RT DOORS Circuit Breakers Schematic

GM1906715

Courtesy of GENERAL MOTORS CORP.

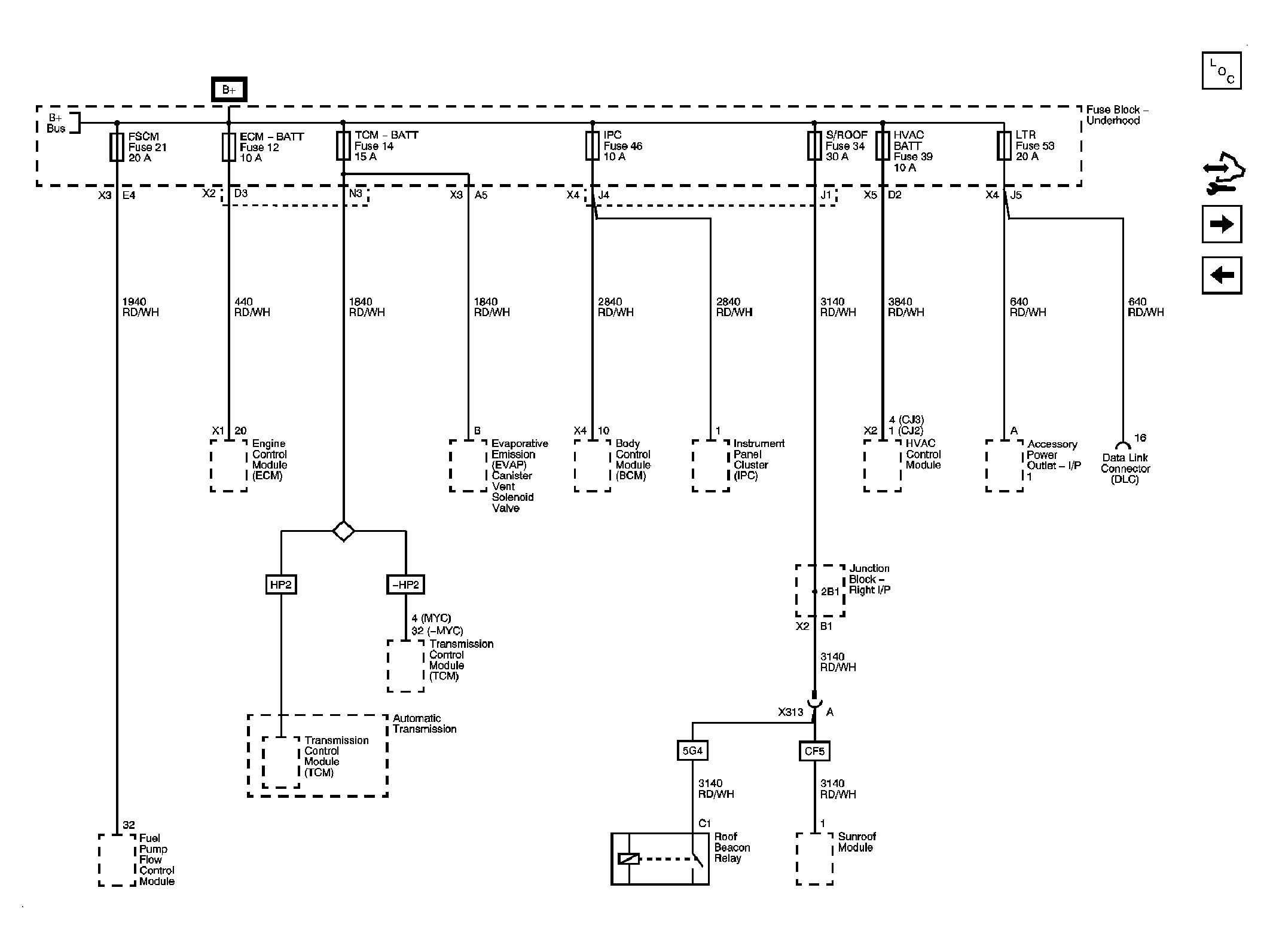

Fig 8: ECM-BATT, HEADLAMP WASH, HVAC BATT, IPC, LTR, S/ROOF, and TCM-BATT Fuses Schematic

GM1906717

Courtesy of GENERAL MOTORS CORP.

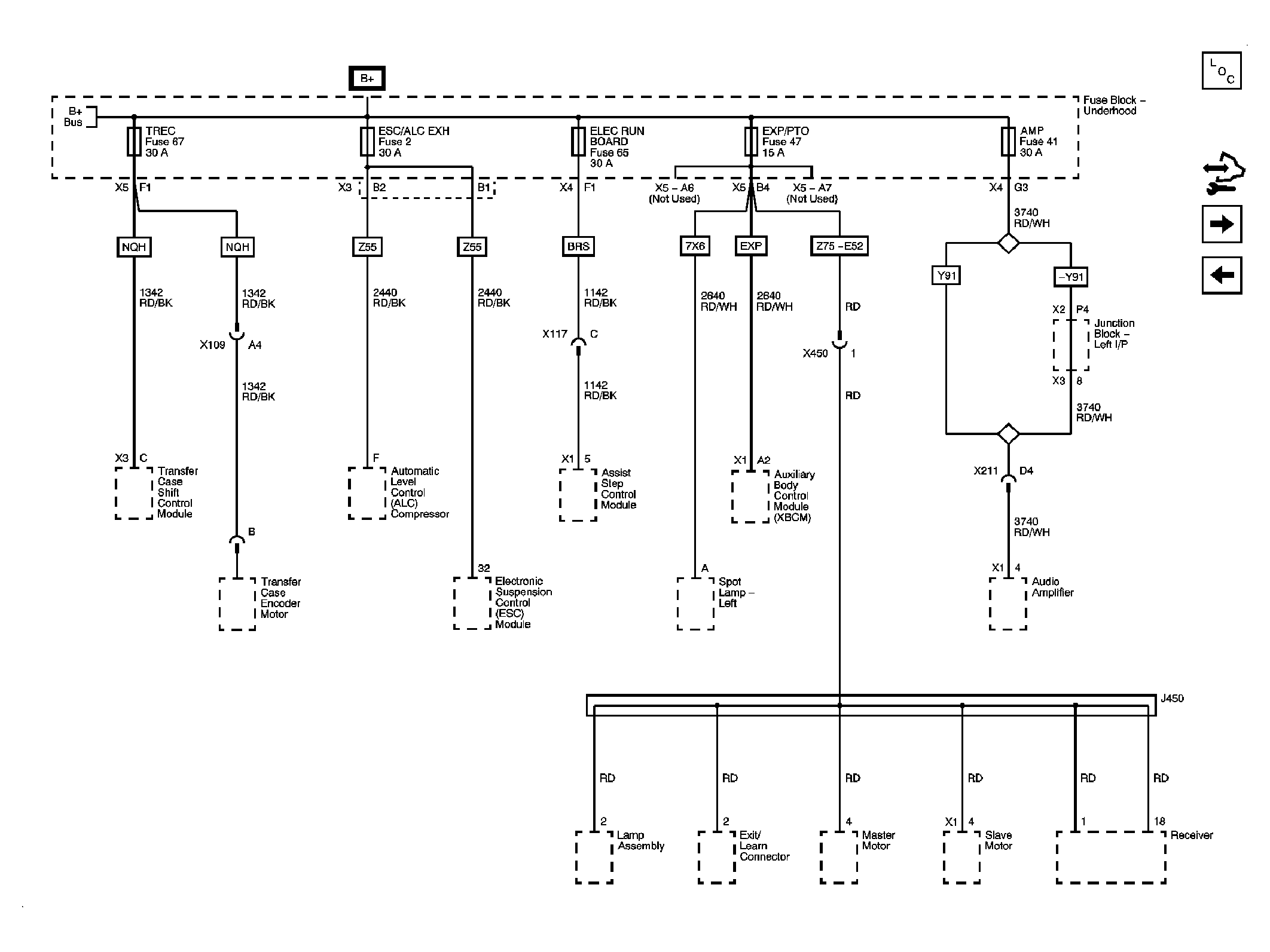

Fig 9: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/BRK MDL and TREC Fuses Schematic

GM1906719

Courtesy of GENERAL MOTORS CORP.

Fig 10: RDO Fuse Schematic

GM1906721

Courtesy of GENERAL MOTORS CORP.

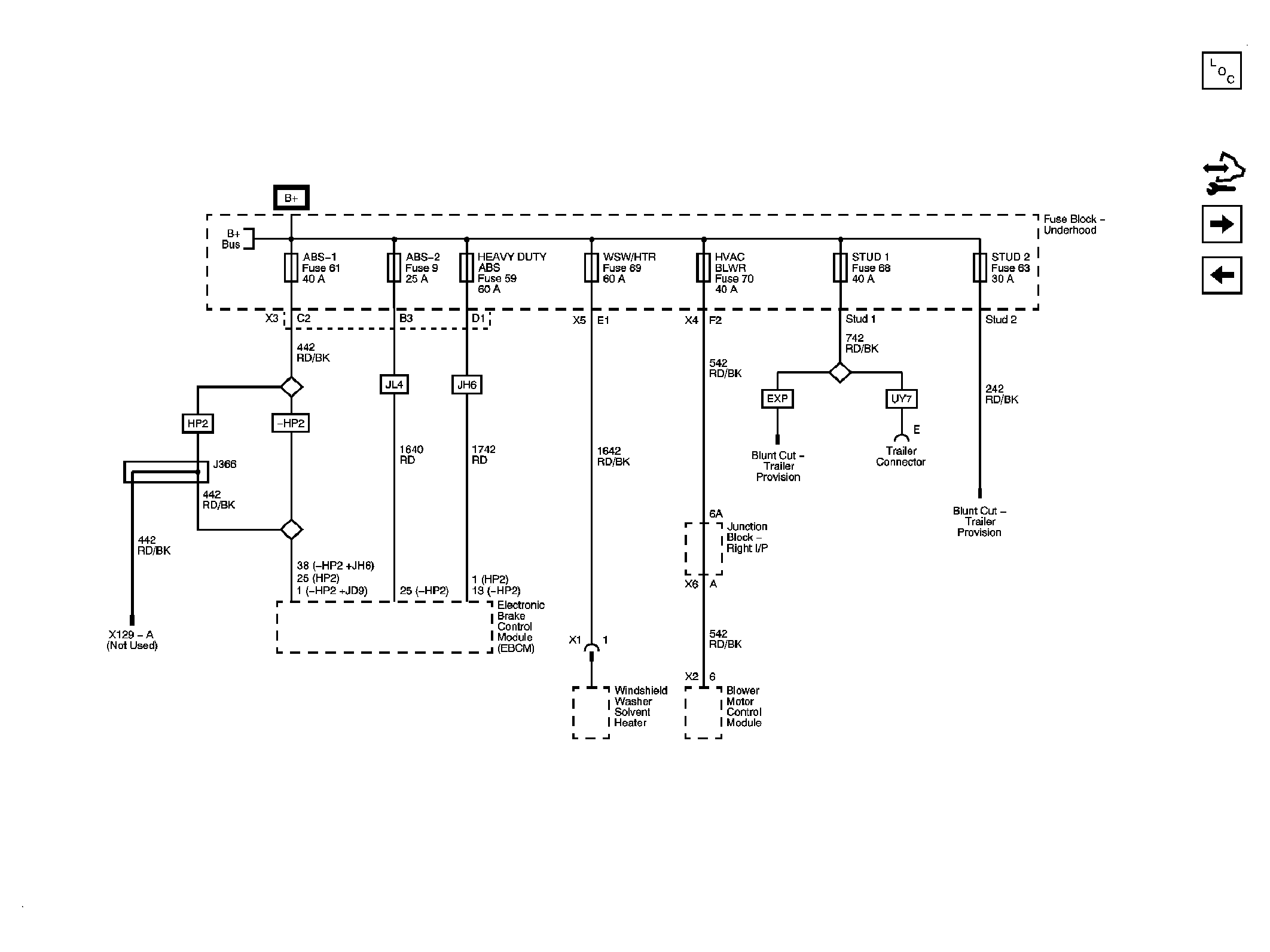

Fig 11: ABS-1, ABS 2, HEAVY DUTY ABS, HVAC BLWR, STUD 1, STUD 2, and WFHS Fuses Schematic

GM1906723

Courtesy of GENERAL MOTORS CORP.

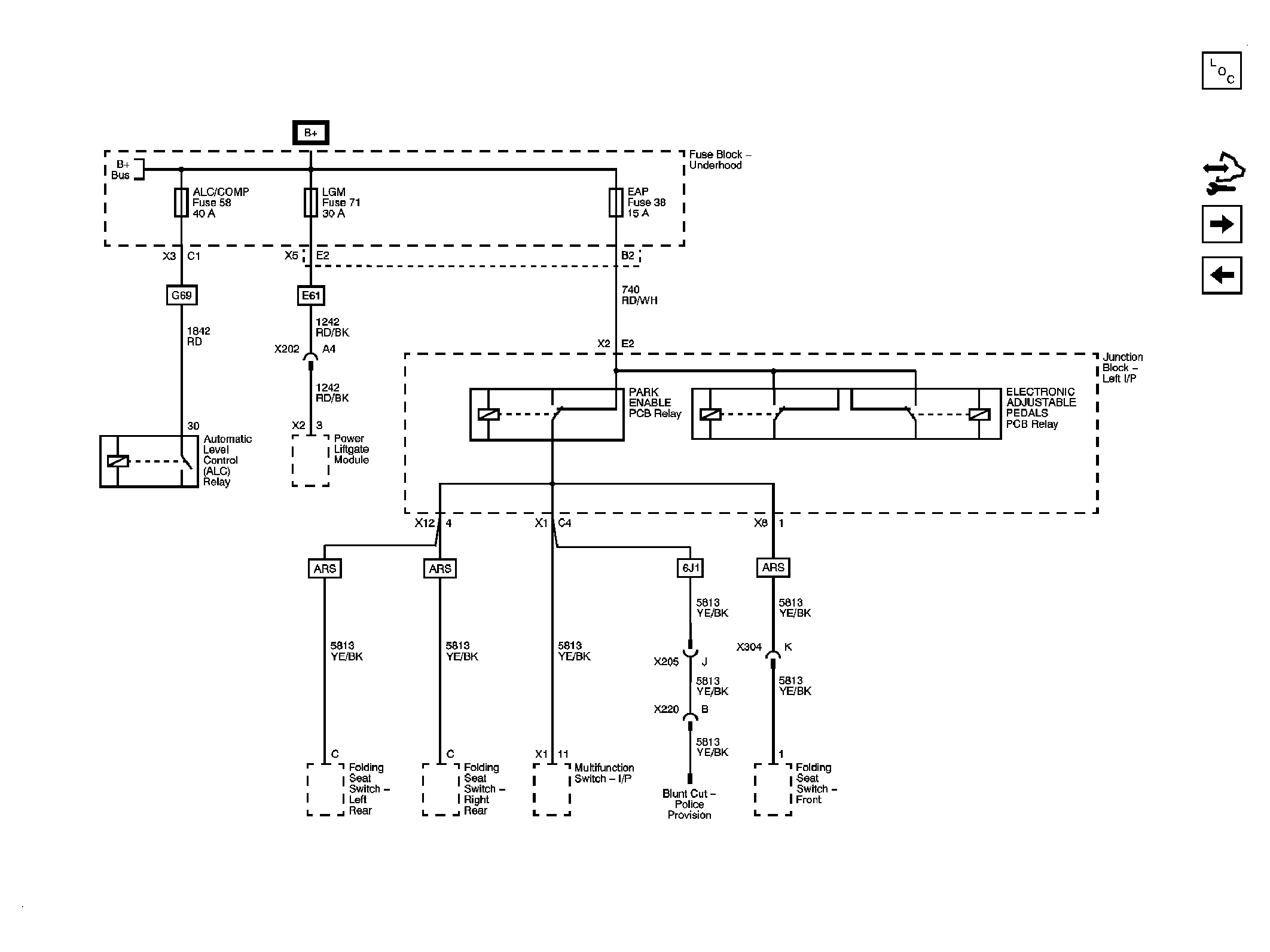

Fig 12: ALC/COMP, EAP, and LGM Fuses Schematic

GM1906727

Courtesy of GENERAL MOTORS CORP.

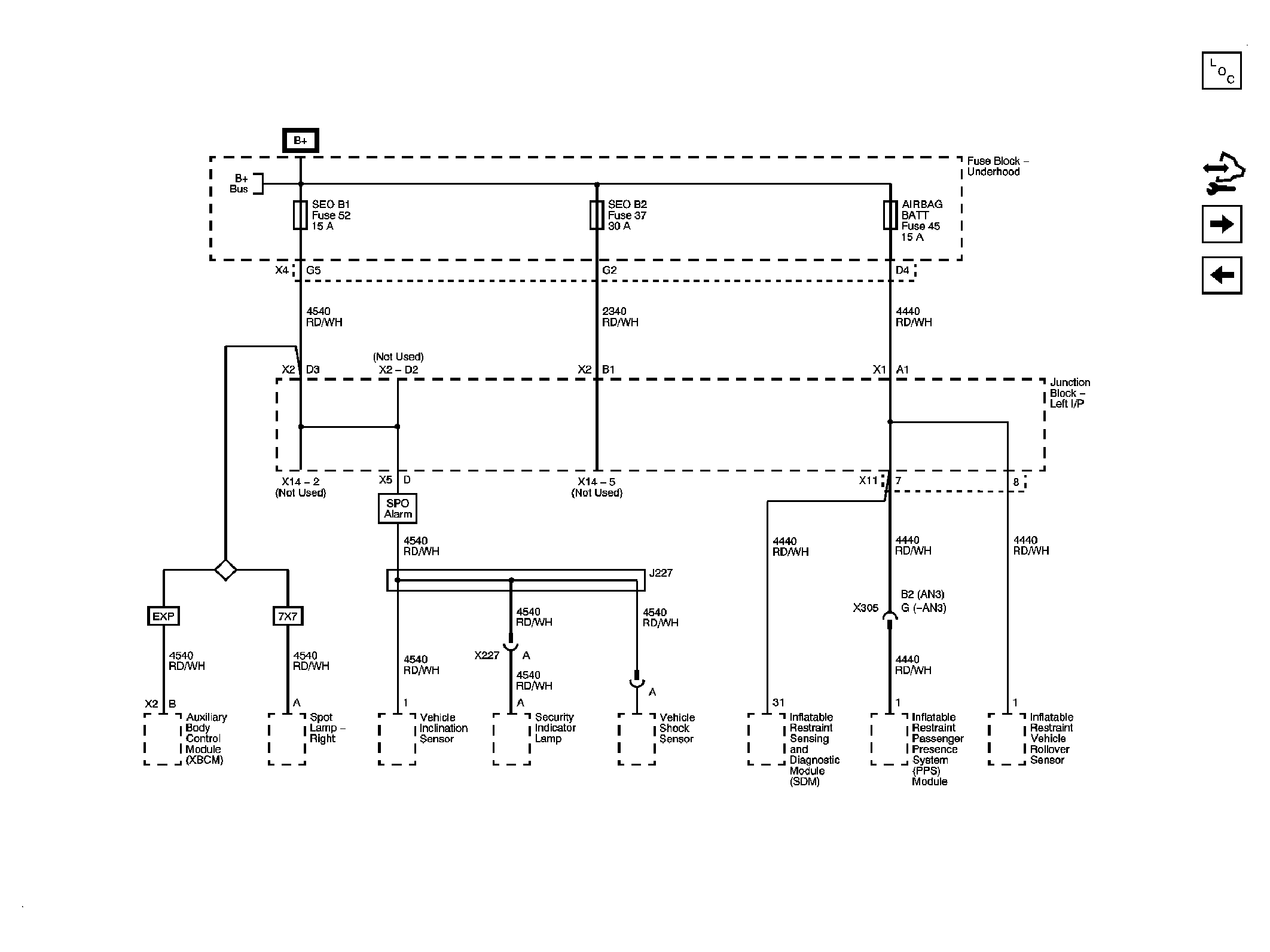

Fig 13: AIRBAG, SEO B1, and SEO B2 Fuses Schematic

GM1906729

Courtesy of GENERAL MOTORS CORP.

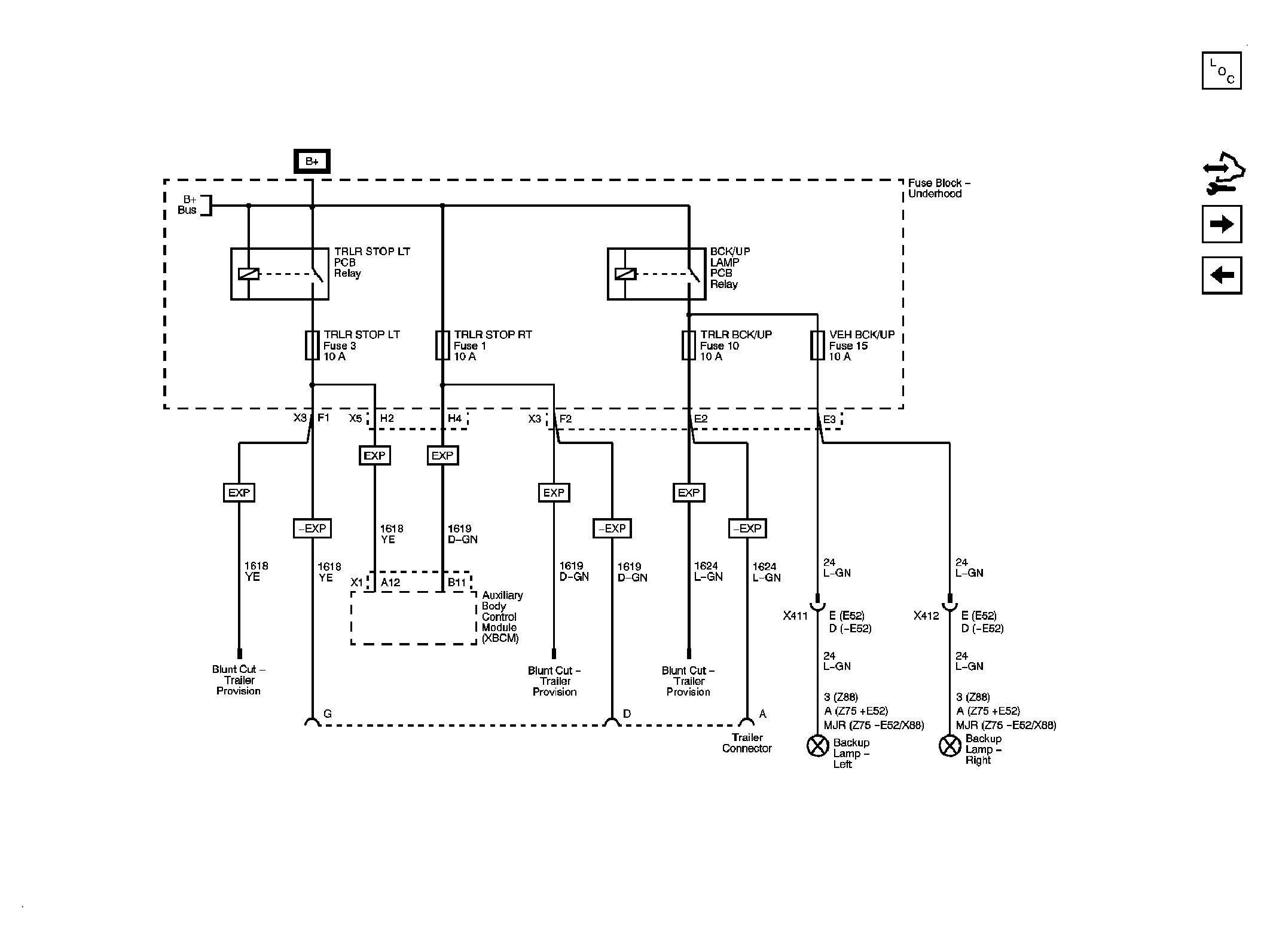

Fig 14: TRLR BCK/UP, TRLR STOP LT, TRAILER STOP RT, and VEH BCK/UP Fuses Schematic

GM1906731

Courtesy of GENERAL MOTORS CORP.

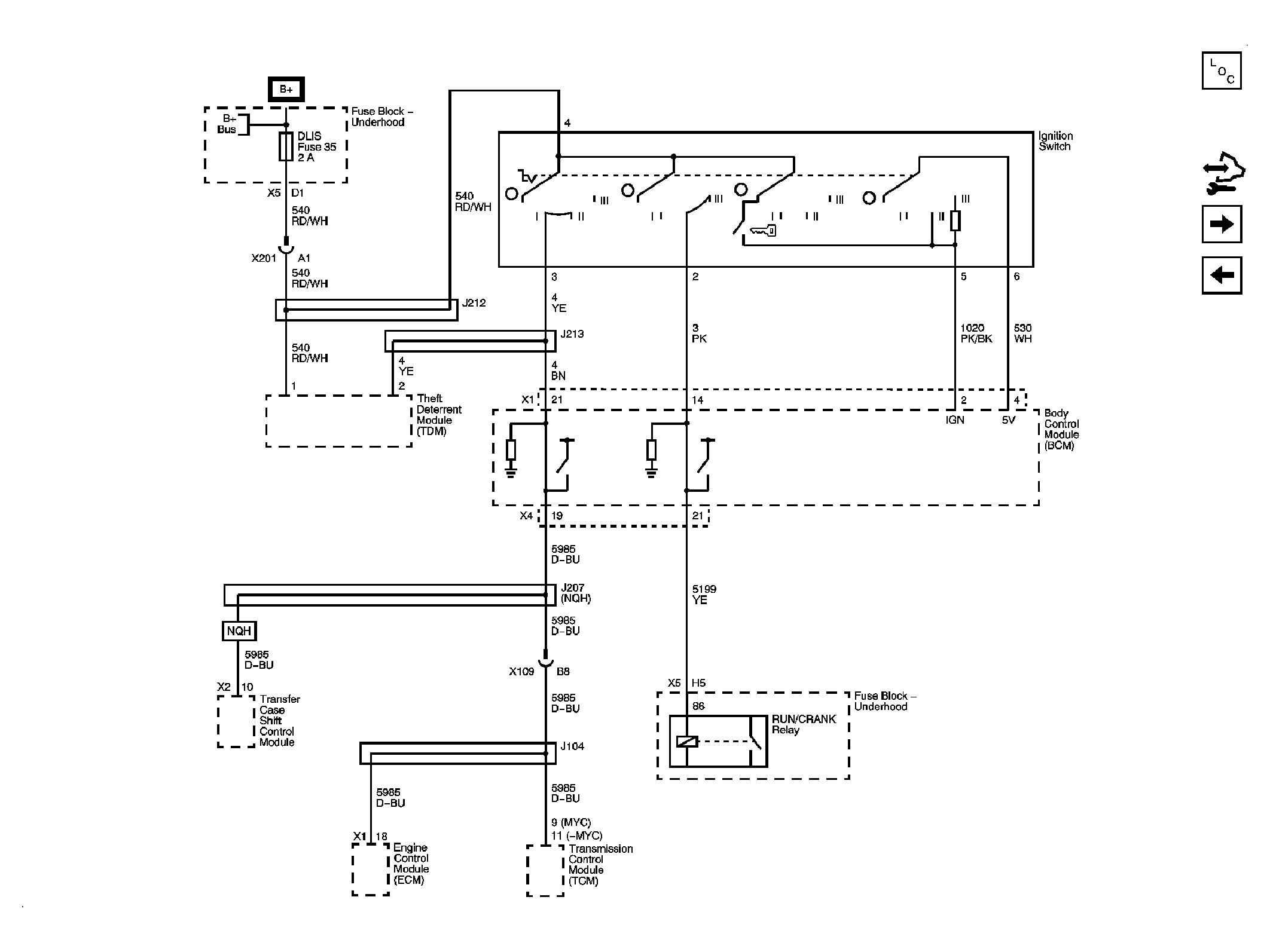

Fig 15: DLIS Fuse & Ignition Switch Schematic

GM1906733

Courtesy of GENERAL MOTORS CORP.

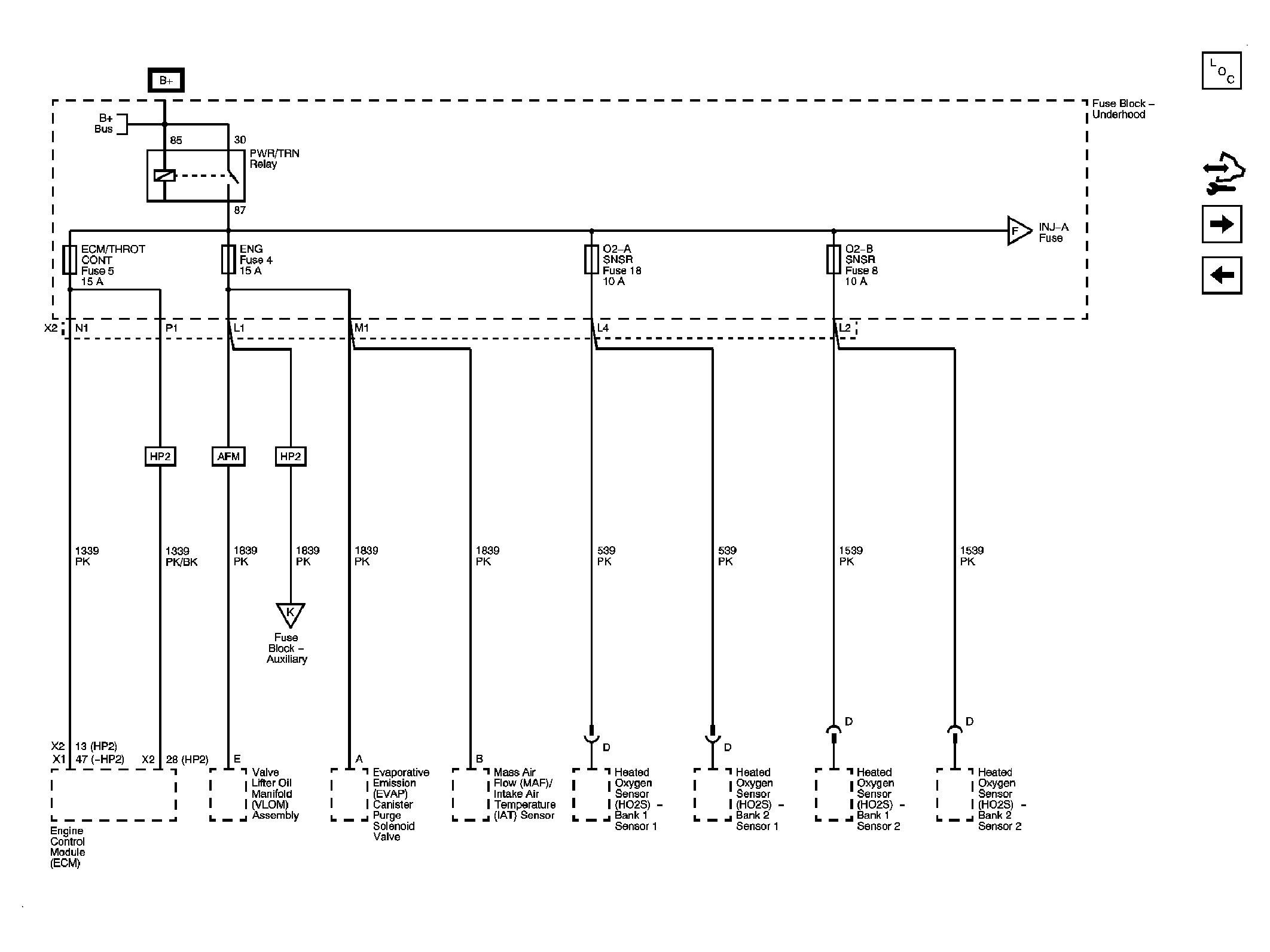

Fig 16: PWR/TRN Bus Schematic - ECM/THROT, ENG, O2-A SNSR and O2-B SNSR Fuses

GM1906735

Courtesy of GENERAL MOTORS CORP.

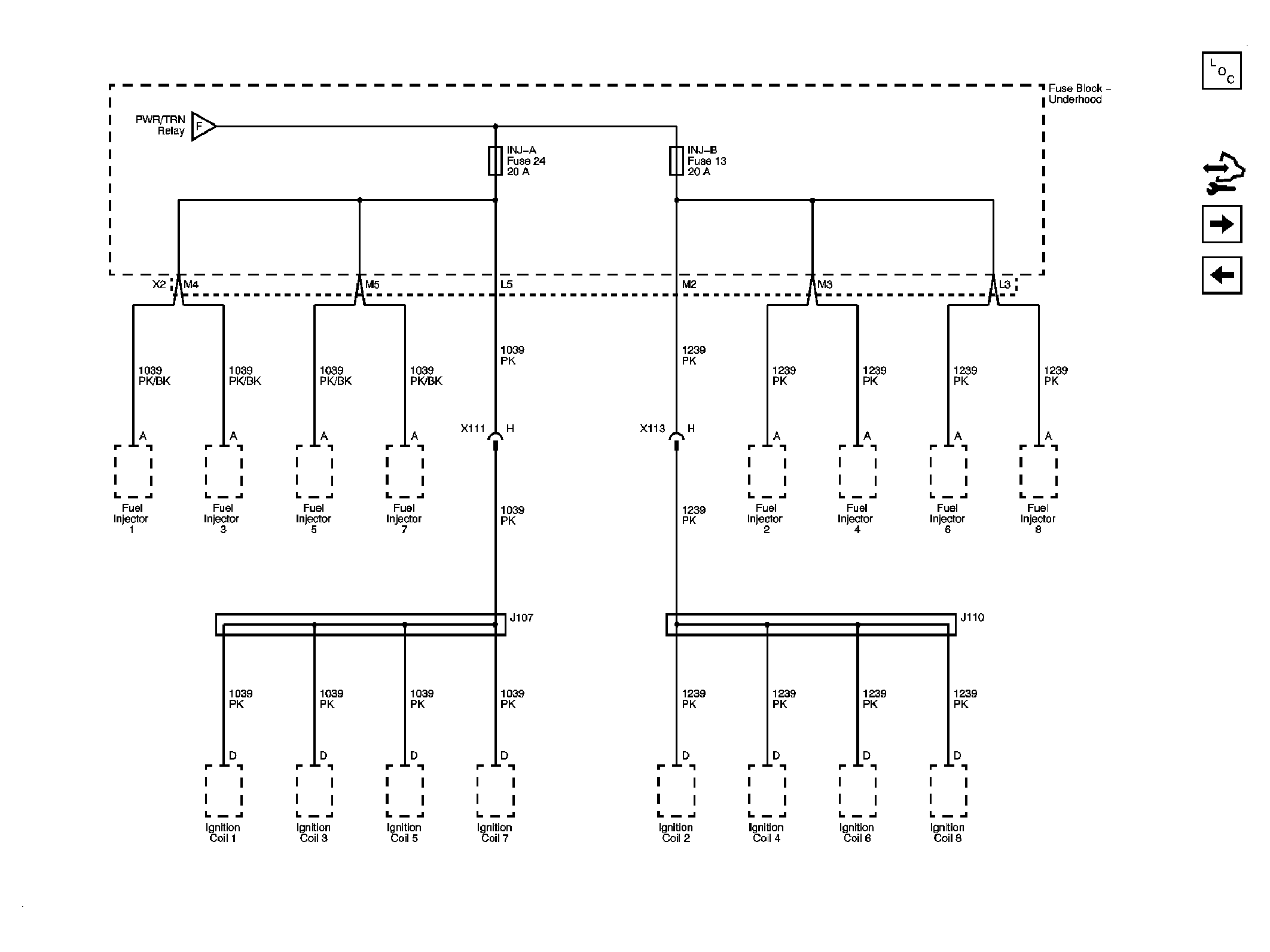

Fig 17: PWR/TRN Bus Schematic - INJ-A and INJ-B Fuses

GM1906738

Courtesy of GENERAL MOTORS CORP.

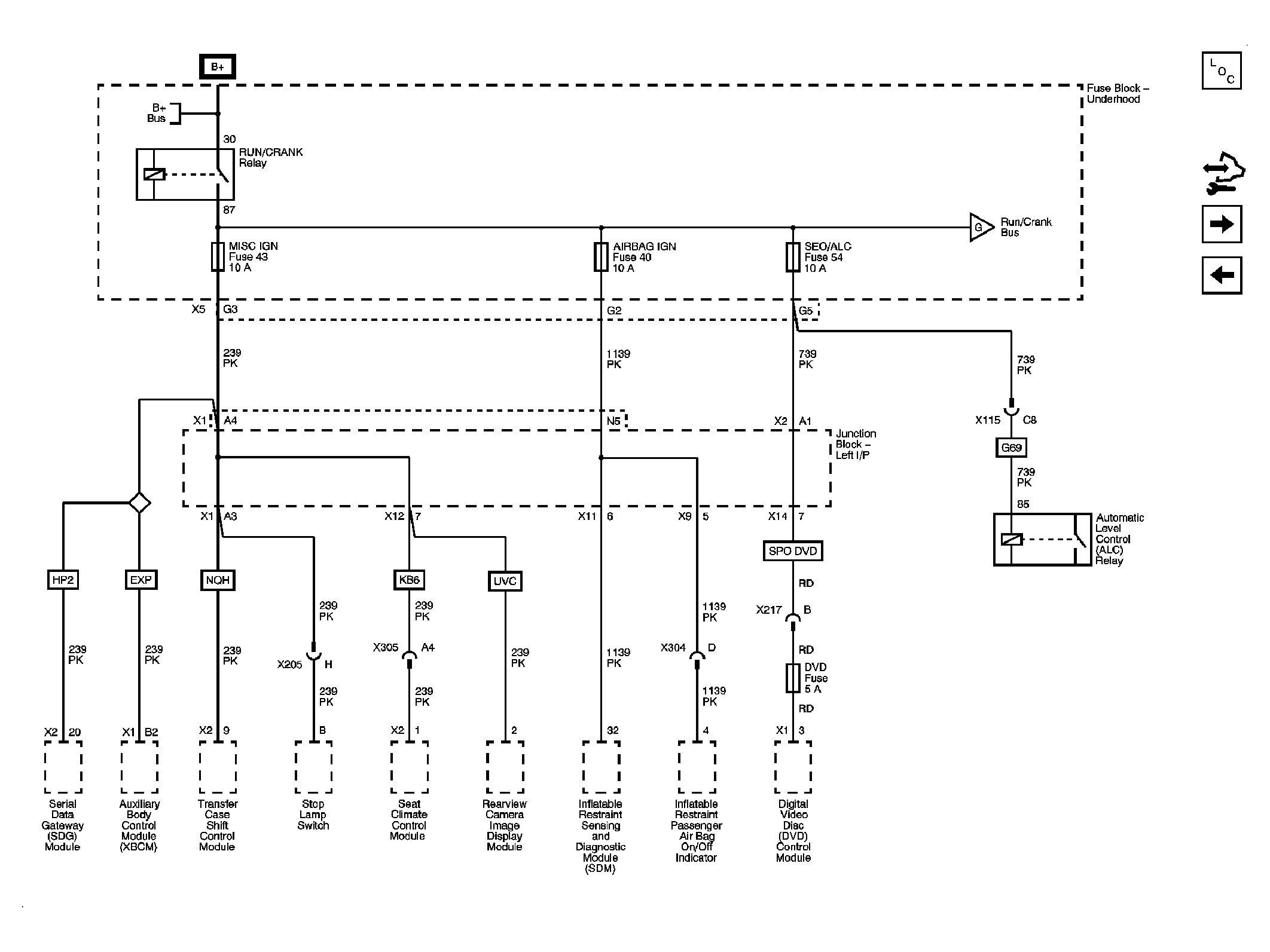

Fig 18: RUN/CRANK Bus Schematic - AIRBAG IGN, MISC IGN and SEO/ALC Fuses

GM1906740

Courtesy of GENERAL MOTORS CORP.

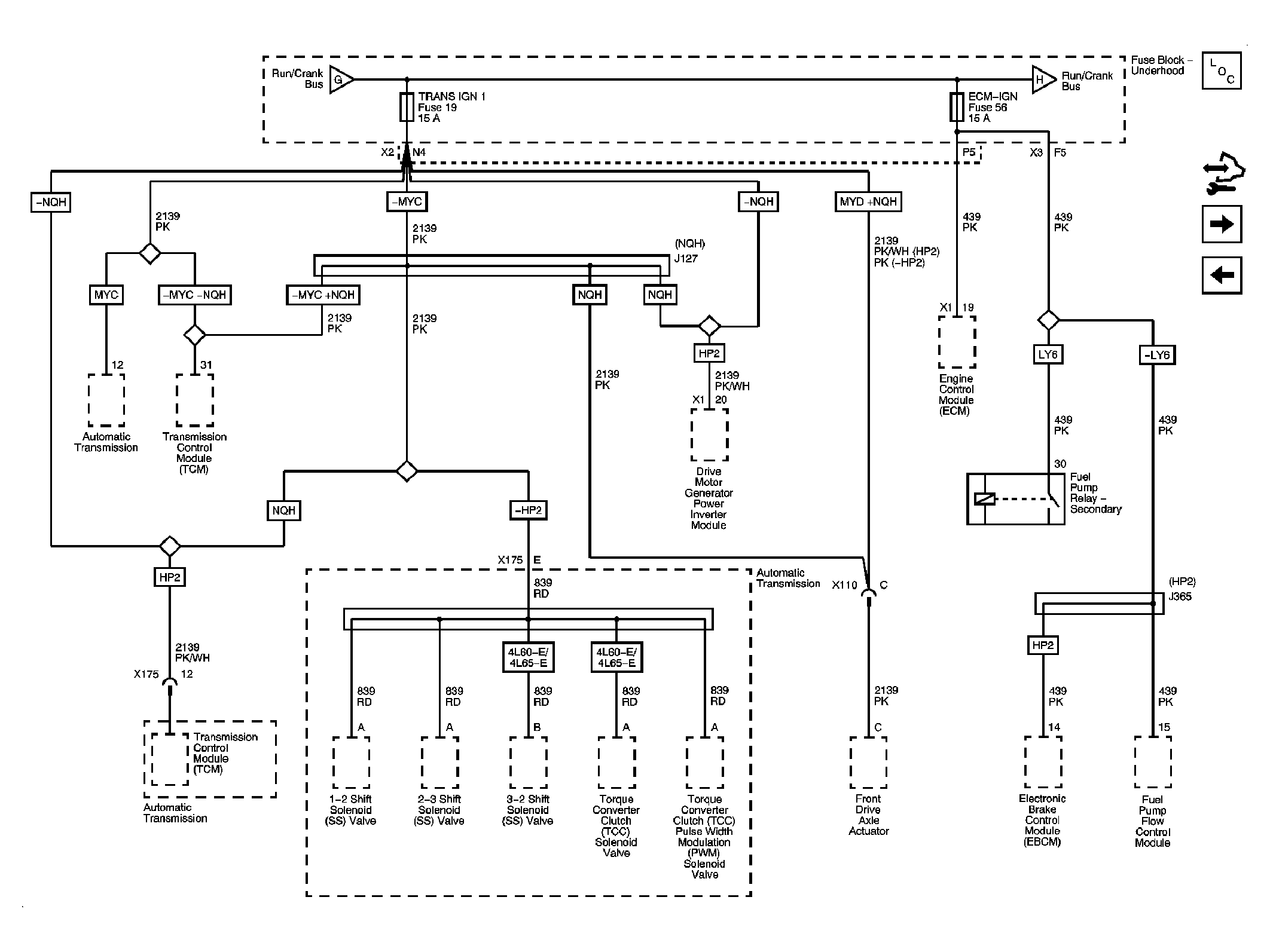

Fig 19: RUN/CRANK Bus Schematic - ECM-IGN and TRANS IGN 1 Fuses

GM1906742

Courtesy of GENERAL MOTORS CORP.

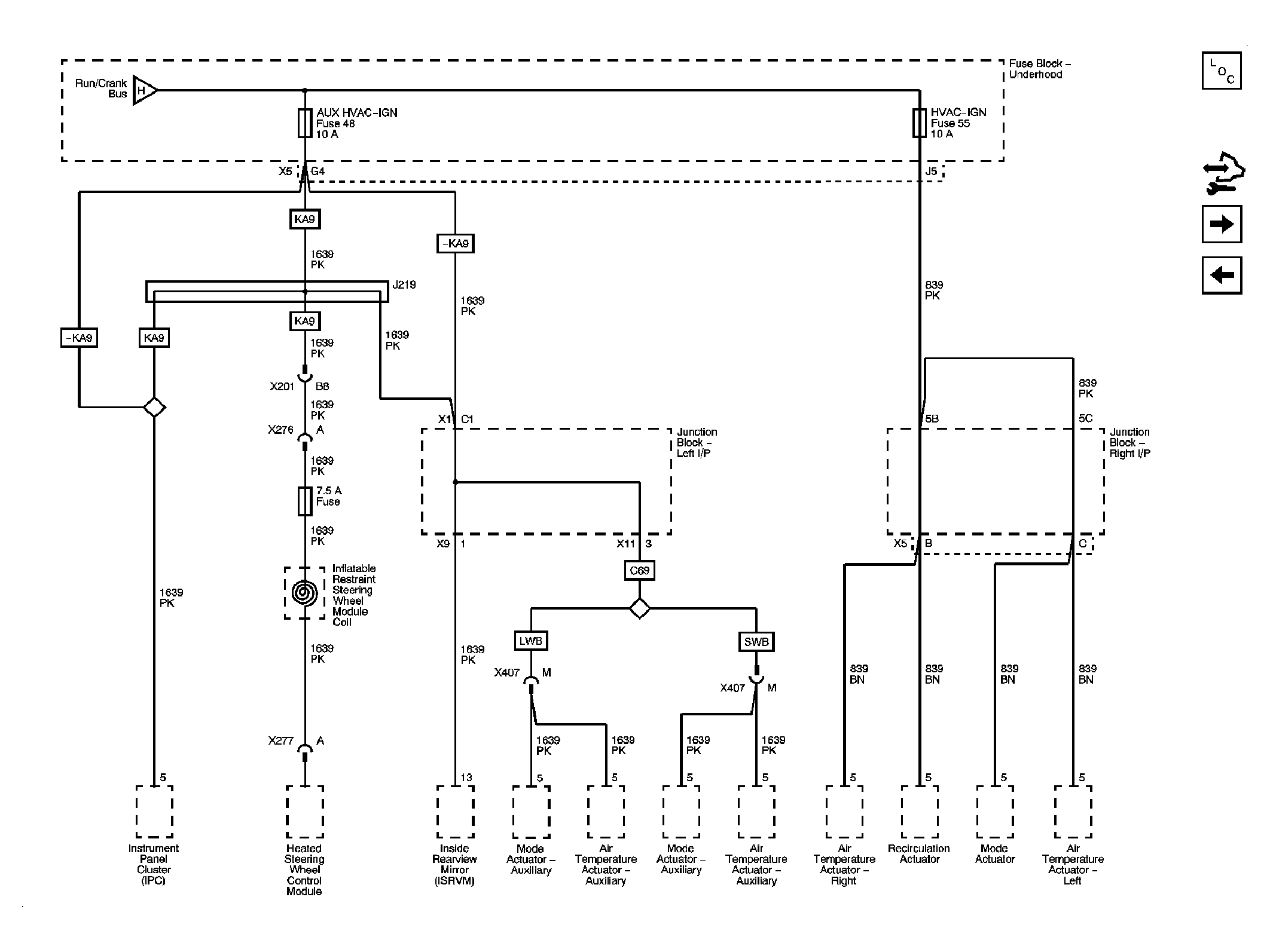

Fig 20: RUN/CRANK Bus Schematic - AUX HVAC-IGN and HVAC-IGN Fuses

GM1906745

Courtesy of GENERAL MOTORS CORP.

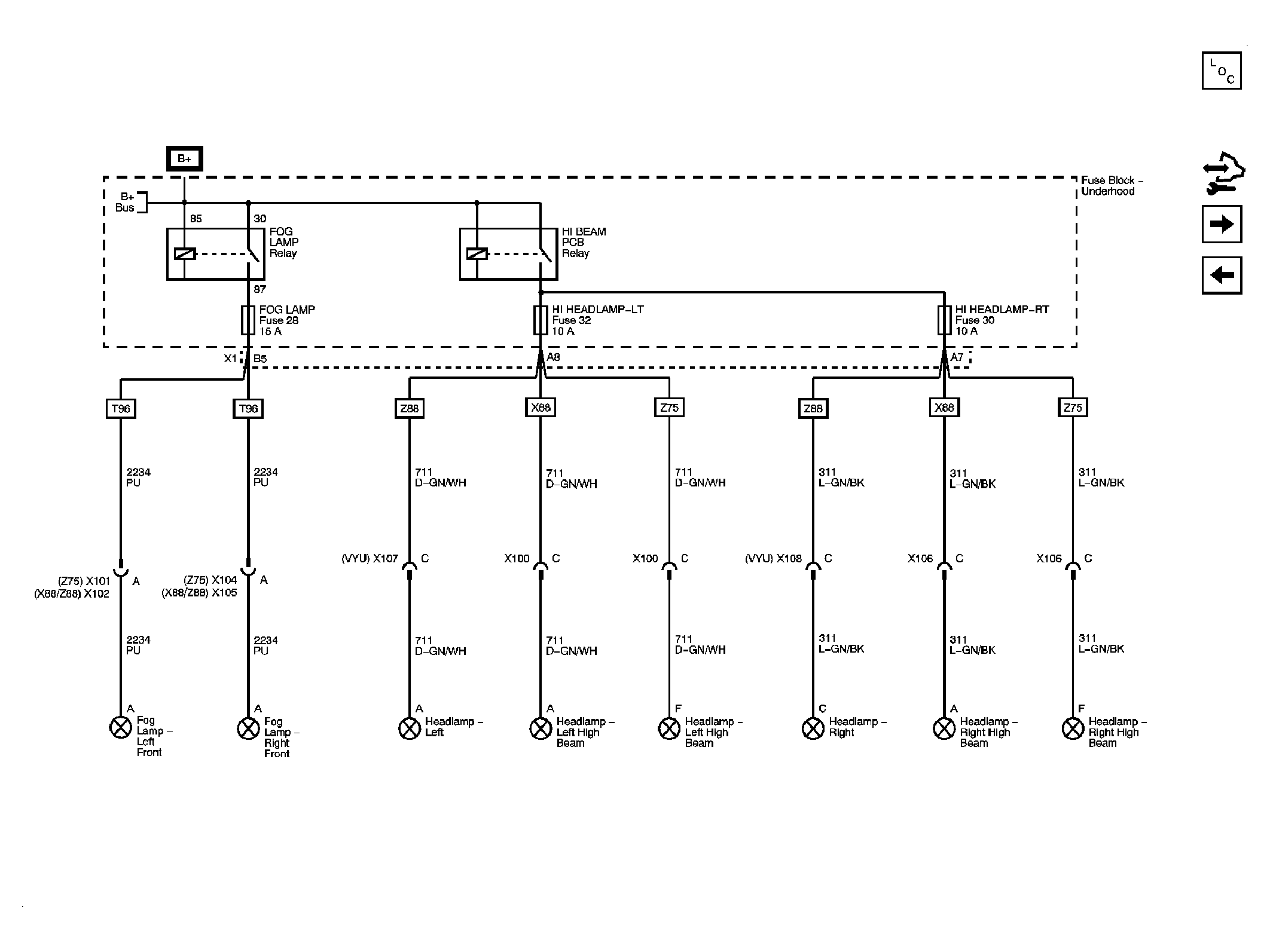

Fig 21: FOG LAMP, HI HEADLAMP-LT and HI HEADLAMP-RT Fuses Schematic

GM1906747

Courtesy of GENERAL MOTORS CORP.

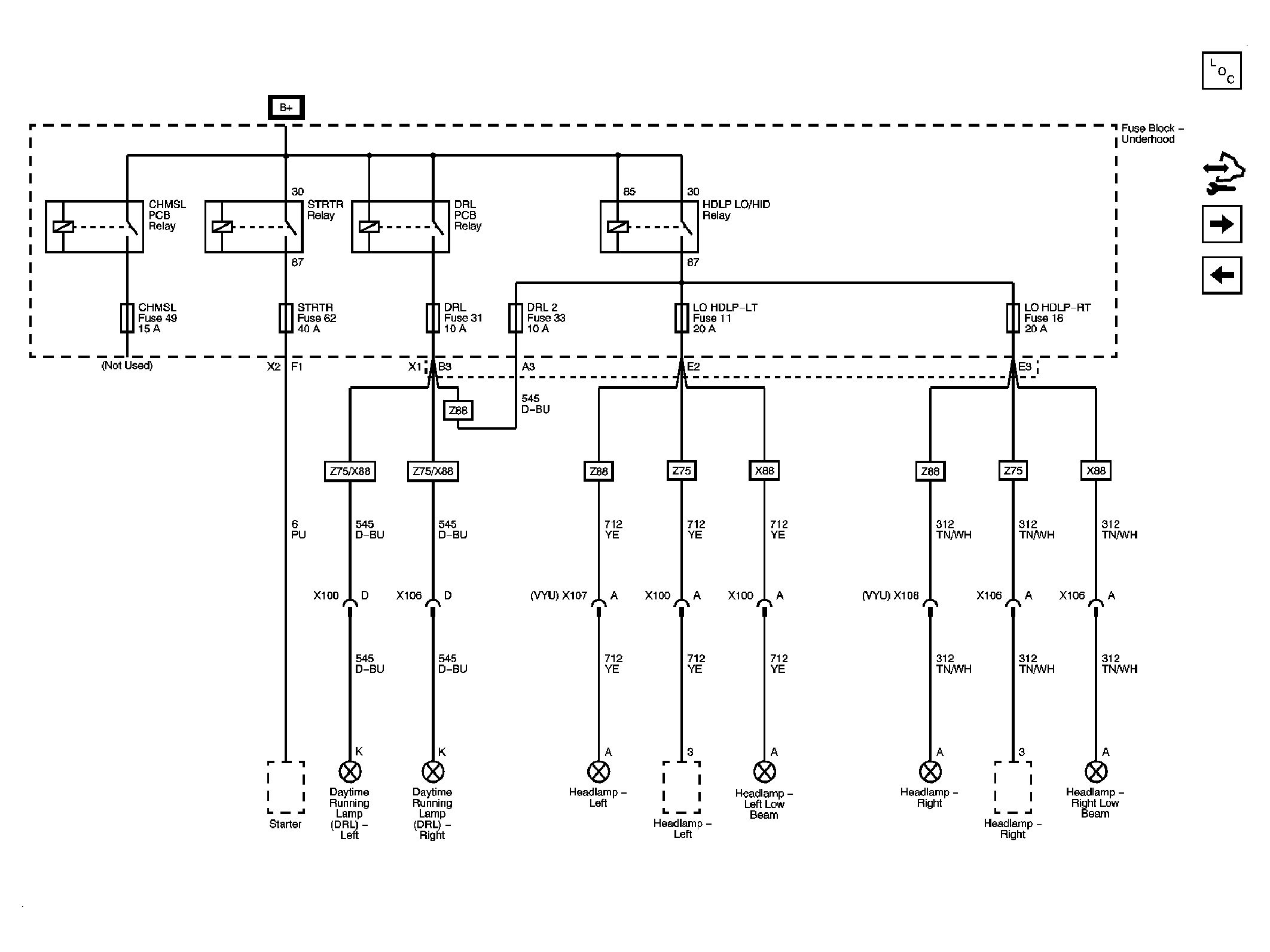

Fig 22: DRL, DRL 2, LO HDLP-LT, LO HDLP-RT, and STRTR Fuses Schematic

GM1906750

Courtesy of GENERAL MOTORS CORP.

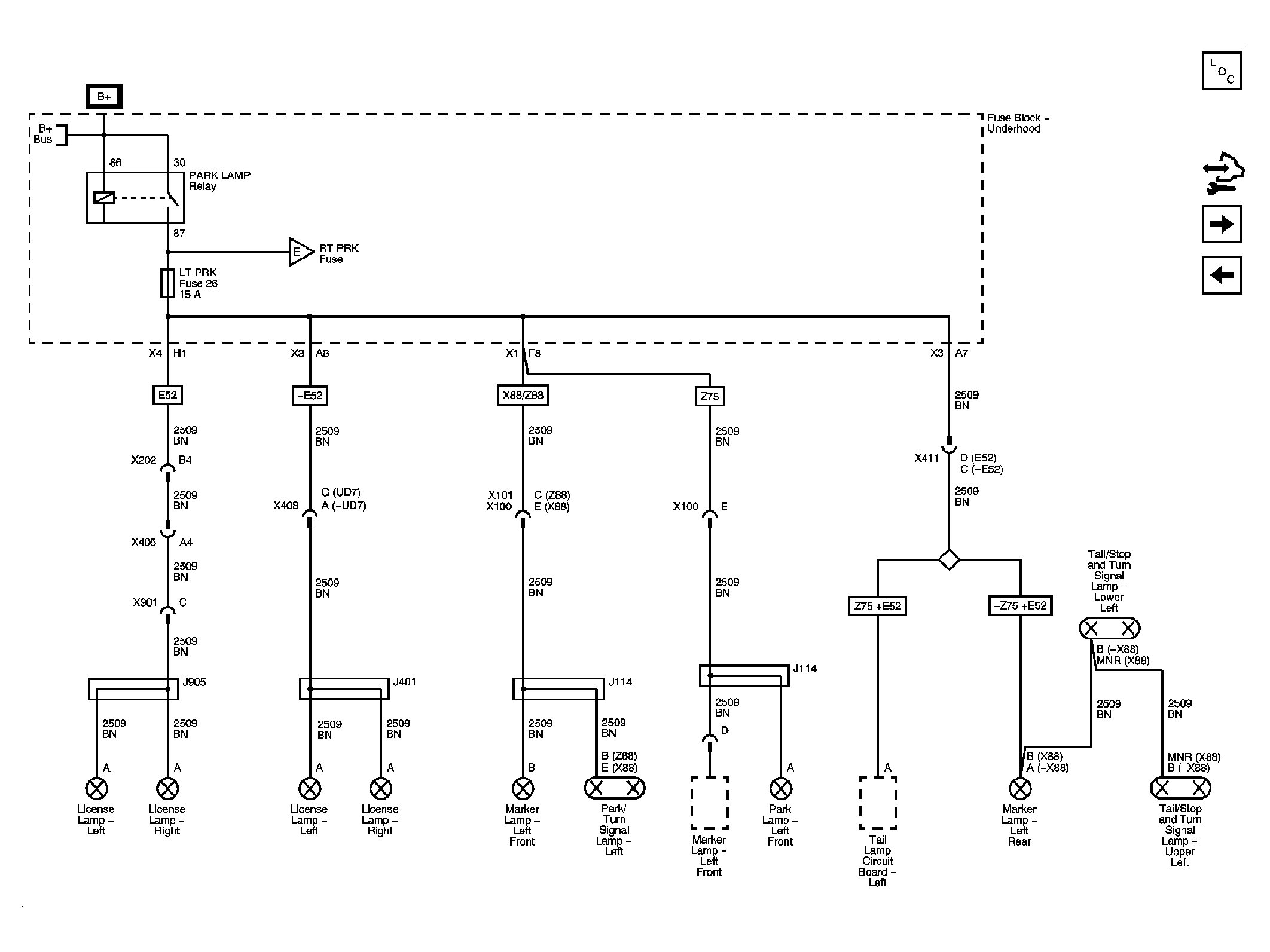

Fig 23: LT PRK Fuse Schematic

GM1906753

Courtesy of GENERAL MOTORS CORP.

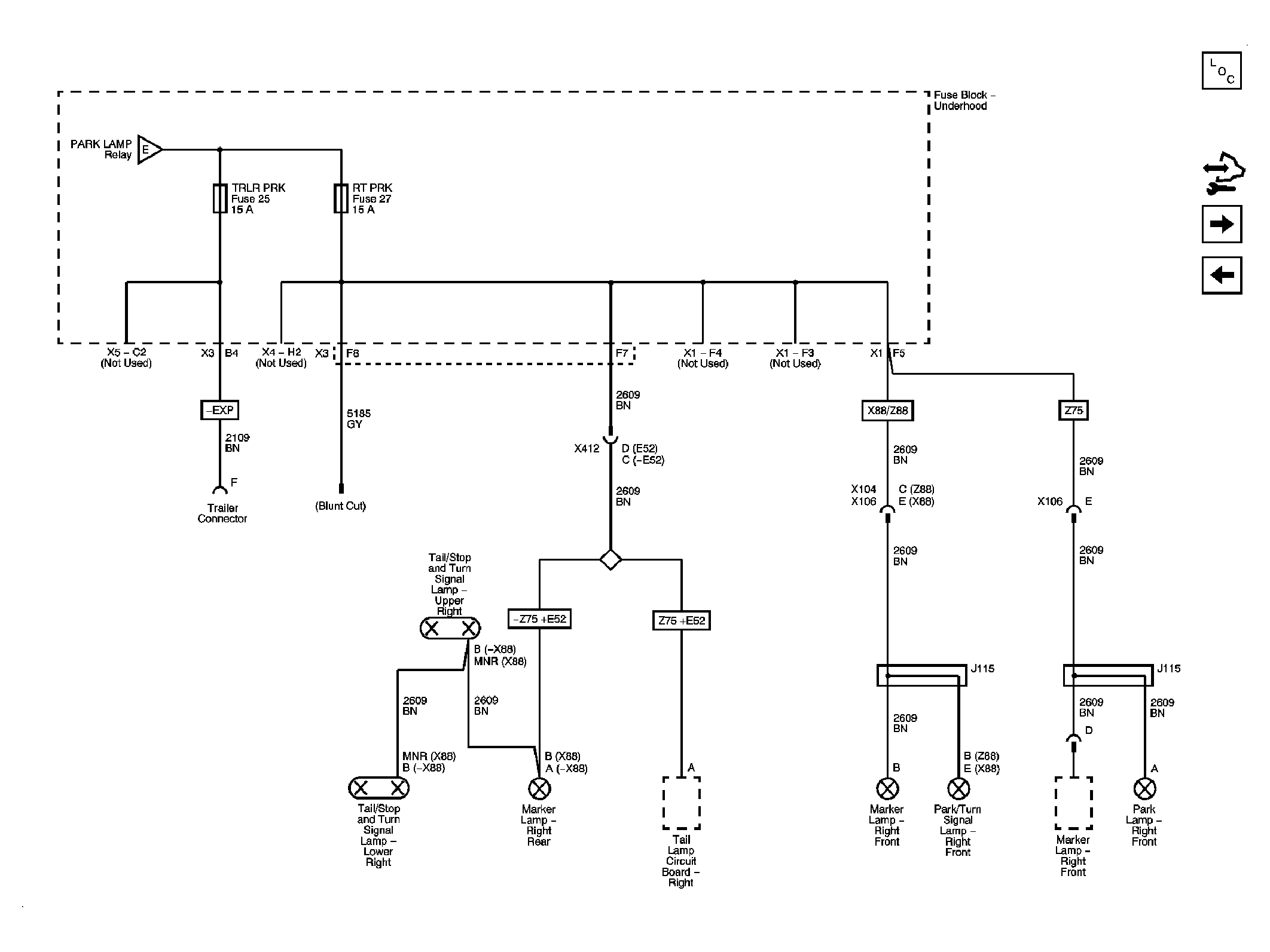

Fig 24: RT PRK AND TRLR PRK Fuses Schematic

GM1906755

Courtesy of GENERAL MOTORS CORP.

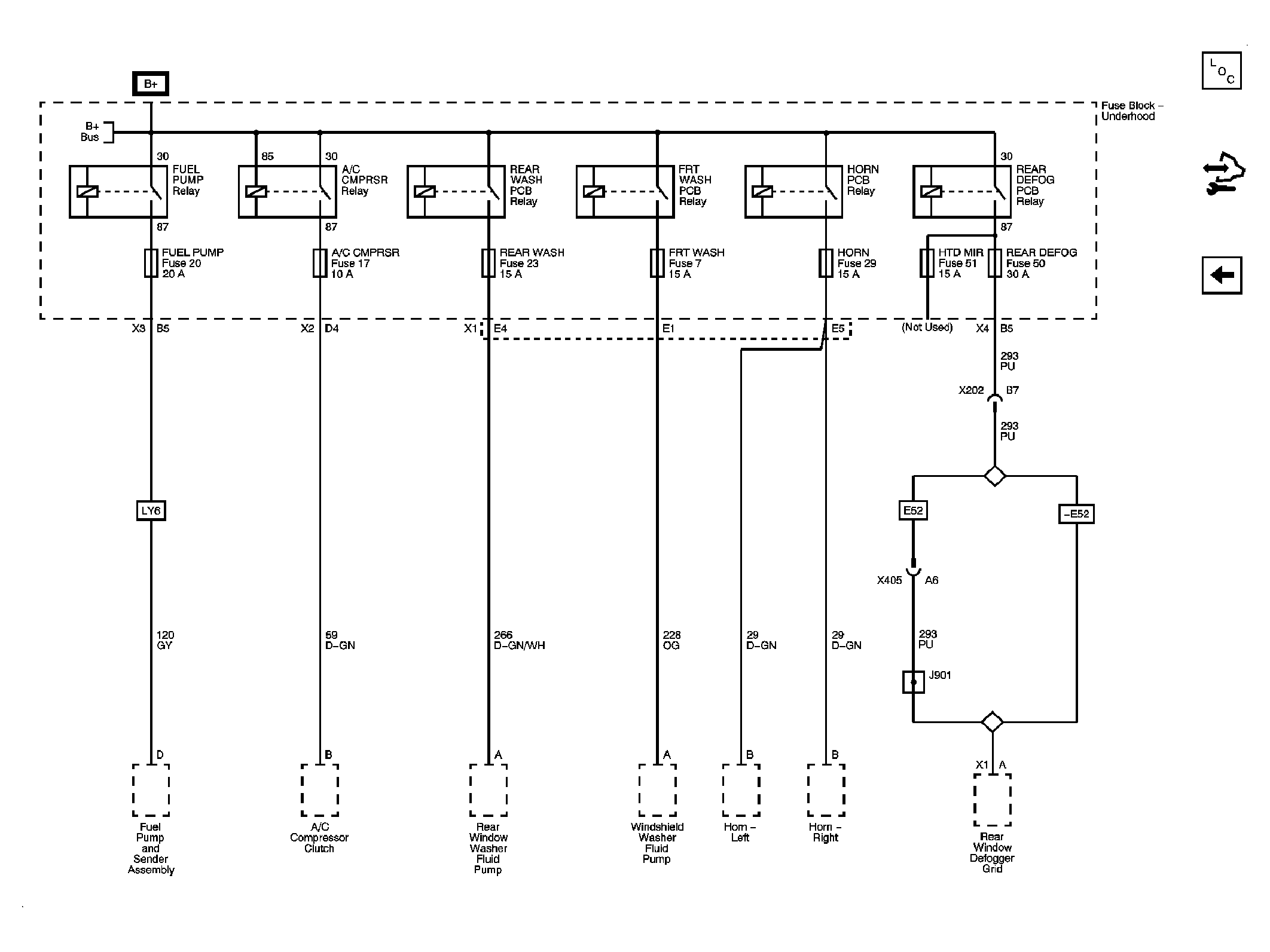

Fig 25: A/C CMPRSR, FRT WASH, FUEL PUMP, HORN, REAR DEFOG, and REAR WASH Fuses Schematic

GM1906757

Courtesy of GENERAL MOTORS CORP.

Fig 26: Fuse Block Schematic - Auxiliary B+ Bus

GM2012136

Courtesy of GENERAL MOTORS CORP.

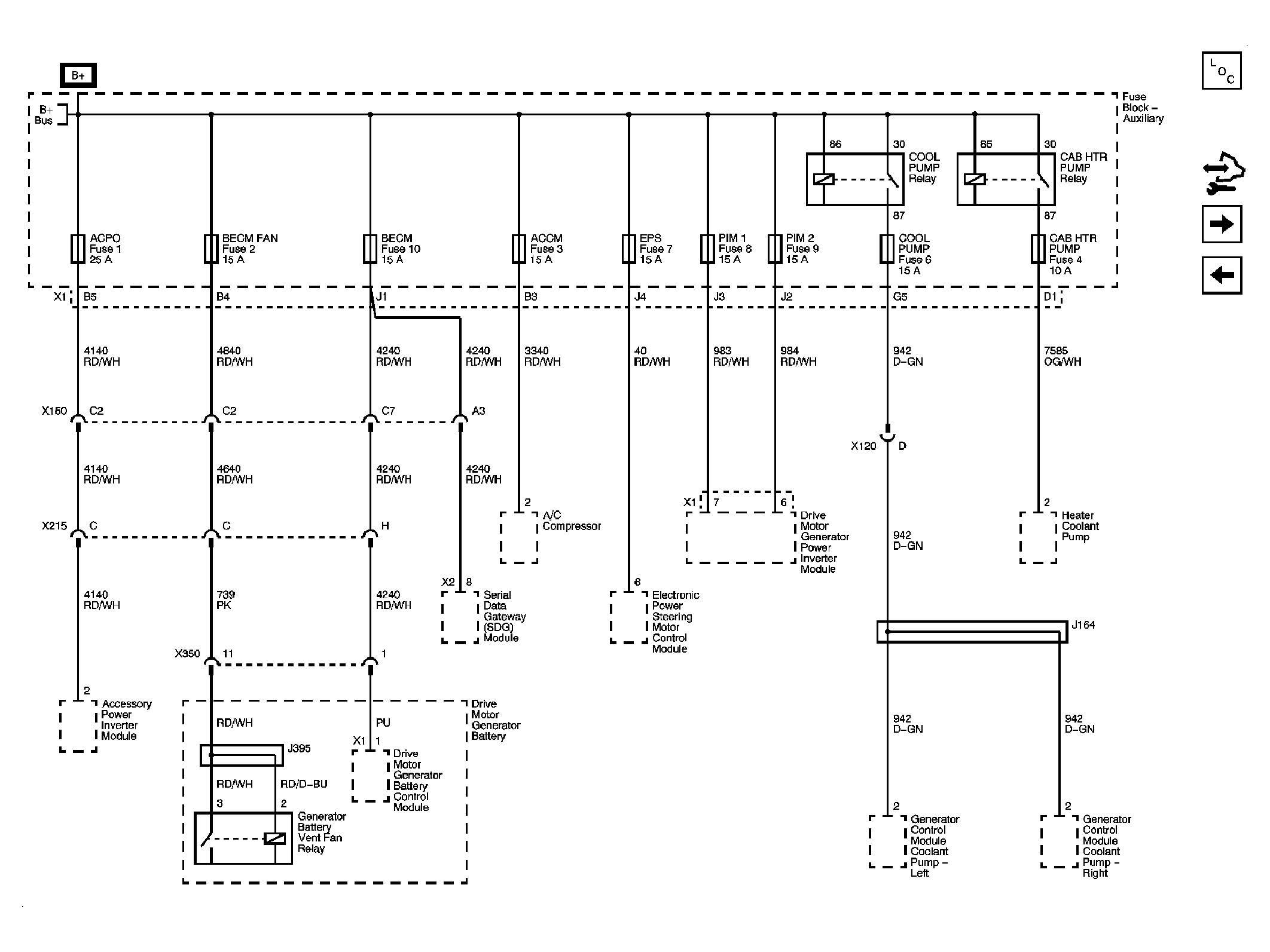

Fig 27: ACCM, ACPO, BECM, BECM FAN, CAB HTR PUMP, COOL PUMP, EPS, PIM 1 and PIM 2 Fuses Schematic

GM2012141

Courtesy of GENERAL MOTORS CORP.

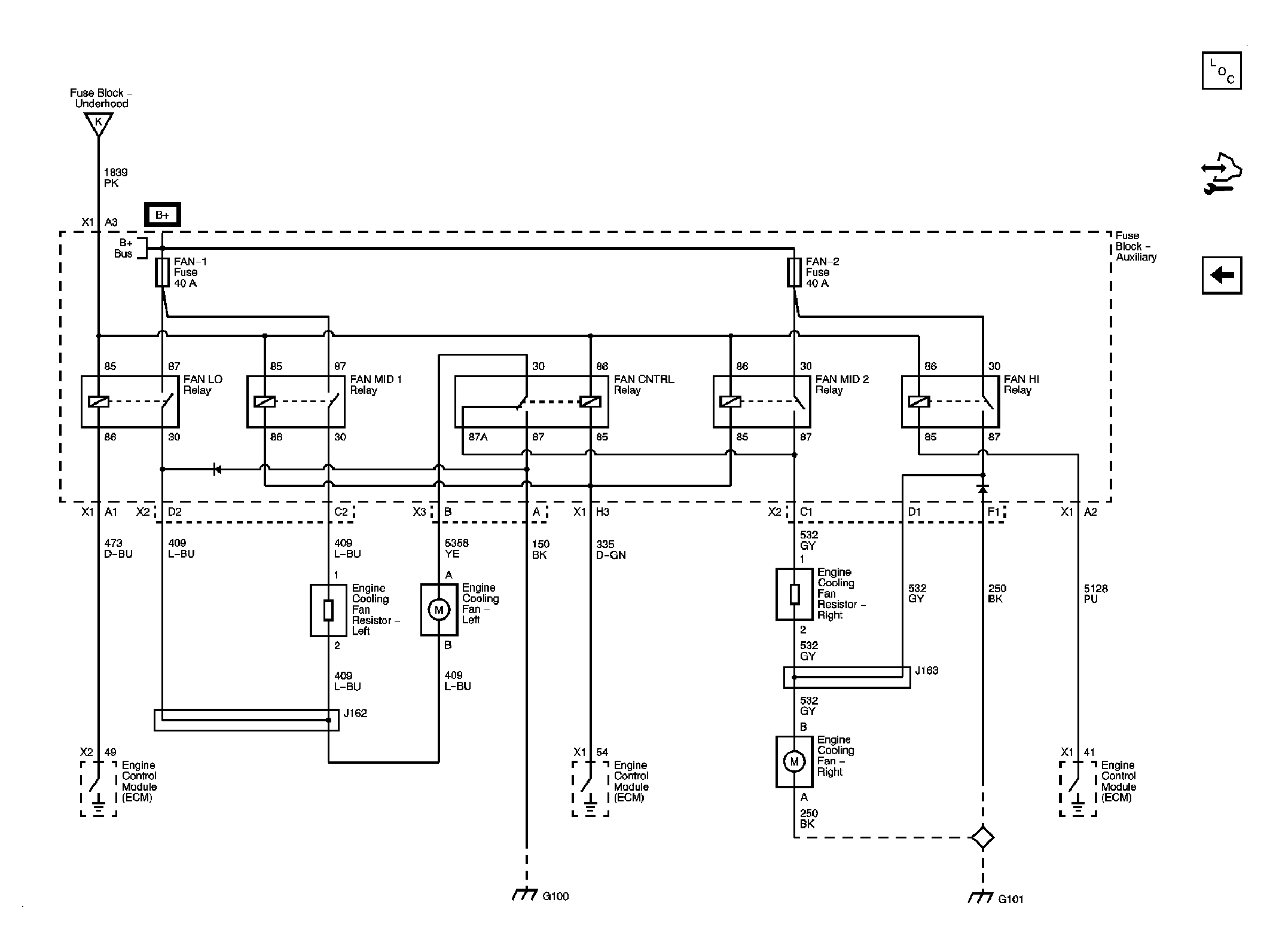

Fig 28: FAN 1 and FAN 2 Fuses Schematic

GM2012146

Courtesy of GENERAL MOTORS CORP.
