Lifter / Lash Adjuster: Service and Repair

Valve Lifter Replacement

Tools Required

J 3049-A Valve Lifter Remover

Removal Procedure




1. Remove the cylinder head and gasket. Refer to Cylinder Head Replacement - Left Side (Cylinder Head Replacement - Left Side) or to Cylinder Head Replacement - Right Side (Cylinder Head Replacement - Right Side).

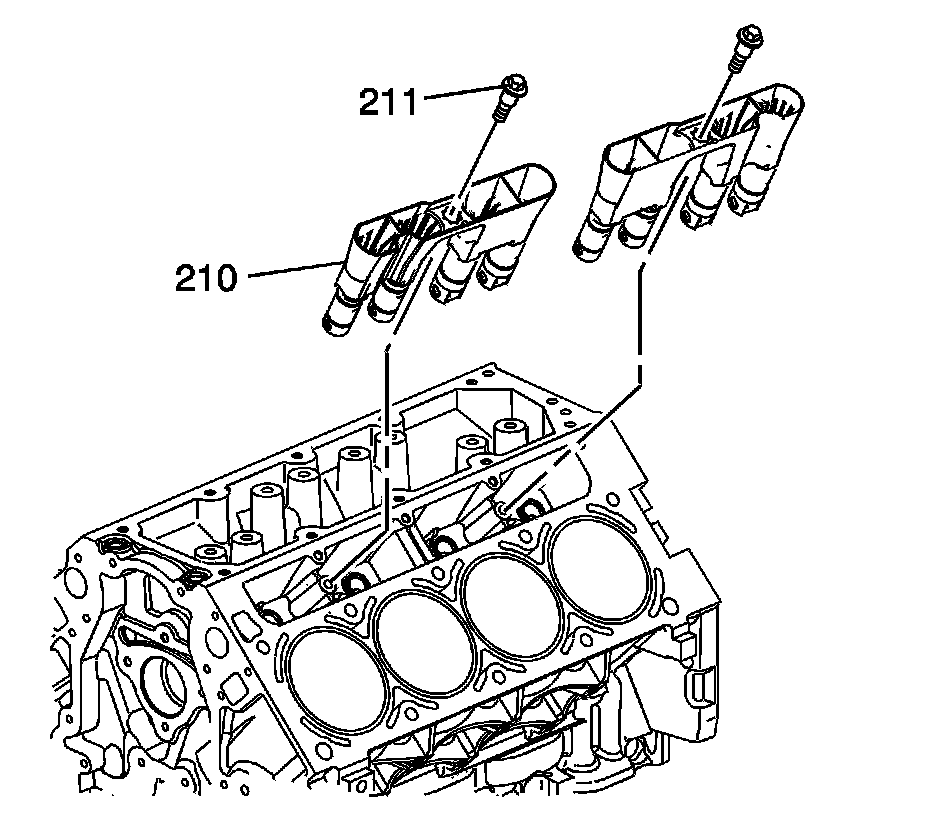

2. Remove the valve lifter. Refer to Valve Lifter Removal (Overhaul).
3. Clean and inspect the valve lifters. Refer to Valve Lifter and Guide Cleaning and Inspection (Overhaul).

Installation Procedure




1. Install the valve lifter. Refer to Valve Lifter Installation (Overhaul).




2. Install the cylinder head and gasket. Refer to Cylinder Head Replacement - Left Side (Cylinder Head Replacement - Left Side) or to Cylinder Head Replacement - Right Side (Cylinder Head Replacement - Right Side).
