Home >> Hummer >> 2009 >> H3 V8-5.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Object Detection Schematics

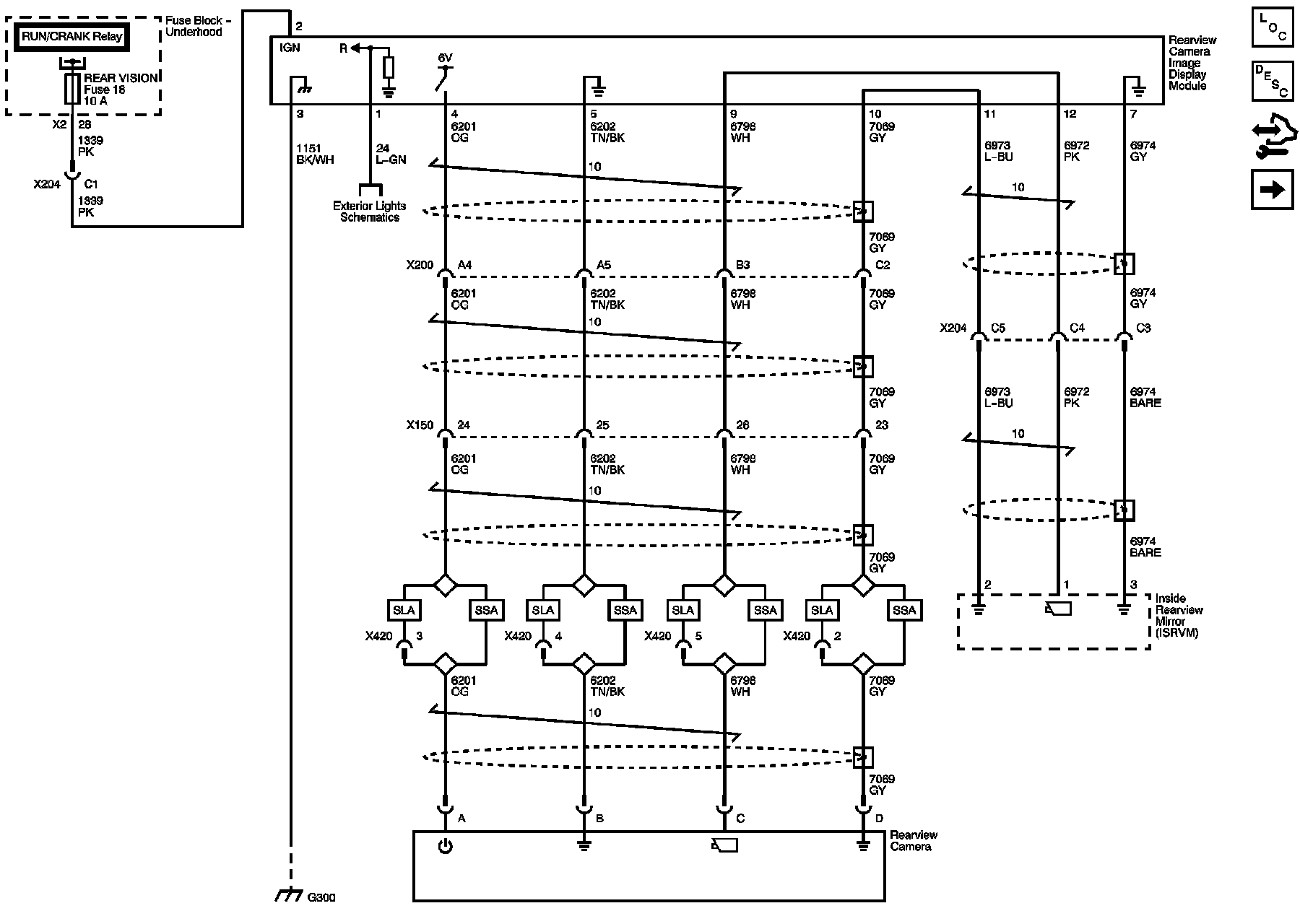

Rearview Camera (SUV with UVC)





Rearview Camera (Truck with UVC)

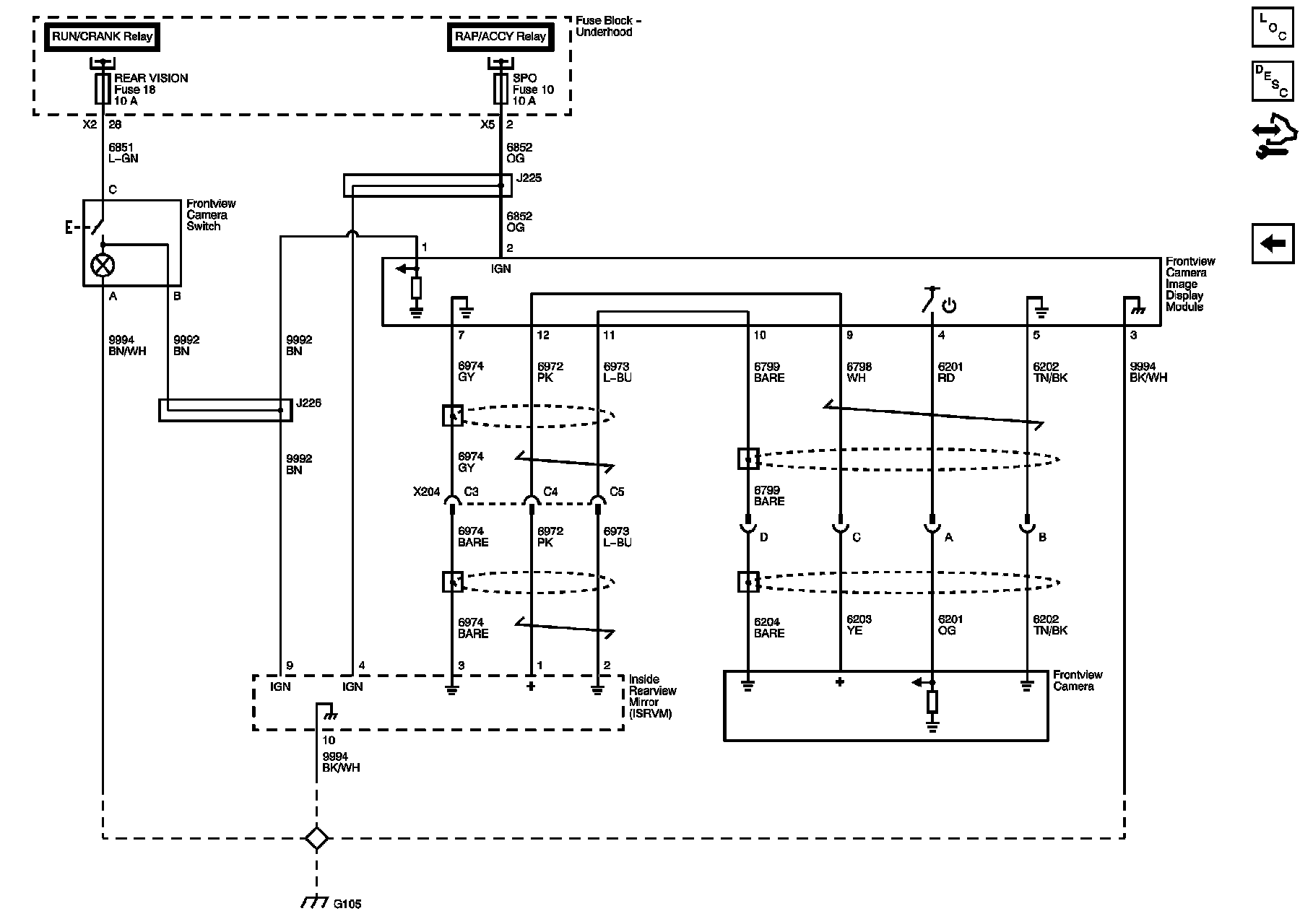

Frontview Camera (SUV with UVF)
