Pickup Box Endgate Latch Handle Bezel Replacement (H3T)

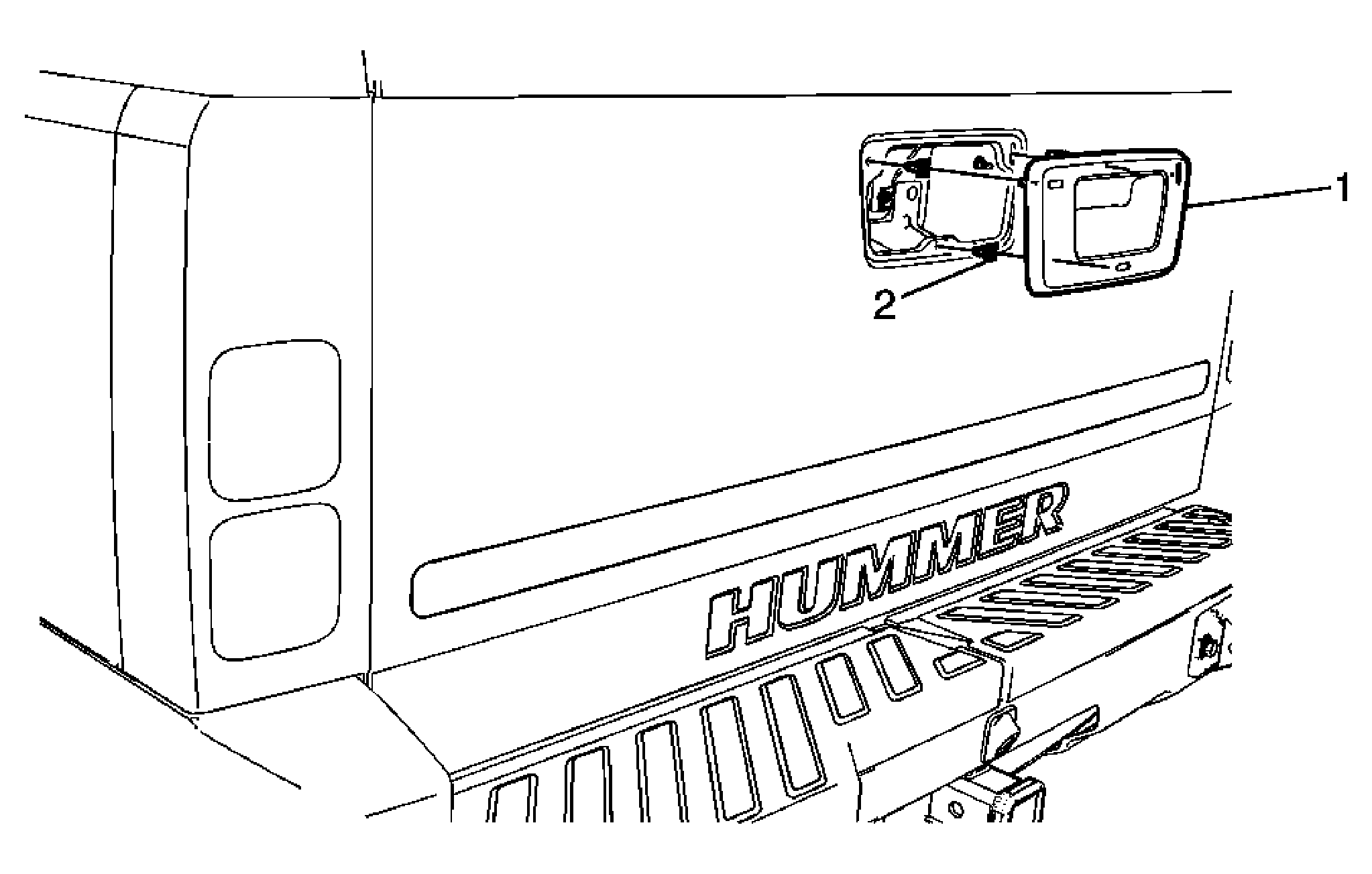

Fig 1: Pickup Box Endgate Latch Handle Bezel Replacement (H3T)
GM2091186Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Pickup Box Endgate Latch Handle Bezel

Procedure

  1. Use masking tape around the latch handle bezel in order to protect the painted surface of the endgate outer panel.
  2. Gently pry outward on the bezel in order to release the three retainer clips from the endgate outer panel.
2 Pickup Box Endgate Latch Handle Bezel Retainer Clips

Procedure

  1. Release the 3 retainer clips securing the bezel to the endgate outer panel.
  2. Lift the endgate latch handle in order to aid in the removal of the latch handle bezel.
