Quarter Panel Lower Rear Molding Replacement

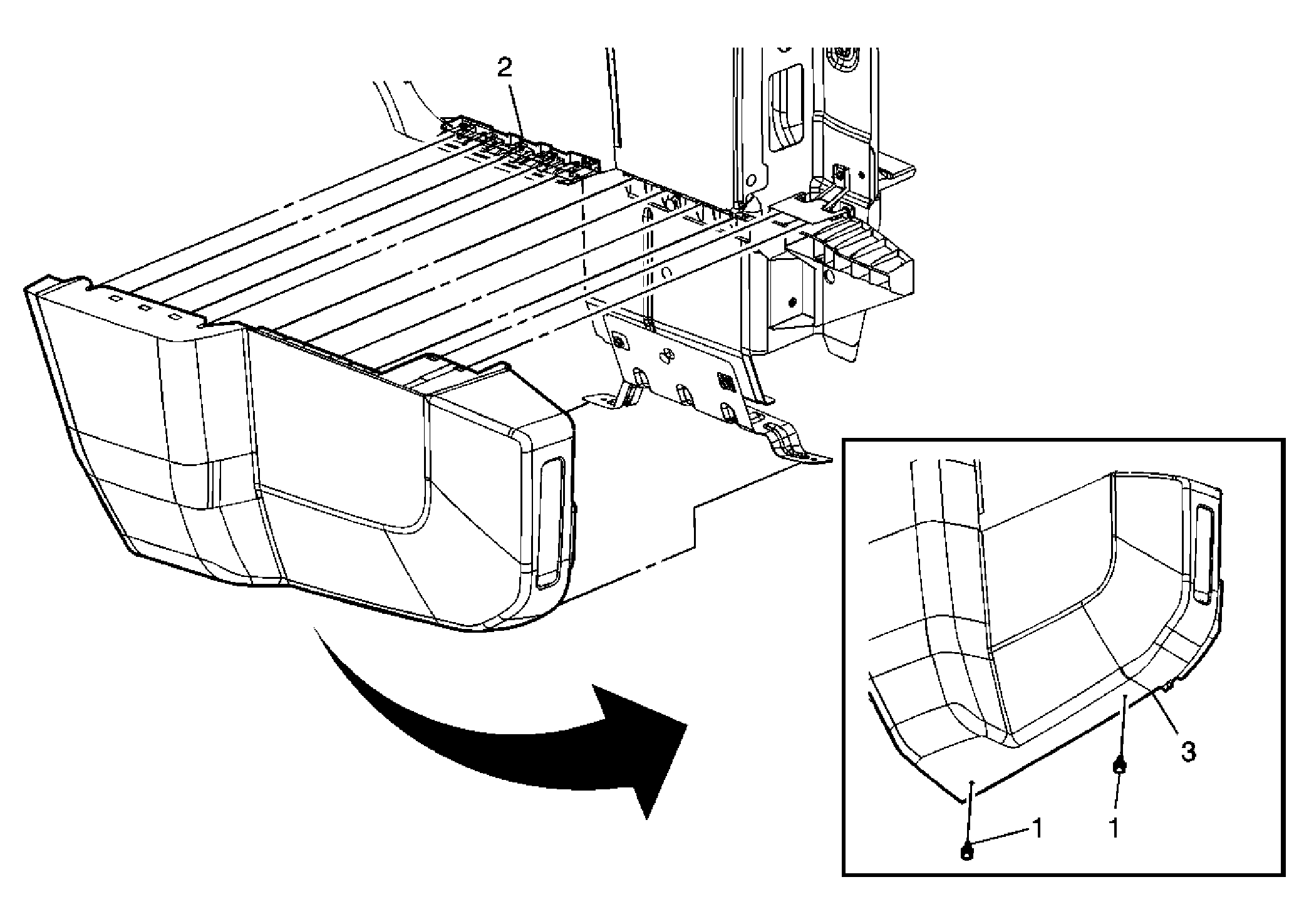

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear inner wheelhouse panel. Refer to Rear Wheelhouse Panel Liner Replacement (Pickup) or Rear Wheelhouse Panel Liner Replacement (SUV) . |
|
| 1 | Quarter Panel Lower Rear Molding Plastic Retainer (Qty: 2) |
| 2 | Quarter Panel Lower Rear Molding Retainer Tab Procedure: Carefully push a small nylon wedge between the molding and the quarter panel. Insert a small flat-bladed tool into the molding slot and depress the retainer tabs one at a time and pull on the molding at the same time to gradually remove the molding from the quarter panel. |
| 3 | Quarter Panel Lower Rear Molding |
