Hood Primary and Secondary Latch Replacement

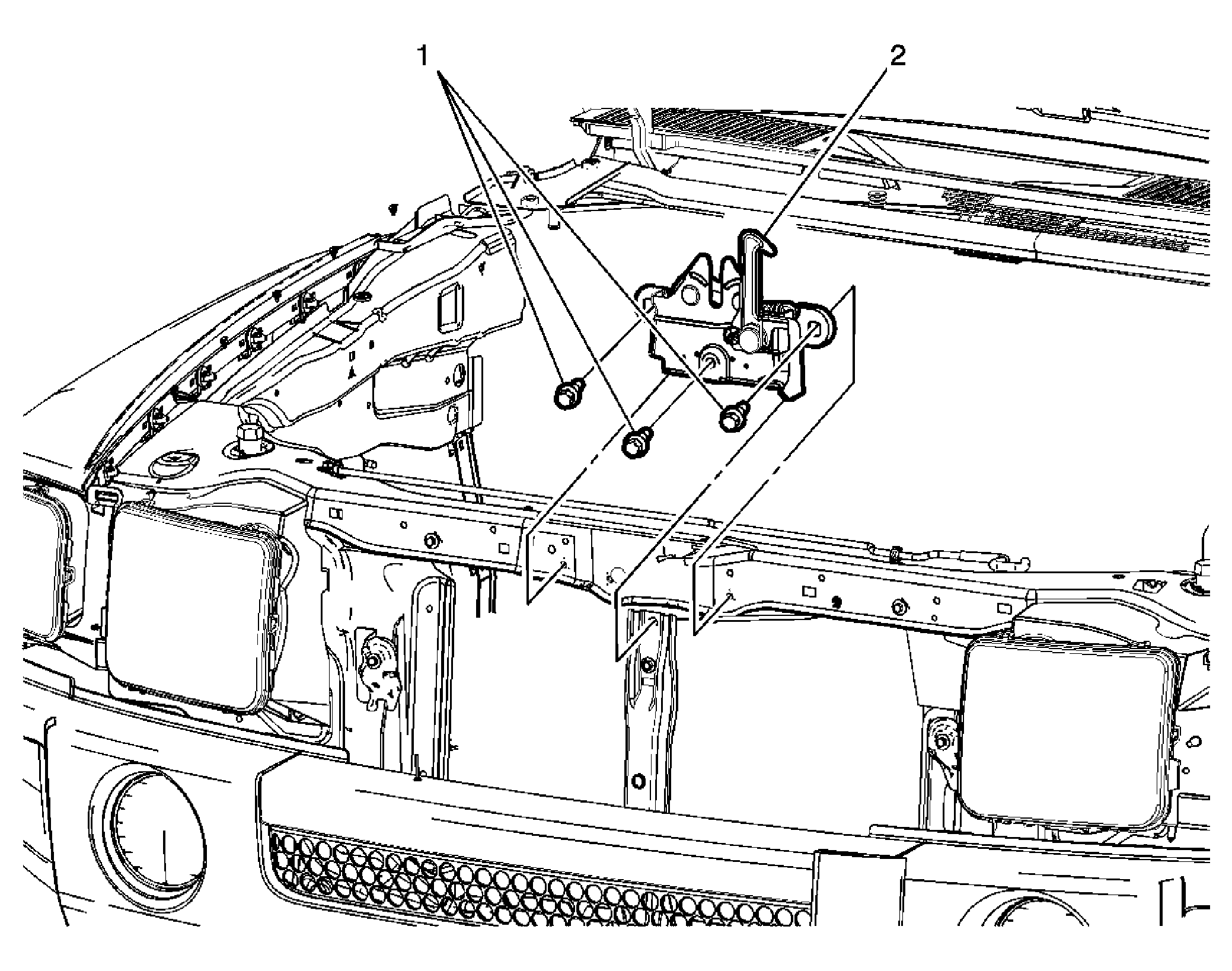

Fig 1: Hood Latch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the grille support. Refer to Radiator Grille Reinforcement Support Replacement .
1	Hood Latch Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Hood Latch Procedure:  Disconnect the hood release cable.
