Fuel Tank Filler Pipe Housing Replacement

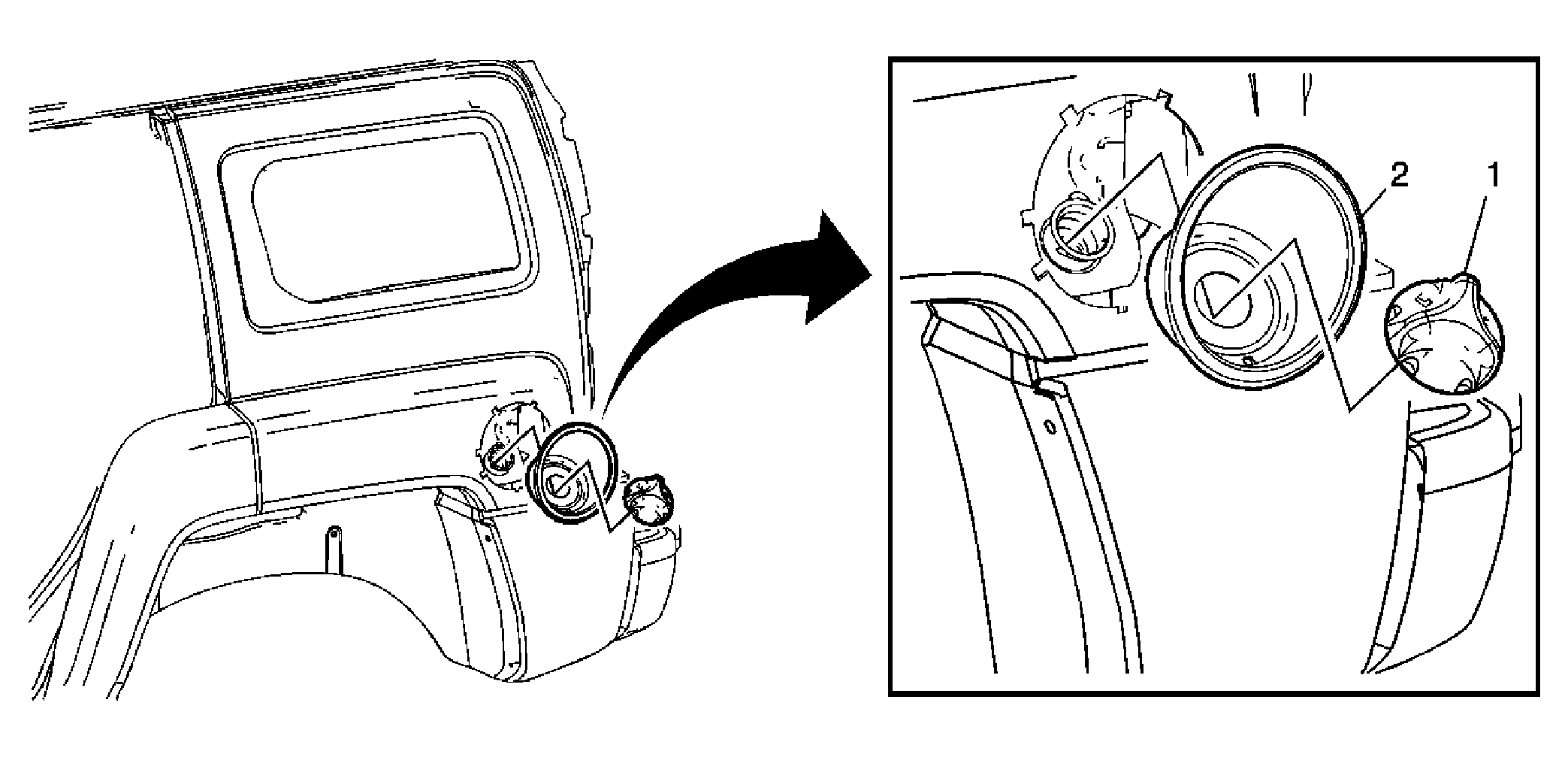

Fig 1: Fuel Tank Filler Pipe Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Cap, Fuel
2	Pocket, Fuel Filler Tip:  Disengage locking tabs by pulling on the outer edge of the pocket while working around the circumference.
