Rear Side Door Inside Handle Replacement

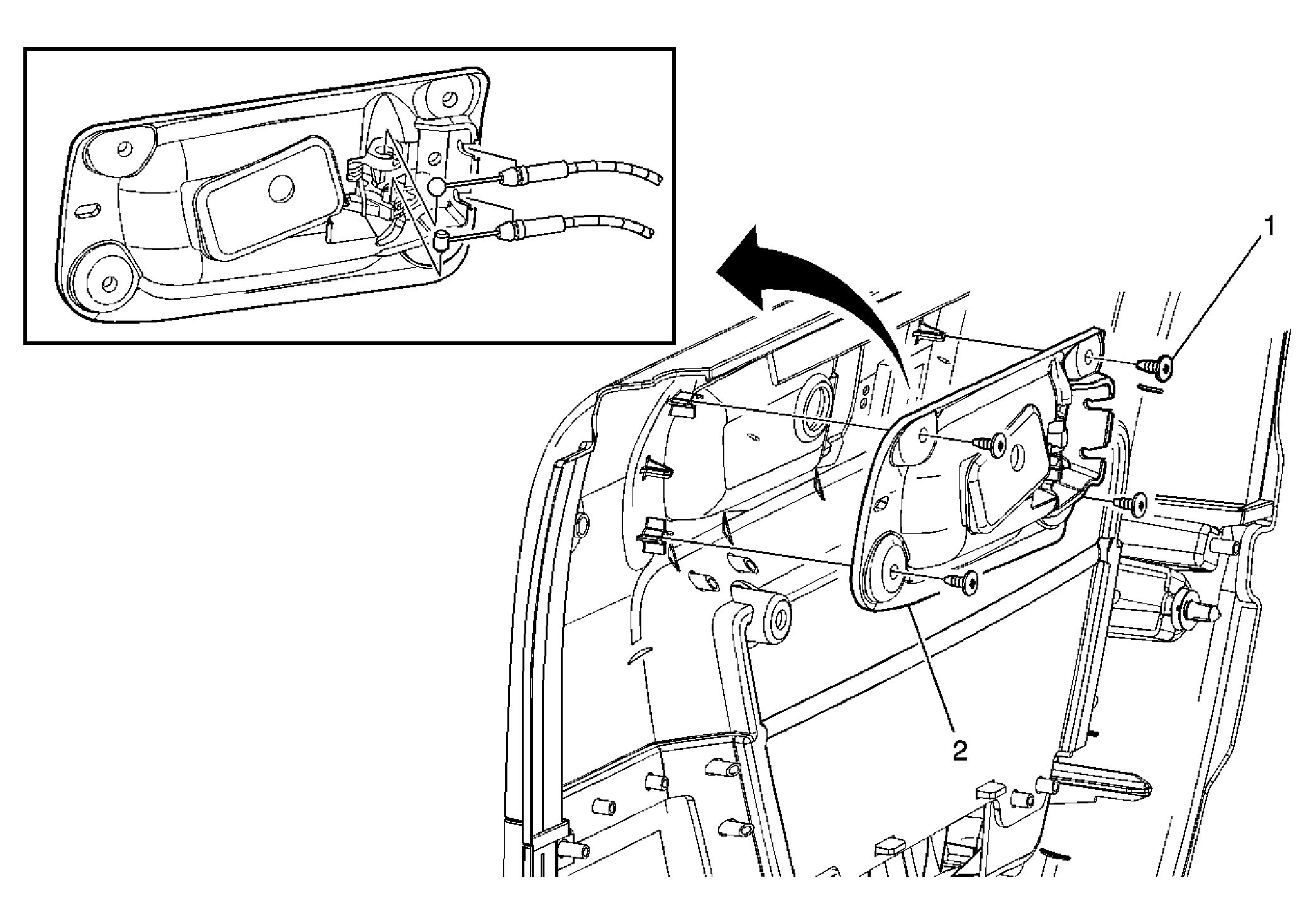

Fig 1: Door Handle Replacement - Rear Inside
GM1558198Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Screw, Inside Door Handle (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Handle Assembly, Inside Door
Tip:
Prior to removal, note location of cable to aid in assembly and to ensure proper installation.
