Tail Lamp Replacement (H3T)

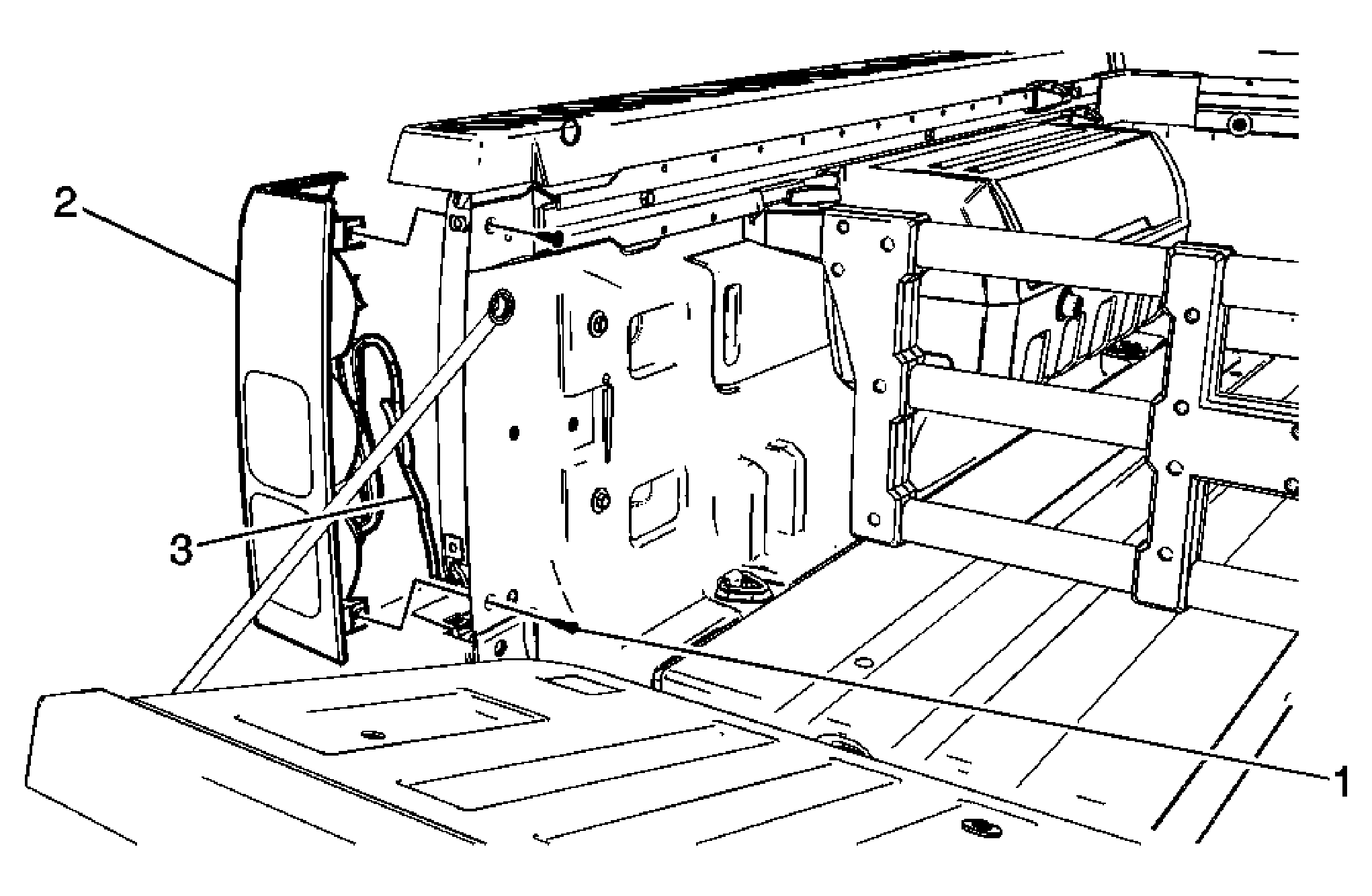

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the endgate in order to access the rear taillamp assembly screws. |
|
| 1 | Tail Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Tail Lamp Assembly Tip: Pull lamp housing outward in order to release the exterior side pin retainers. |
| 3 | Tail Lamp Electrical Harness
WARNING:
Refer to Halogen Bulb Warning
. Tip: Disconnect all three bulb sockets from the tail lamp housing. |
