Tail Lamp Replacement (H3)

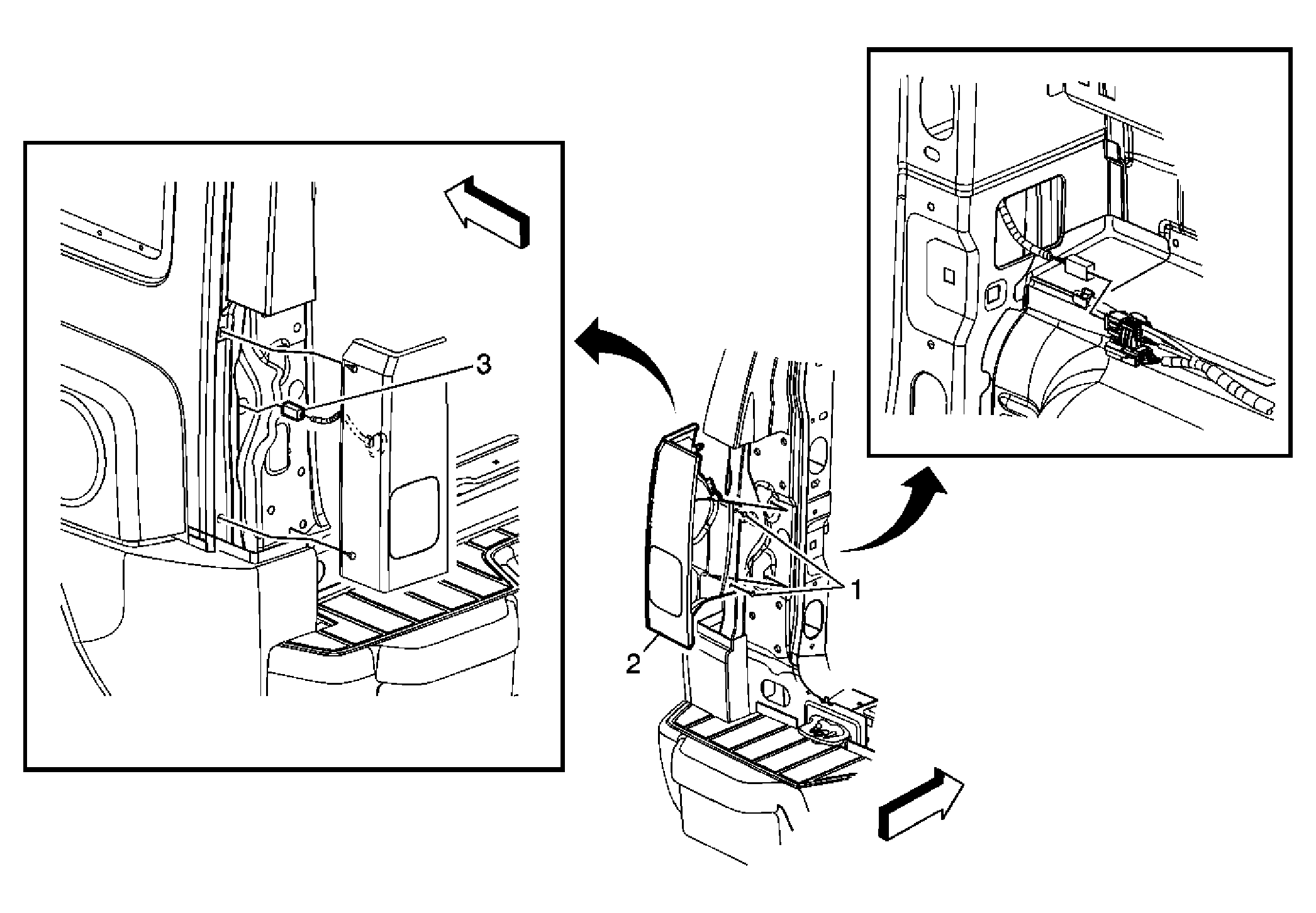

Fig 1: Tail Lamp Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open the endgate in order to access the left rear tail lamp assembly screws.
1	Tail Lamp Housing Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Pull lamp housing outward in order to release the exterior side pin retainers. Tighten: 3 N.m (26 lb in)
2	Tail Lamp Assembly Tip: Disconnect the bulb sockets from the lamp housing by rotating counterclockwise.
3	Tail Lamp Electrical Connector
