Rear Side Door Rear Auxiliary Weatherstrip Replacement

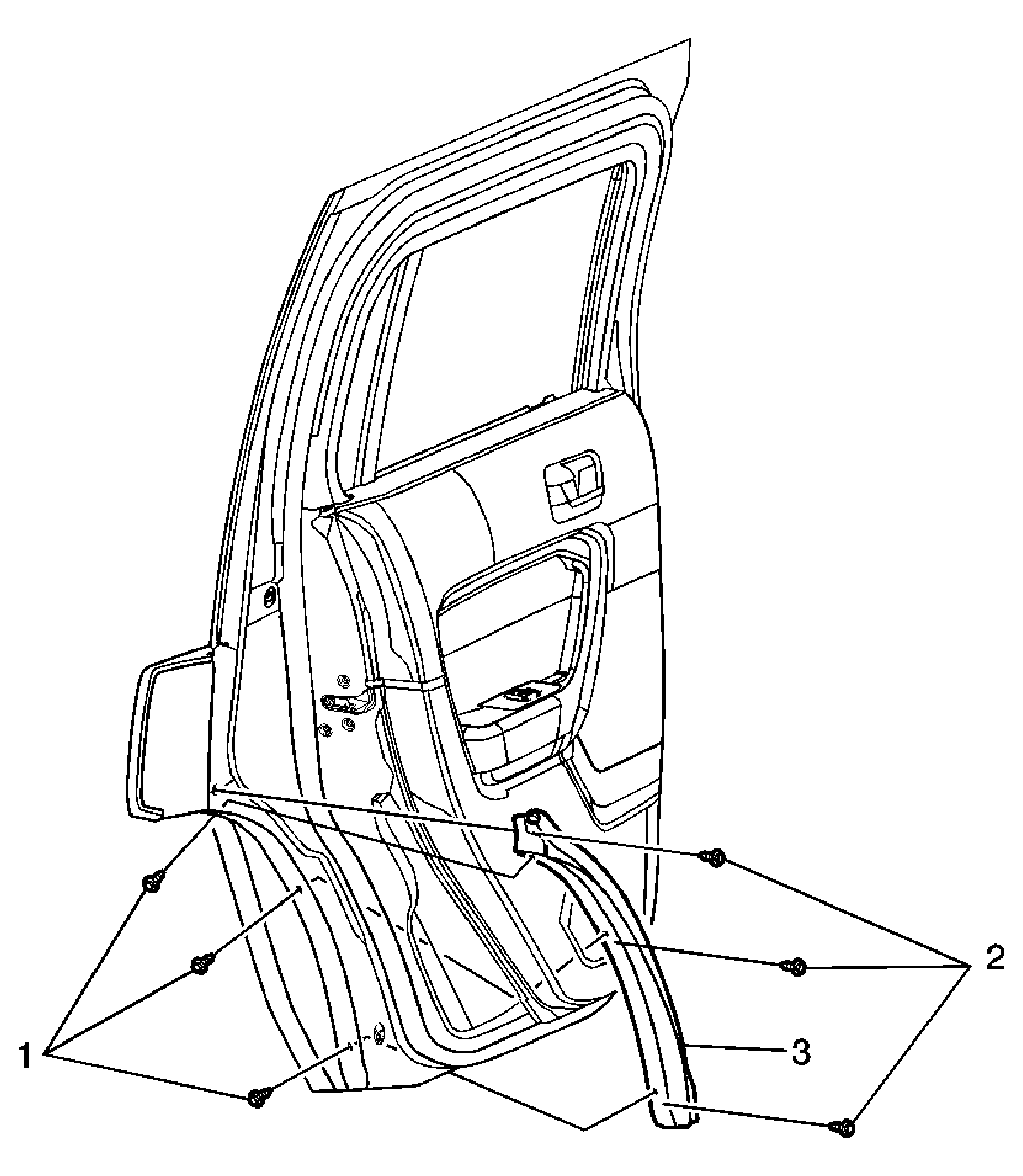

Fig 1: Weatherstrip Replacement - Rear Side Door - Rear Auxiliary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Retainer, Push-in (Qty: 3) Tip:  Use a J 38778  Door Trim Pad Clip Remover or equivalent to remove the retainers.
2	Retainer, Push-in (Qty: 3) Tip:  Use a J 38778  Door Trim Pad Clip Remover or equivalent to remove the retainers.
3	Weatherstrip, Rear Side Door - Rear Auxiliary
