Pickup Box Endgate Liner Replacement (H3T)

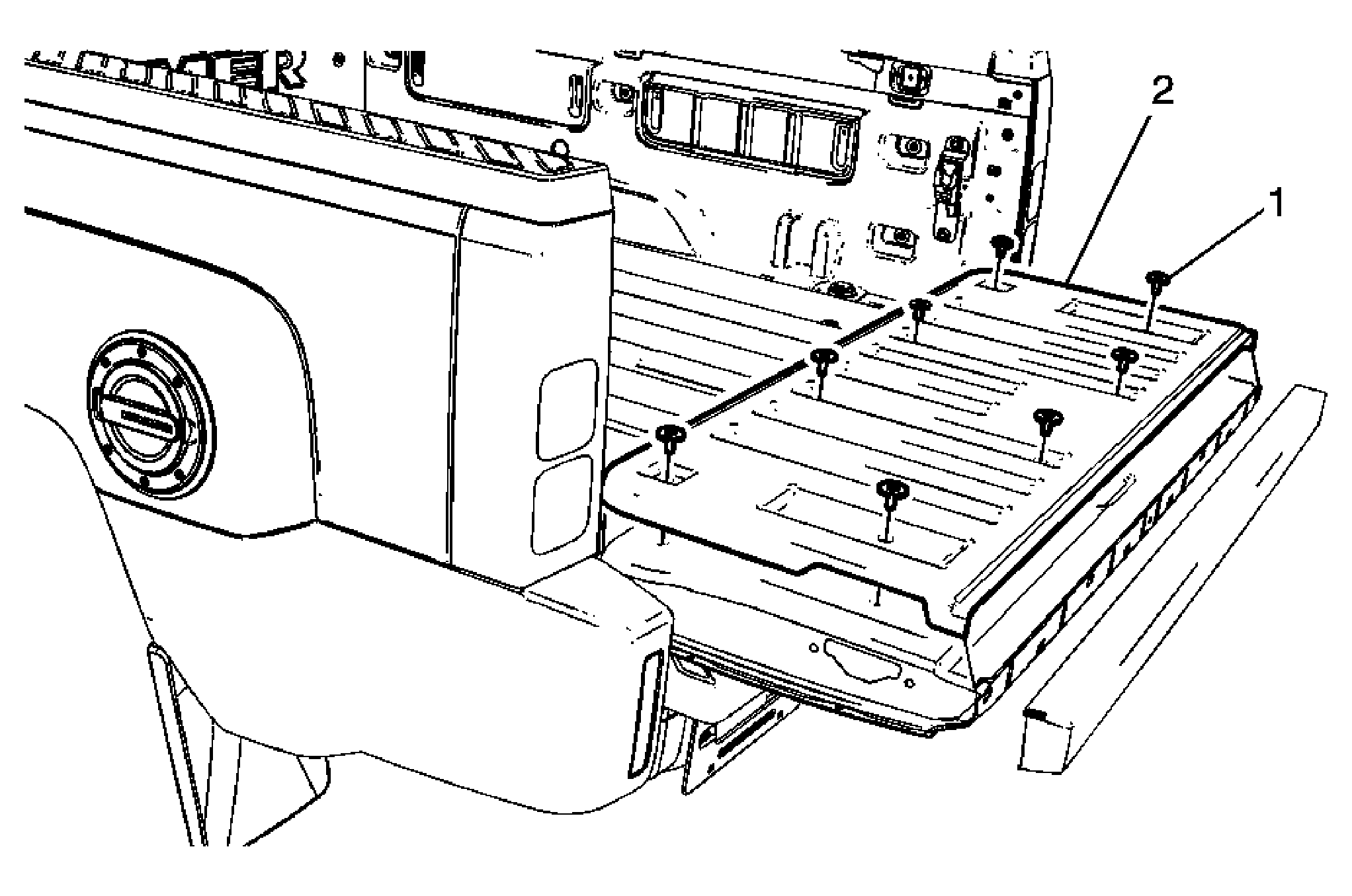

Fig 1: Pickup Box Endgate Liner Replacement (H3T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Open the end gate in order to remove the end gate liner assembly.
1	Pick Up Box End Gate Liner Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten:  7 N.m (62 lb in)
2	Pick Up Box End Gate Liner Tip:  Pull the top endgate liner edge from under the end gate upper finish molding end cap.
