Hood Rear Outer Seal Replacement

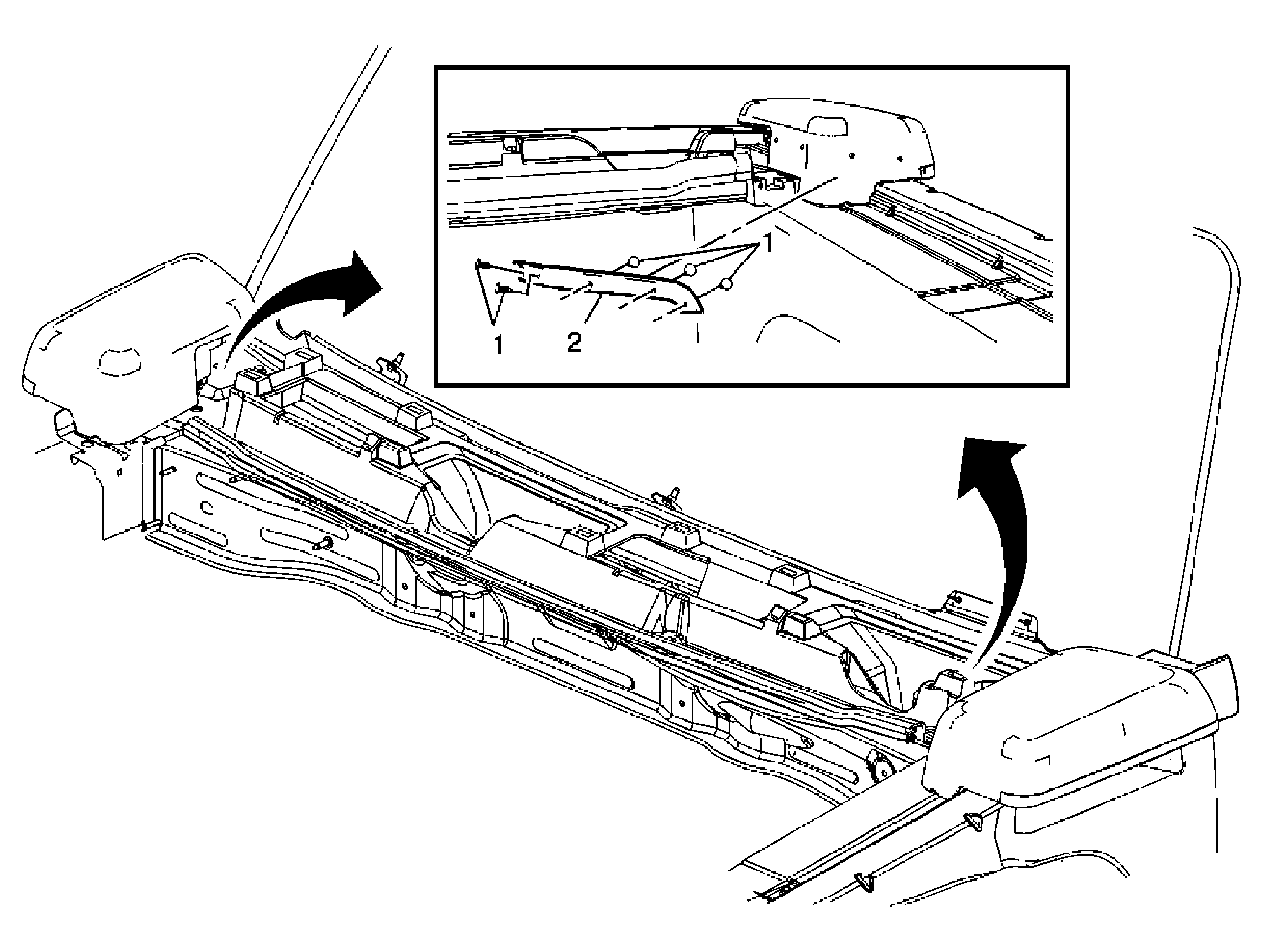

Fig 1: Hood Outer Seal Replacement
GM1708925Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Push In Retainers (Qty: 8)
2 Hood Rear Side Seal
