Hood Bumper Replacement

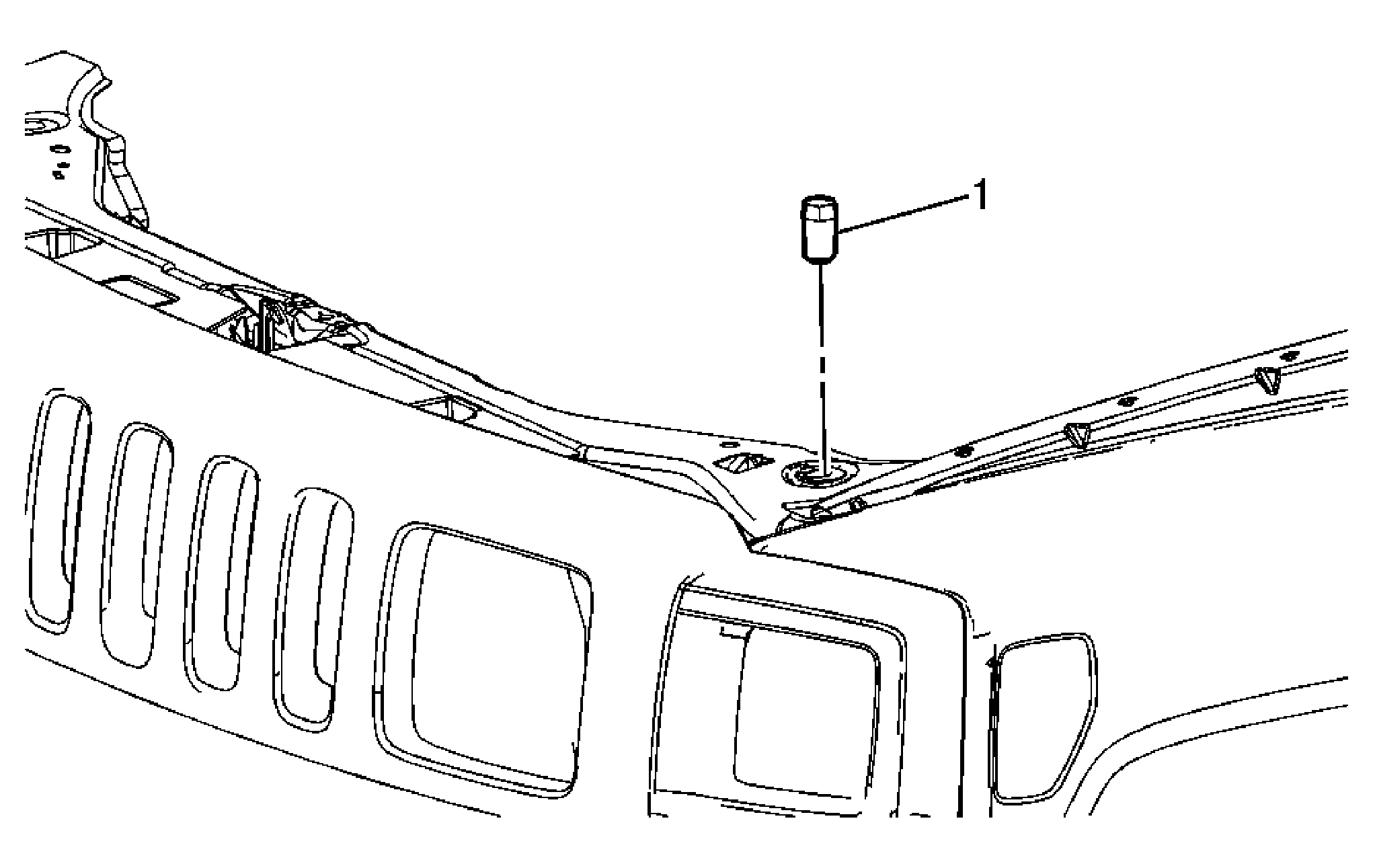

Fig 1: Hood Bumper Replacement
GM1557253Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bumper, Hood Bumper
Tip:  Adjust bumper as necessary.
