Endgate Lower Hinge Replacement - Body Side

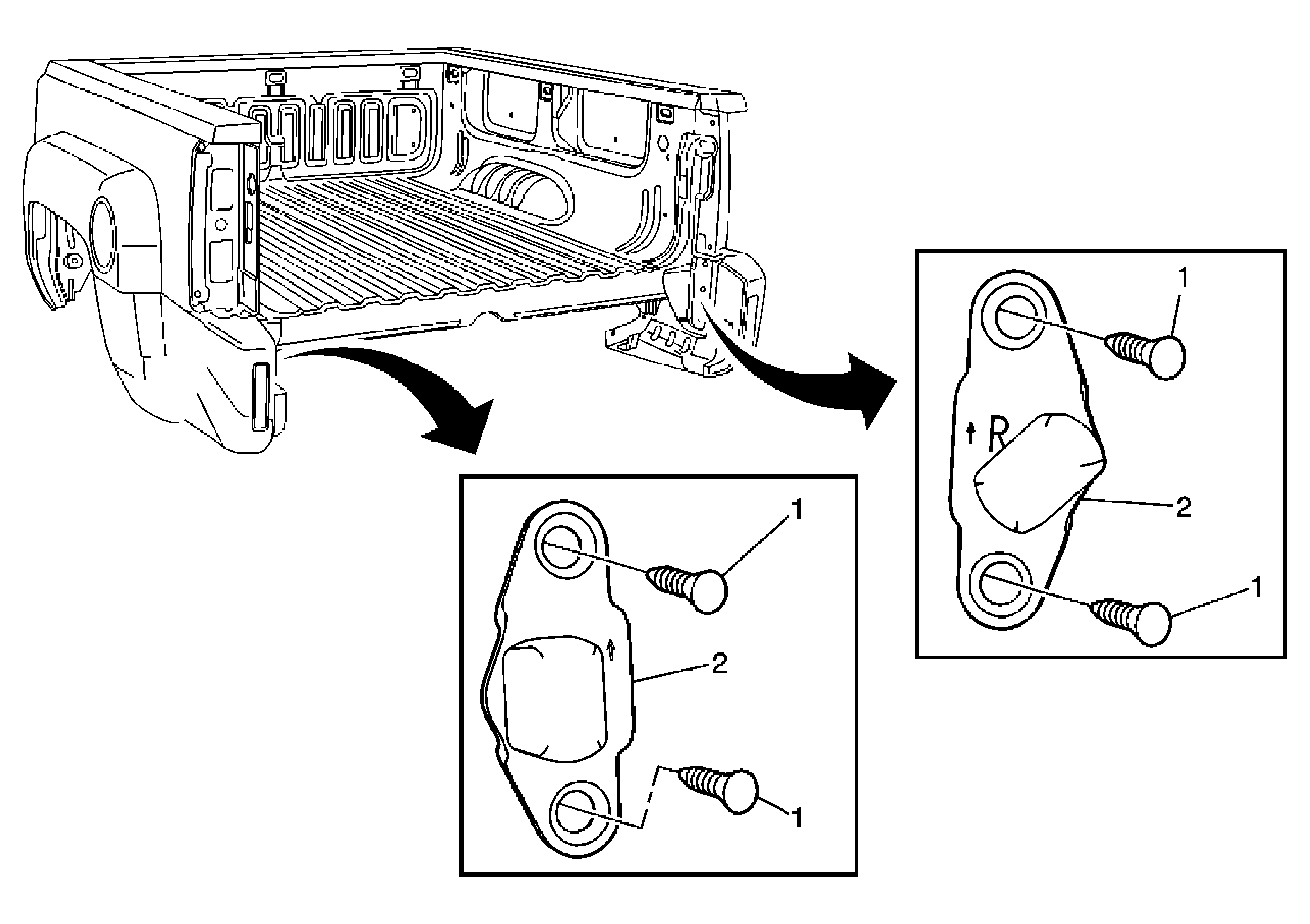

Fig 1: Endgate Lower Hinge Replacement - Body Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the pickup box endgate. Refer to Endgate Replacement .
1	Endgate Lower Hinge (Body Side) Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tip:  If necessary, adjust the hinges. Refer to Endgate Adjustment . Tighten:  40 N.m (30 lb ft)
2	Endgate Lower Hinge (Body Side)
