Horn Switch

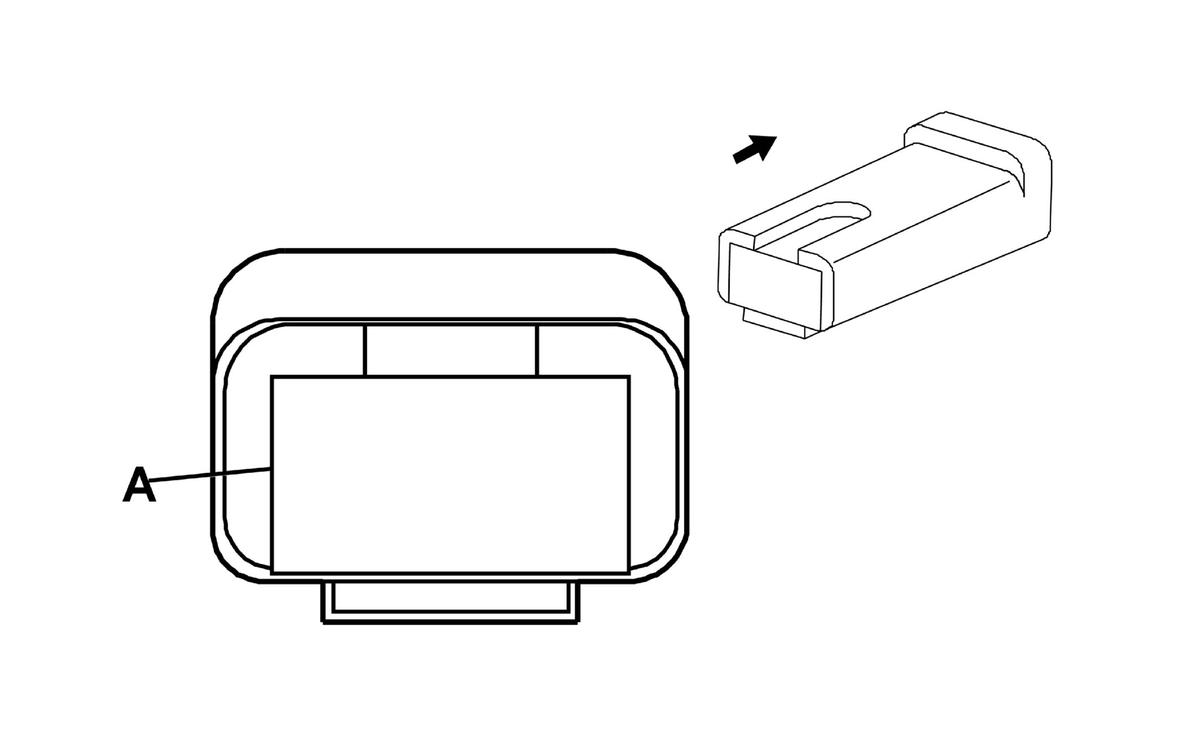

Fig 1: Horn Switch - Connector End View
GM1542249Courtesy of GENERAL MOTORS CORP.
Horn Switch

Pin Wire Circuit Function
A D-GN 28 Horn Relay Control
Connector Part Information
  • Harness: Inflatable Restraint Steering Wheel Module Coil
  • OEM: 7323-2511-30
  • Service: Service as Assembly
  • Description: 1-Way F (BK)
