Front Bumper Fascia Replacement

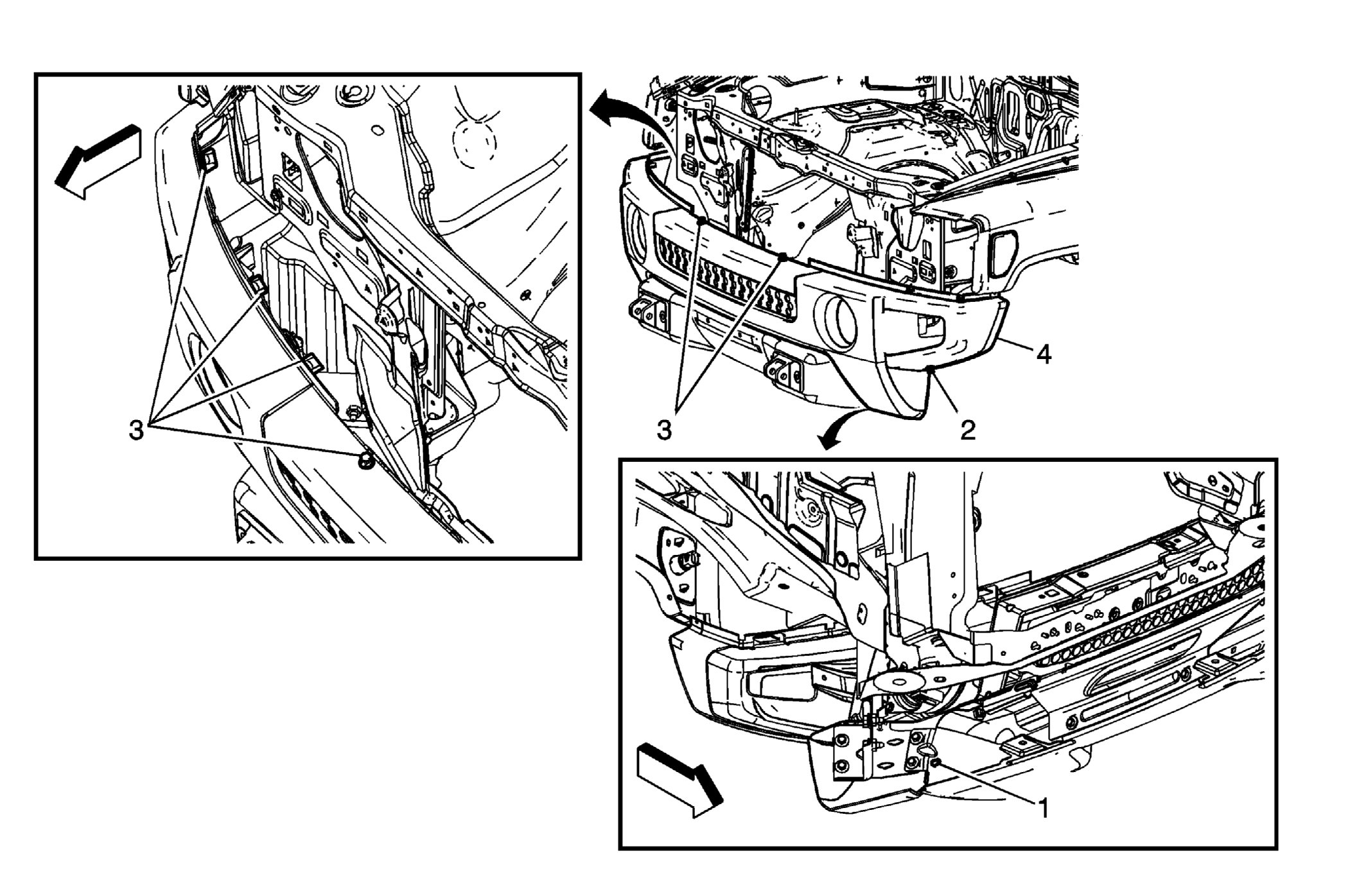

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove radiator grille reinforcement support. Refer to Radiator Grille Reinforcement Support Replacement . |
|
| 1 | Front Fascia Plastic Retainer (Qty: 2) |
| 2 | Front Fascia Plastic Retainer (Qty: 2) |
| 3 | Front Fascia Plastic Retainer (Qty: 2) Tip: Use a small flat-bladed screwdriver to remove the six metal retaining clips on the top of the fascia to disengage it from the intermediate filler. |
| 4 | Front Fascia Tip: The lower portion of the fascia is held in place by several plastic tabs that engage in slots in the bumper intermediate filler. Use firm pressure to disengage but be careful not to damage the front fascia while removing it. |
