Spare Tire Carrier Replacement

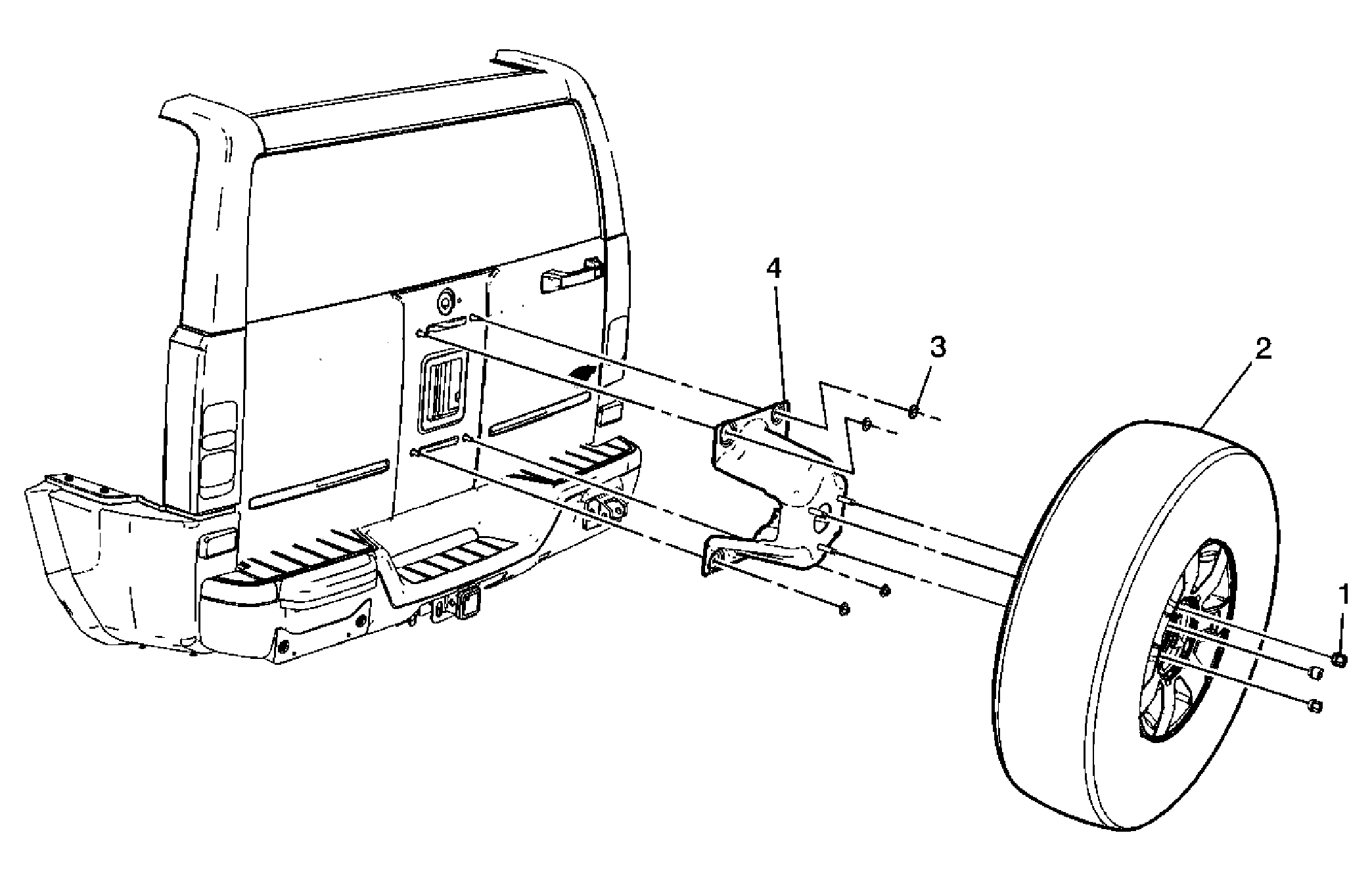

Fig 1: View Of Spare Tire Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the spare wheel stowage cover. Refer to Spare Wheel Stowage Outer Cover Replacement (SUV) .
1	Wheel Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 125 N.m (92 lb ft)
2	Spare Tire
3	Spare Tire Carrier Bolt (Qty: 4) Tighten: 50 N.m (37 lb ft)
4	Spare Tire Carrier
