SIR Schematics

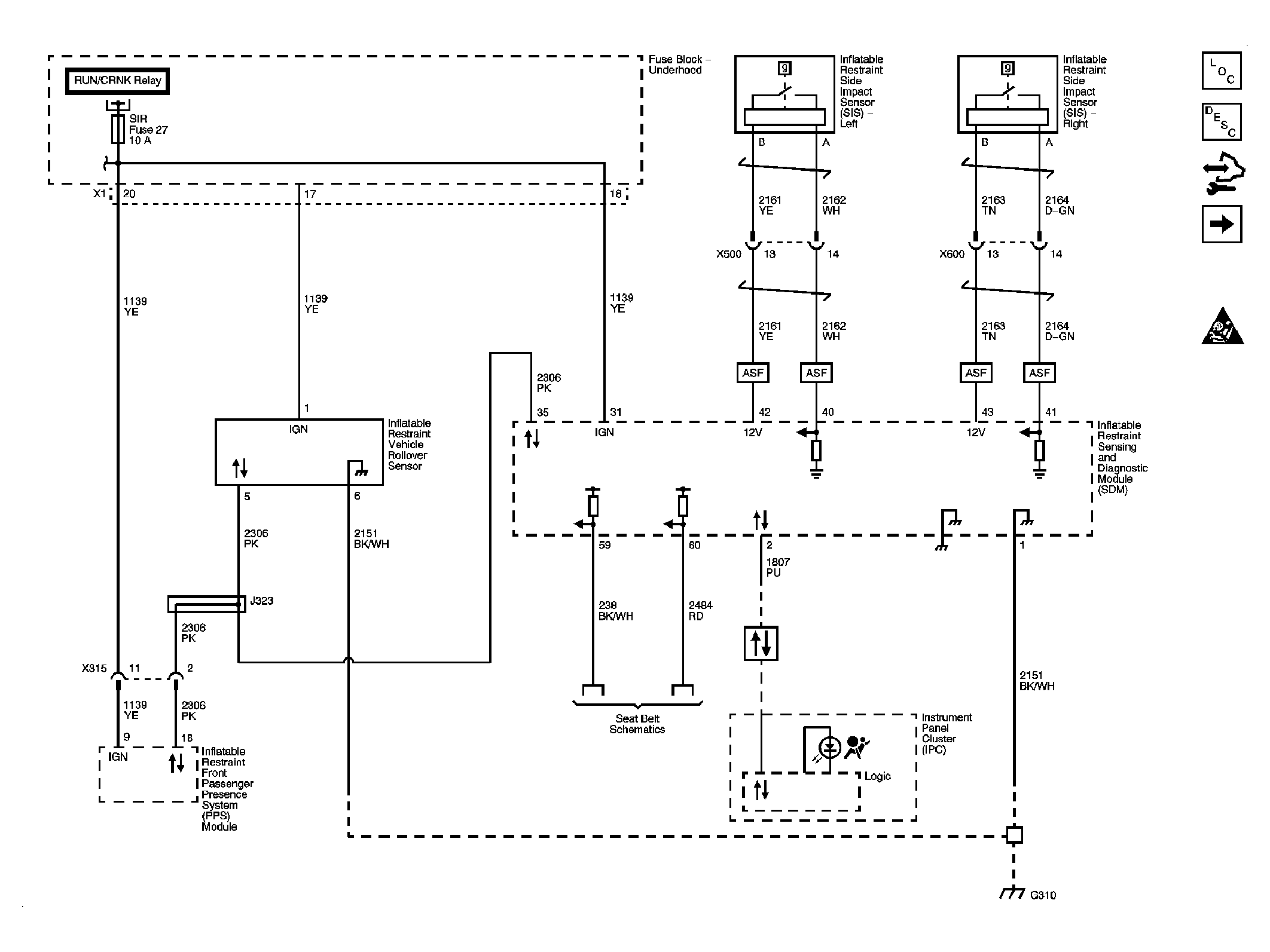

Fig 1: Module Power, Ground, Serial Data, Impact Sensors, and Indicators Schematic
GM2080570Courtesy of GENERAL MOTORS CORP.

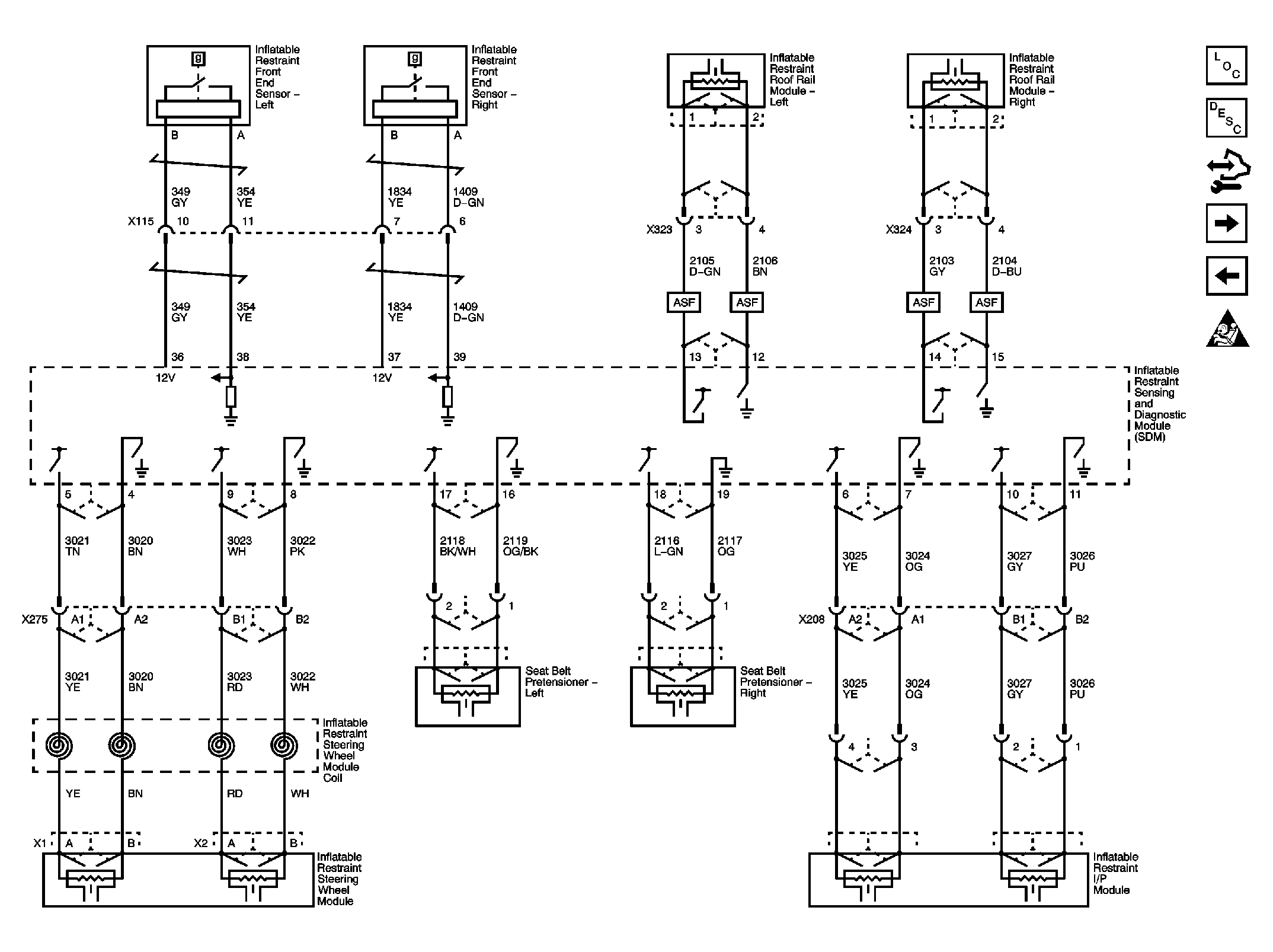

Fig 2: Inflator Modules Schematic
GM2080573Courtesy of GENERAL MOTORS CORP.

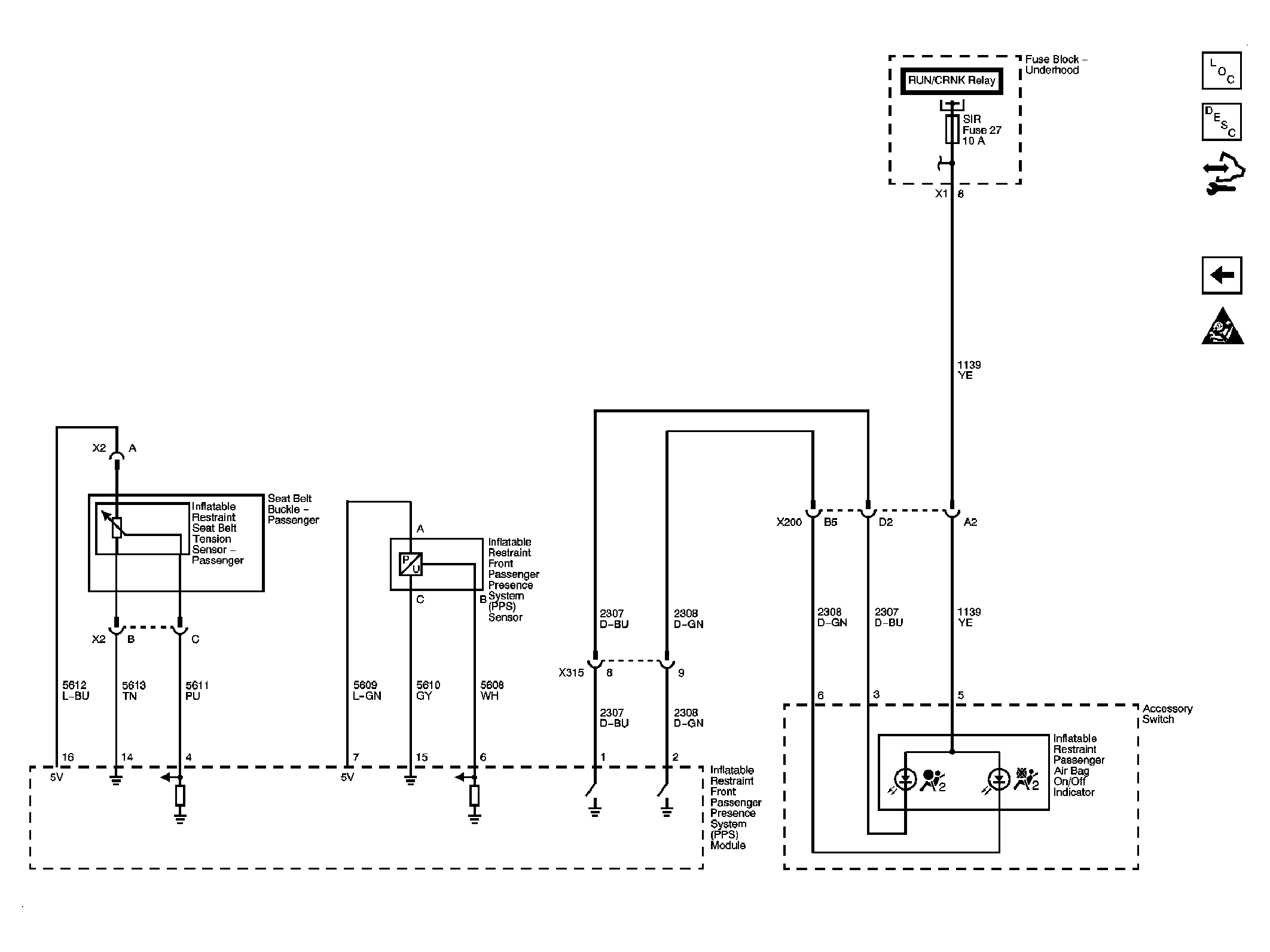

Fig 3: Passenger Presence Controls Schematic
GM2080574Courtesy of GENERAL MOTORS CORP.
