Instrument Cluster Schematics

Fig 1: Power, Ground, and Serial Data Schematic
GM2080405Courtesy of GENERAL MOTORS CORP.
Fig 2: Gages Schematic
GM2080410Courtesy of GENERAL MOTORS CORP.

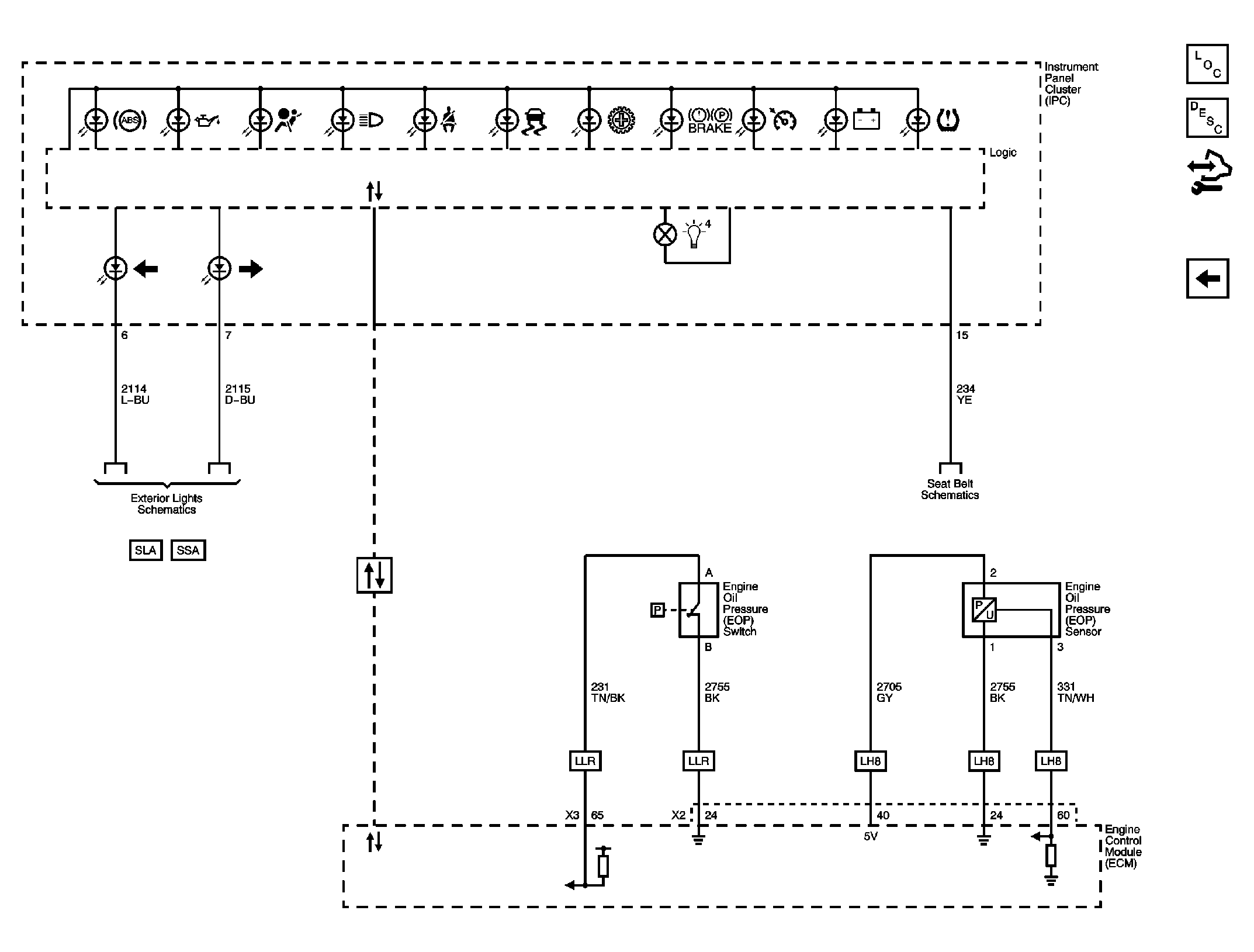

Fig 3: Indicators Schematic
GM2080412Courtesy of GENERAL MOTORS CORP.
