Heated/Cooled Seat Schematics

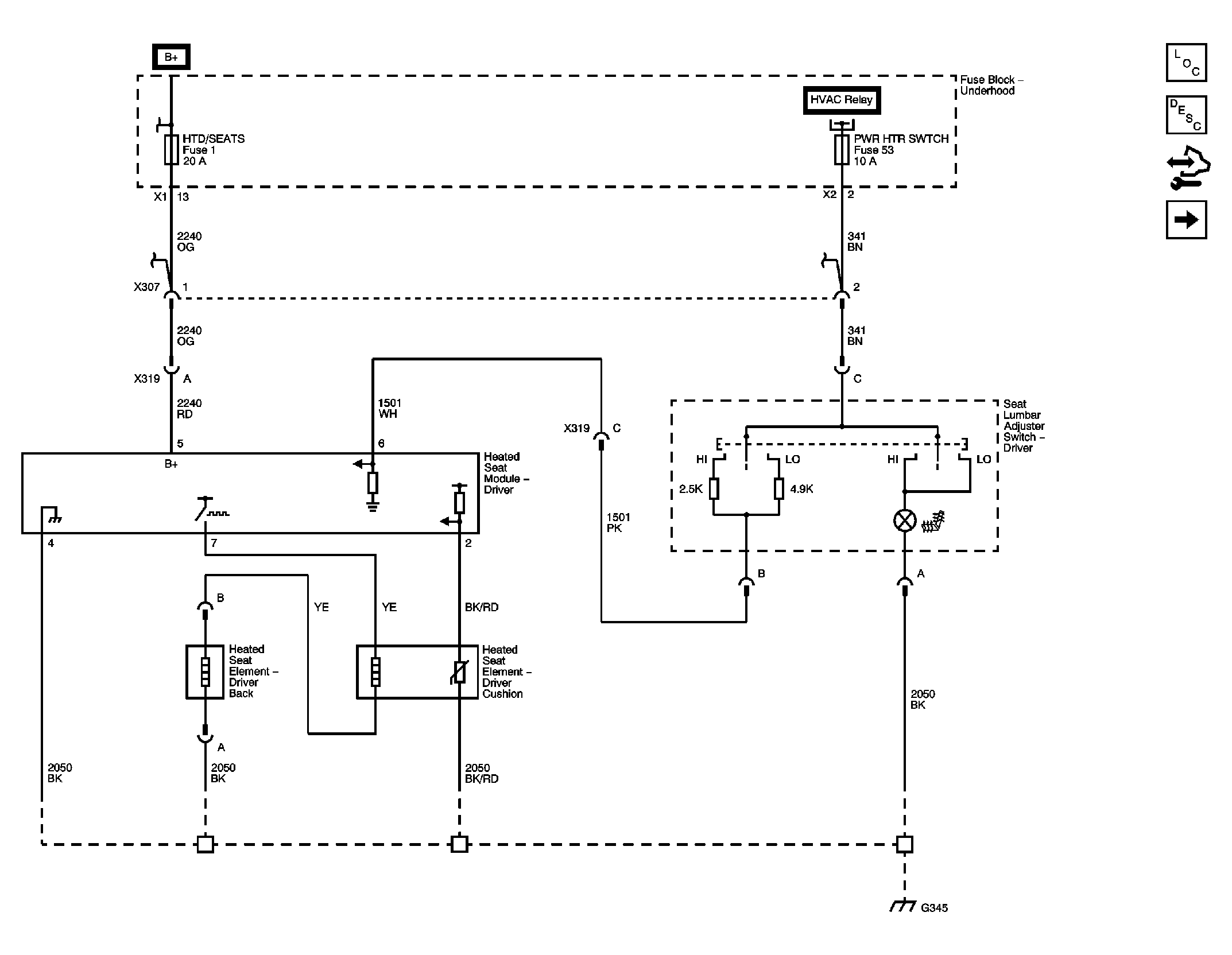

Fig 1: Driver Seat Schematic

GM2080565

Courtesy of GENERAL MOTORS CORP.

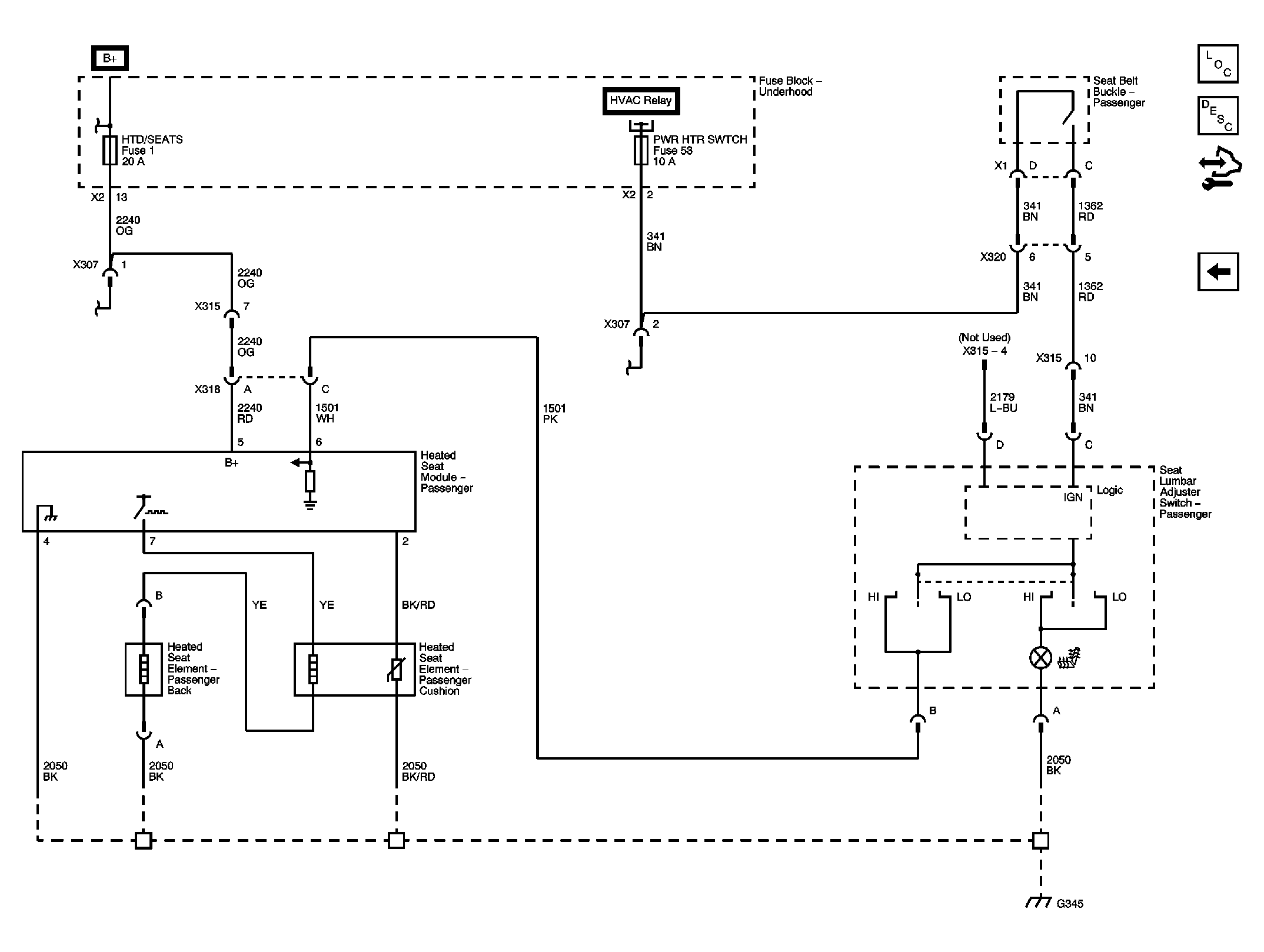

Fig 2: Passenger Seat Schematic

GM2080566

Courtesy of GENERAL MOTORS CORP.
