Rear Window Wiper Motor (C25)
Rear Window Wiper Motor (C25)

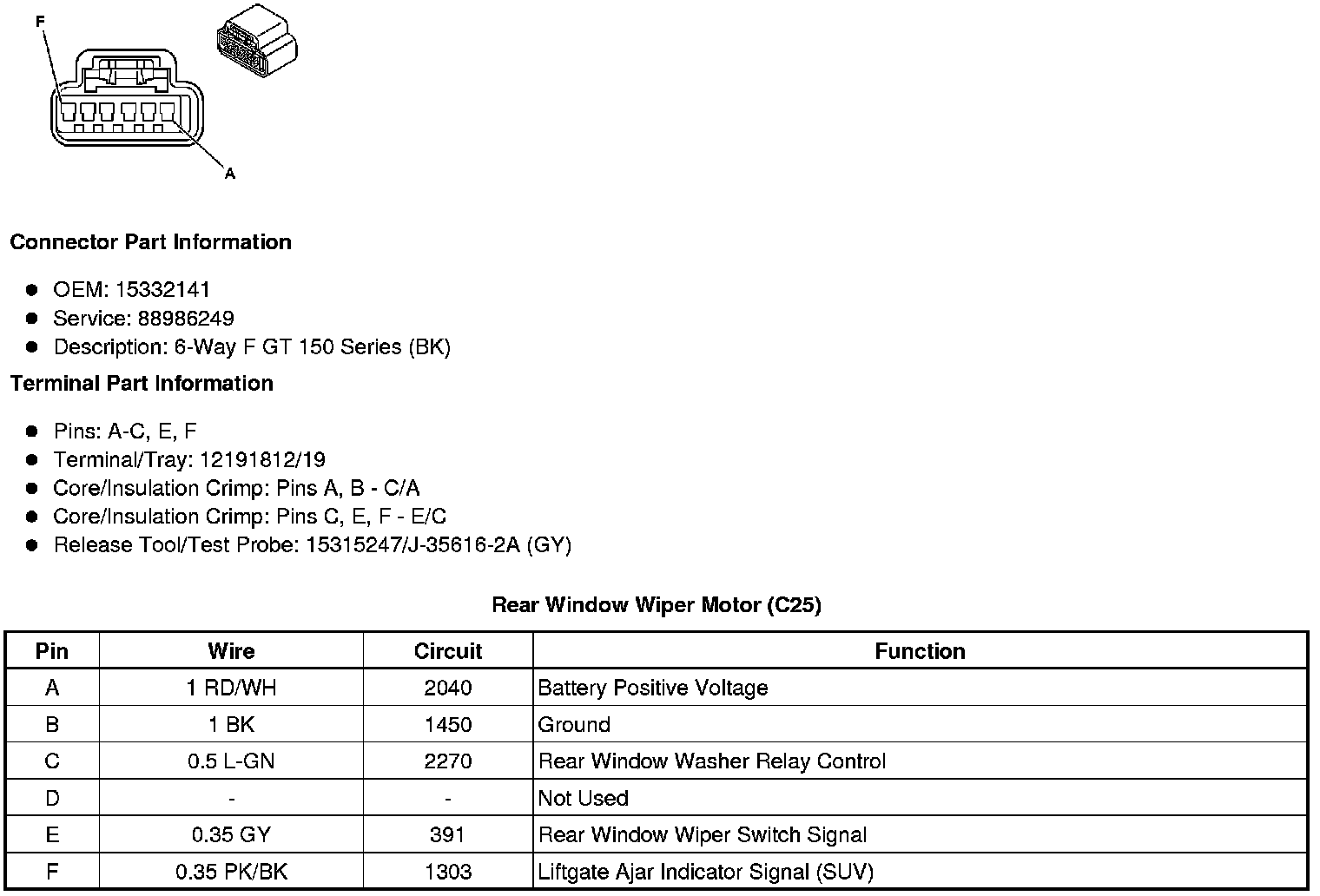

Component Connector End Views
Rear Window Wiper Motor (C25)
