Instrument Panel Harness - Left Passenger Compartment

Harness Routing Views

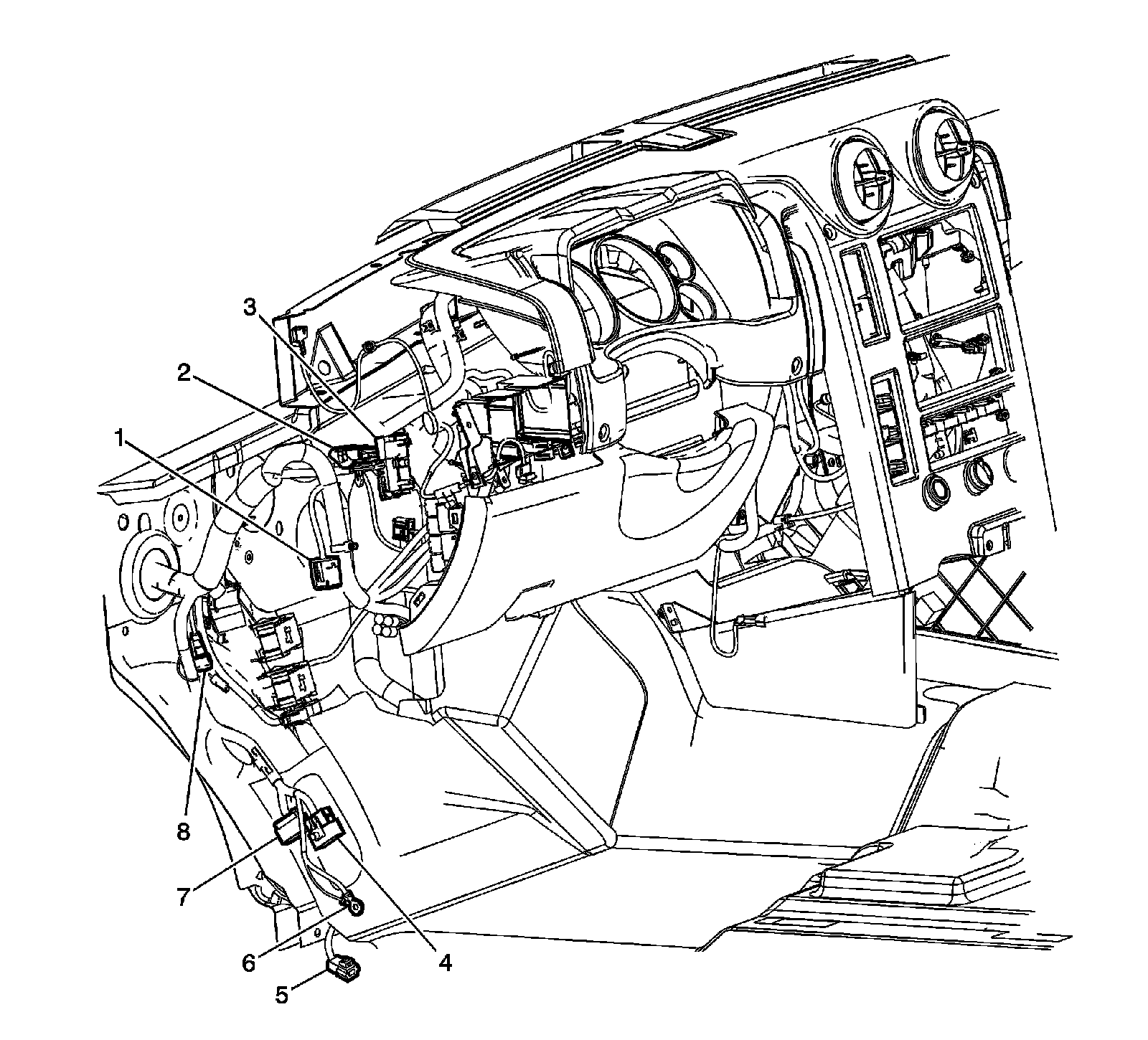

Instrument Panel Harness - Left Passenger Compartment




1 - JX205
2 - X205
3 - X201
4 - X200
5 - G200
6 - X208
7 - JX206
