Instrument Panel Harness - Right Passenger Compartment

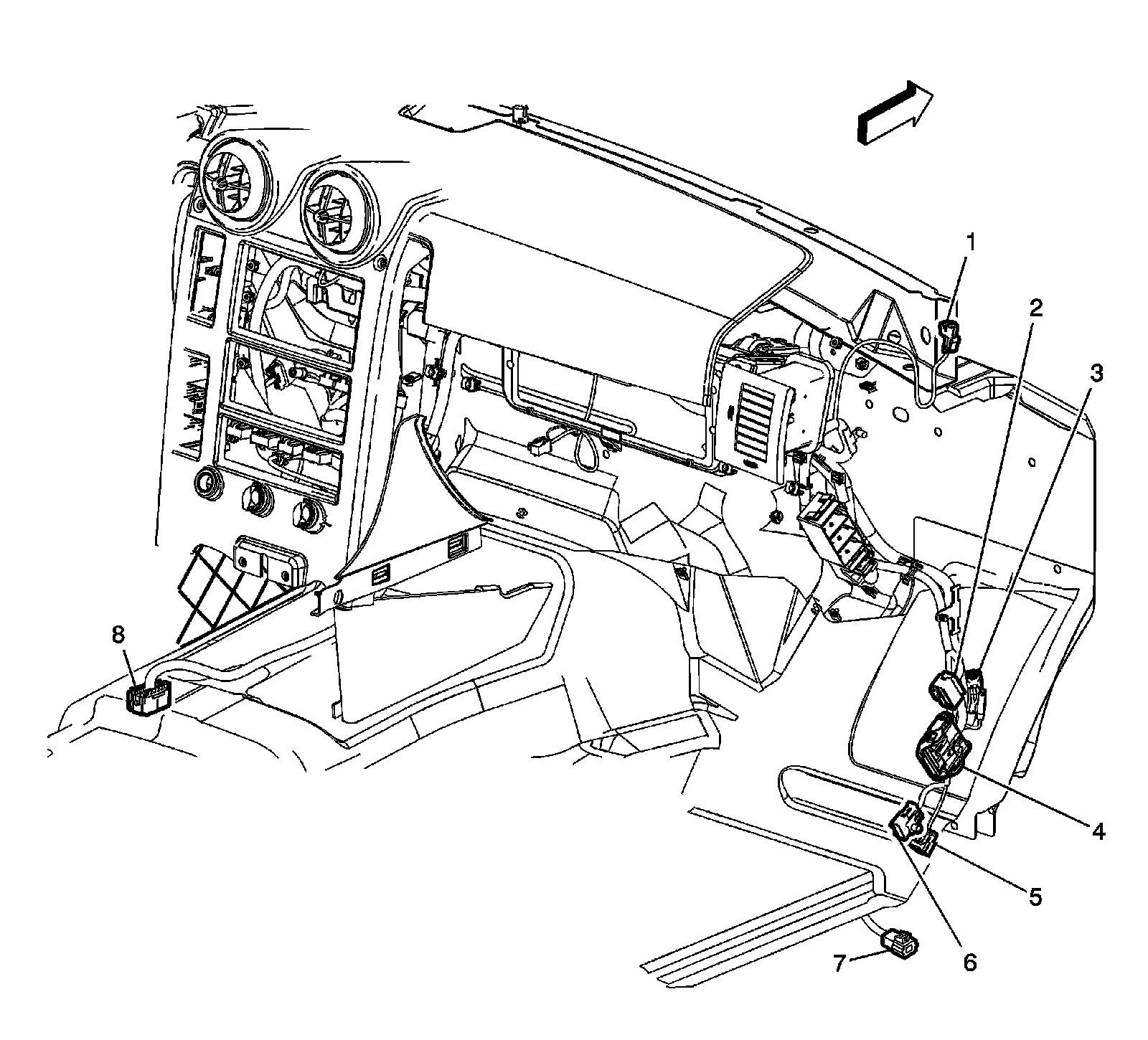

Harness Routing Views

Instrument Panel Harness - Right Passenger Compartment

1 - X290
2 - X235 (COAX)
3 - X298
4 - X296
5 - X295
6 - X350
