Chassis Harness - Front Engine Compartment

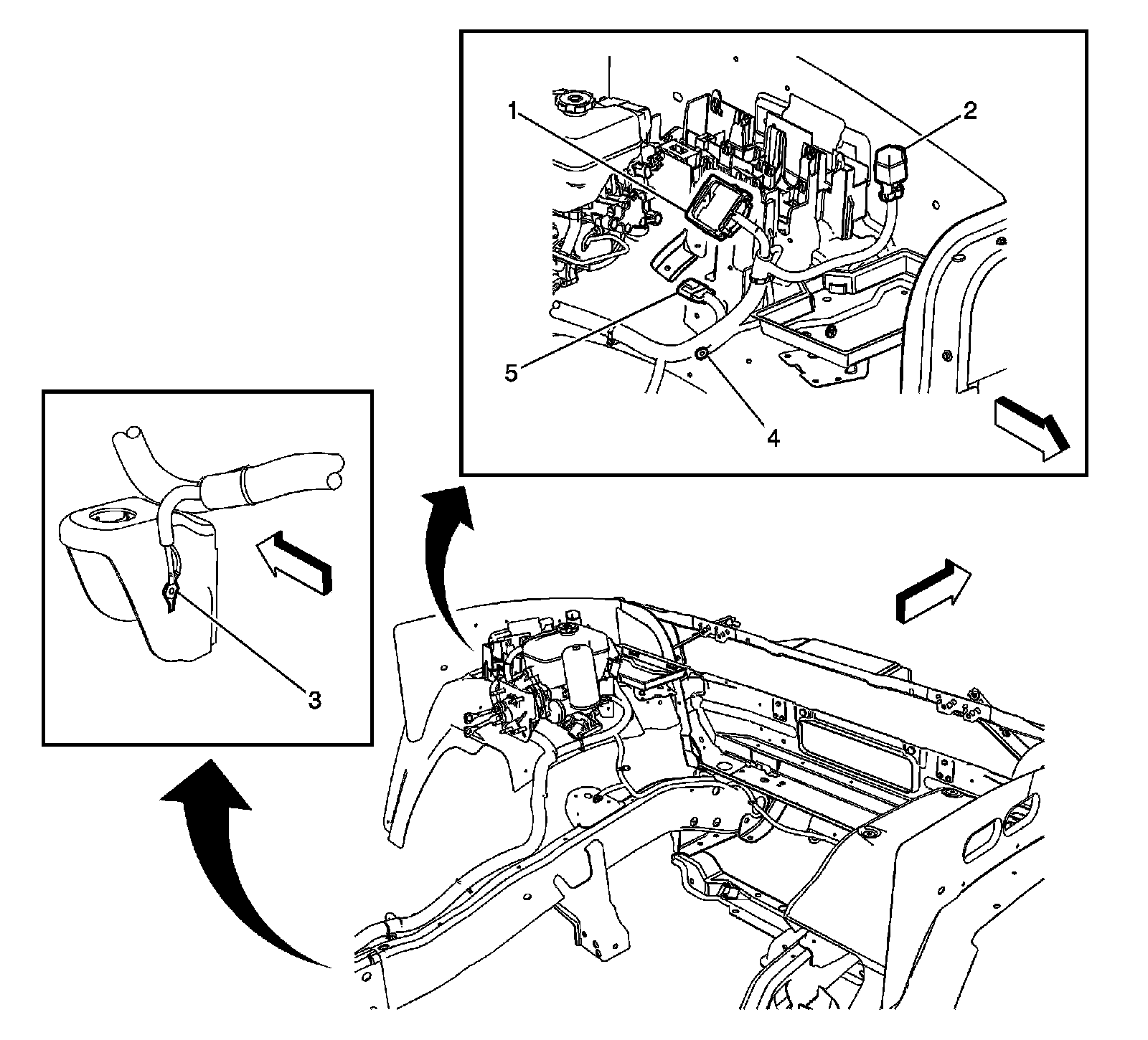

Harness Routing Views

Chassis Harness - Front Engine Compartment

1 - X104
2 - Air Suspension Relay (ZM6)
3 - G300
4 - Trailer Power
5 - X111
