Wiper and Washer Systems




Wiper/Washer Schematics

Wiper Controls





Wiper and Washer Motor Control

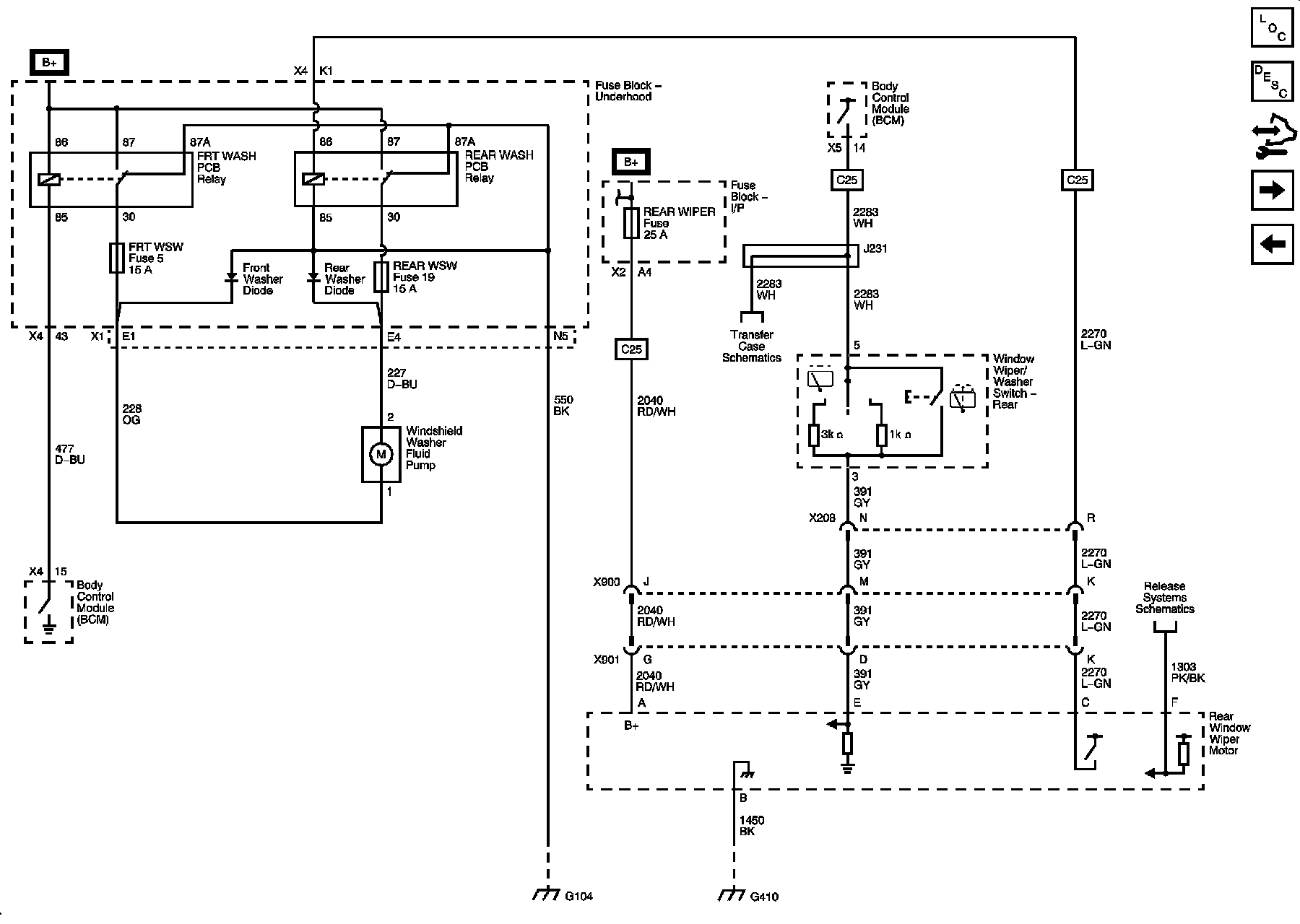

Rear Wiper and Washer





Heated Washer
