Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics

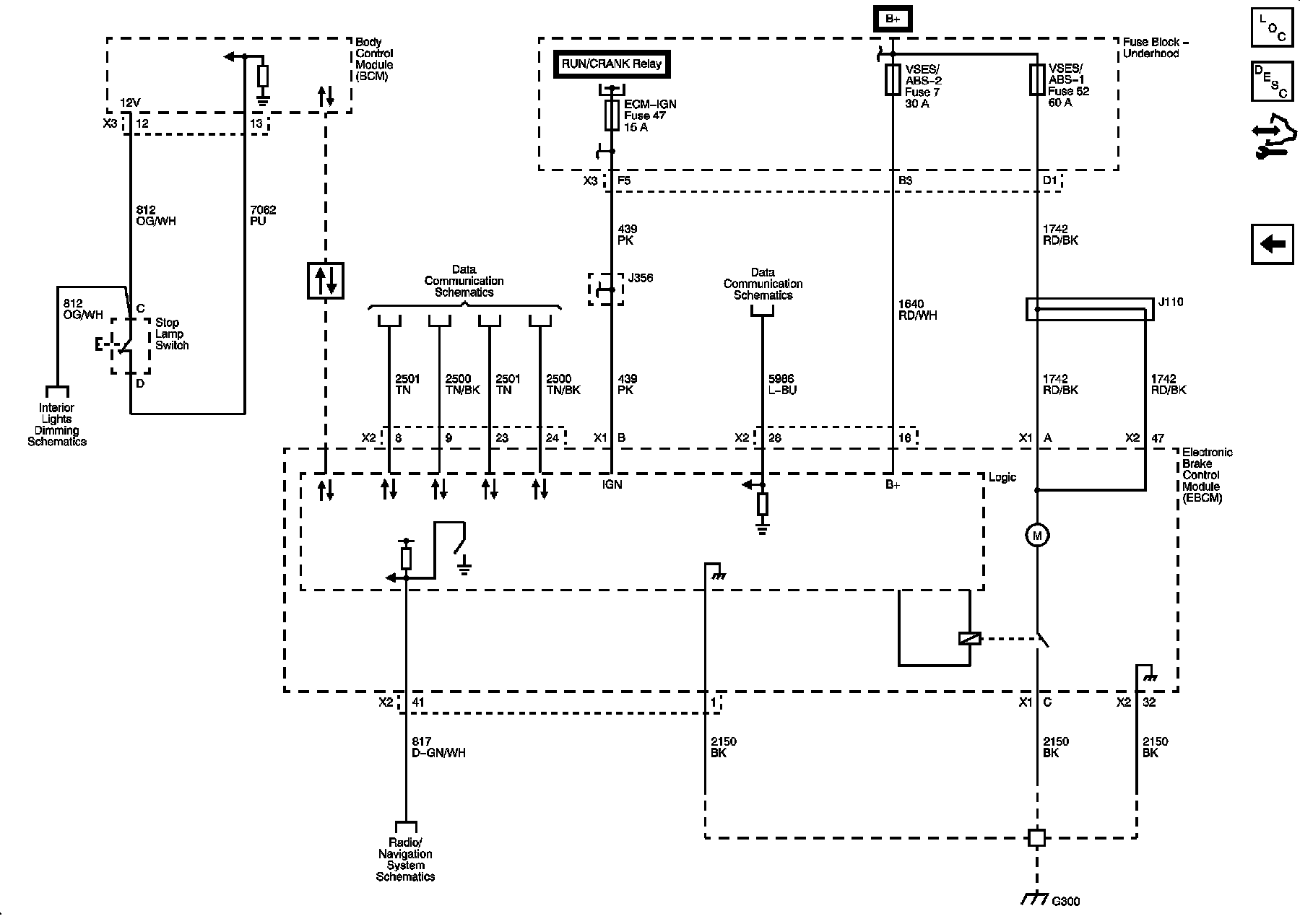

Module Power, Ground and Serial Data

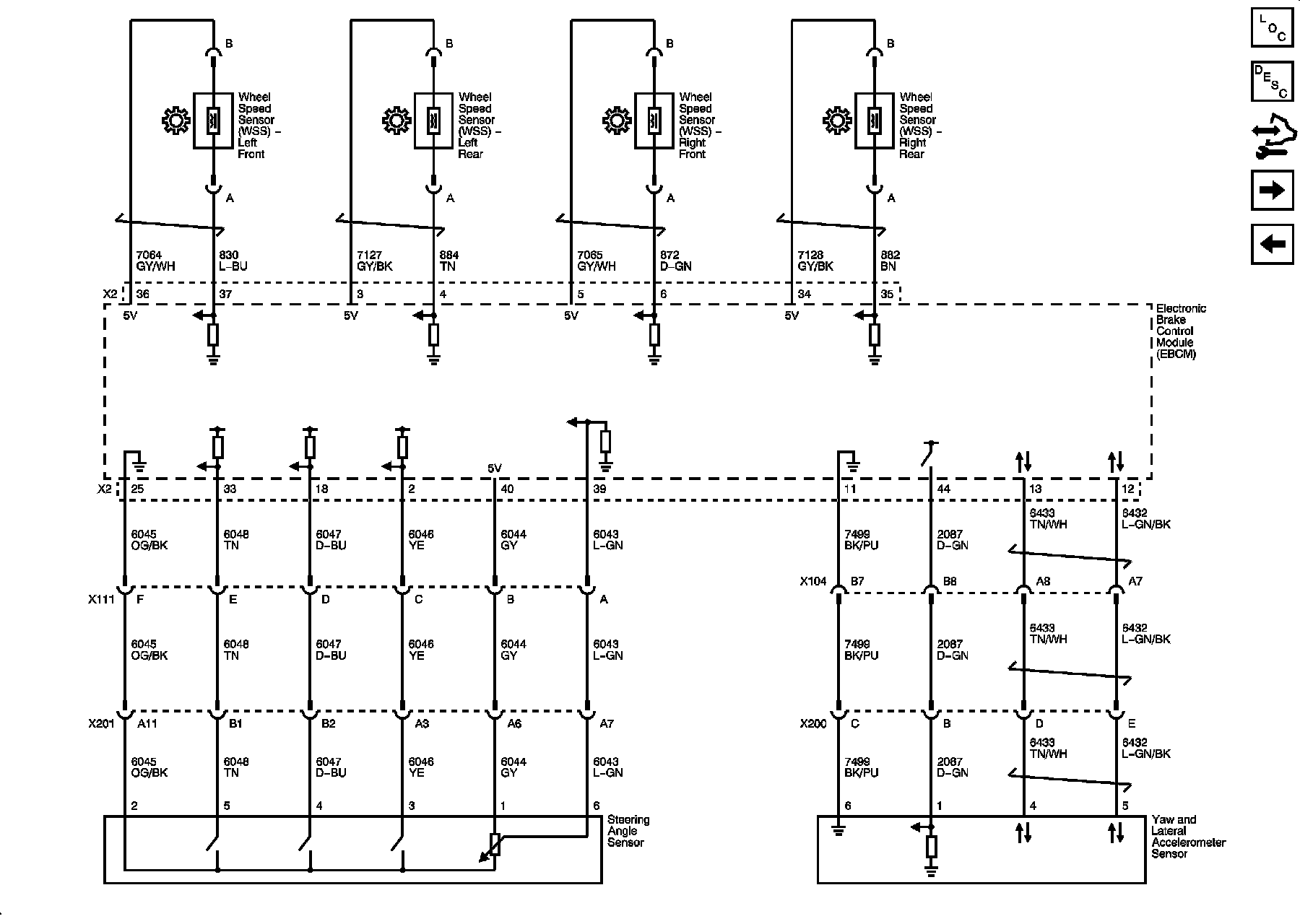

Sensors
