Air Bag Systems




SIR Schematics

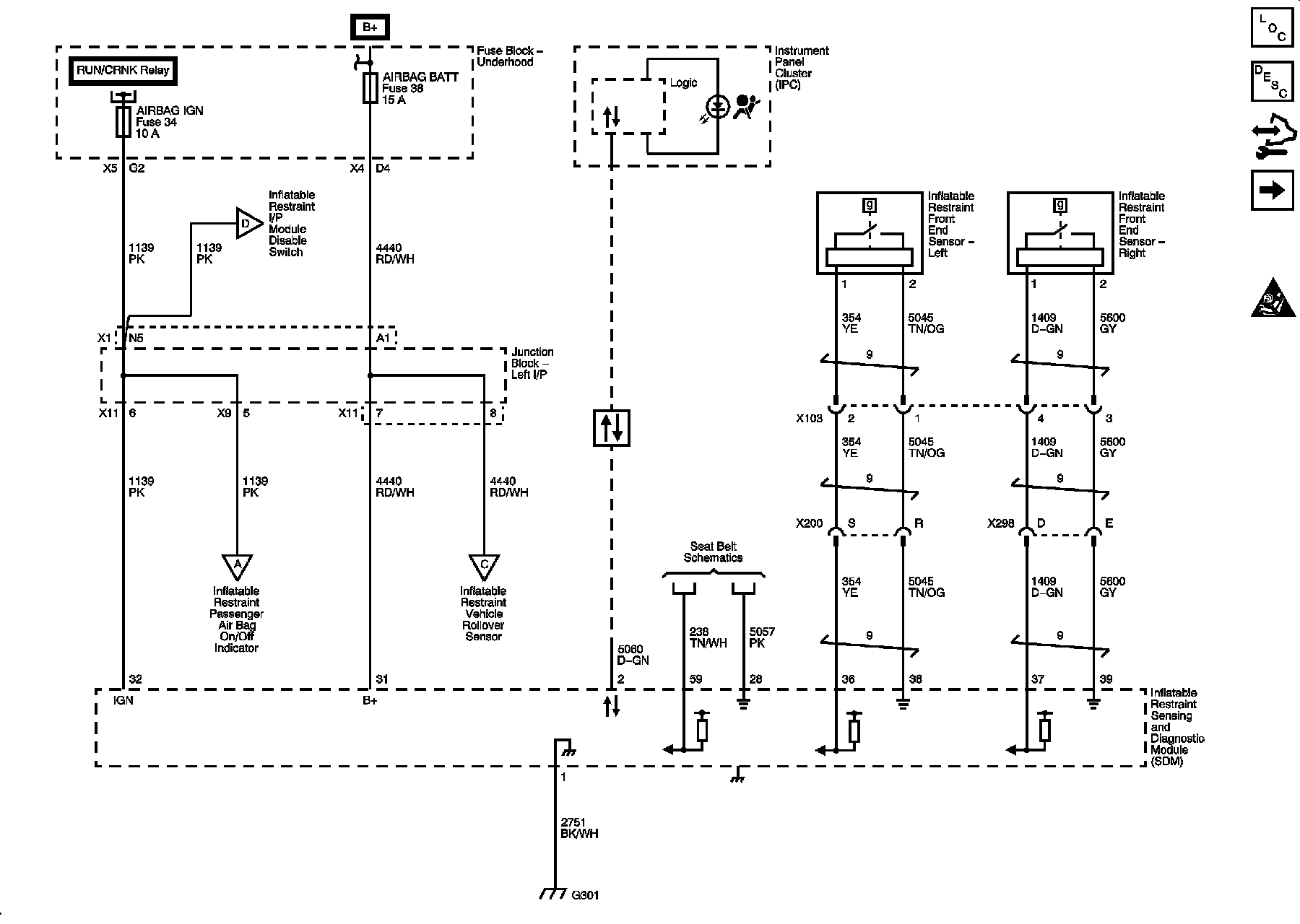

Module Power, Ground, Serial Data and Front Sensors





Steering Wheel and I/P Module

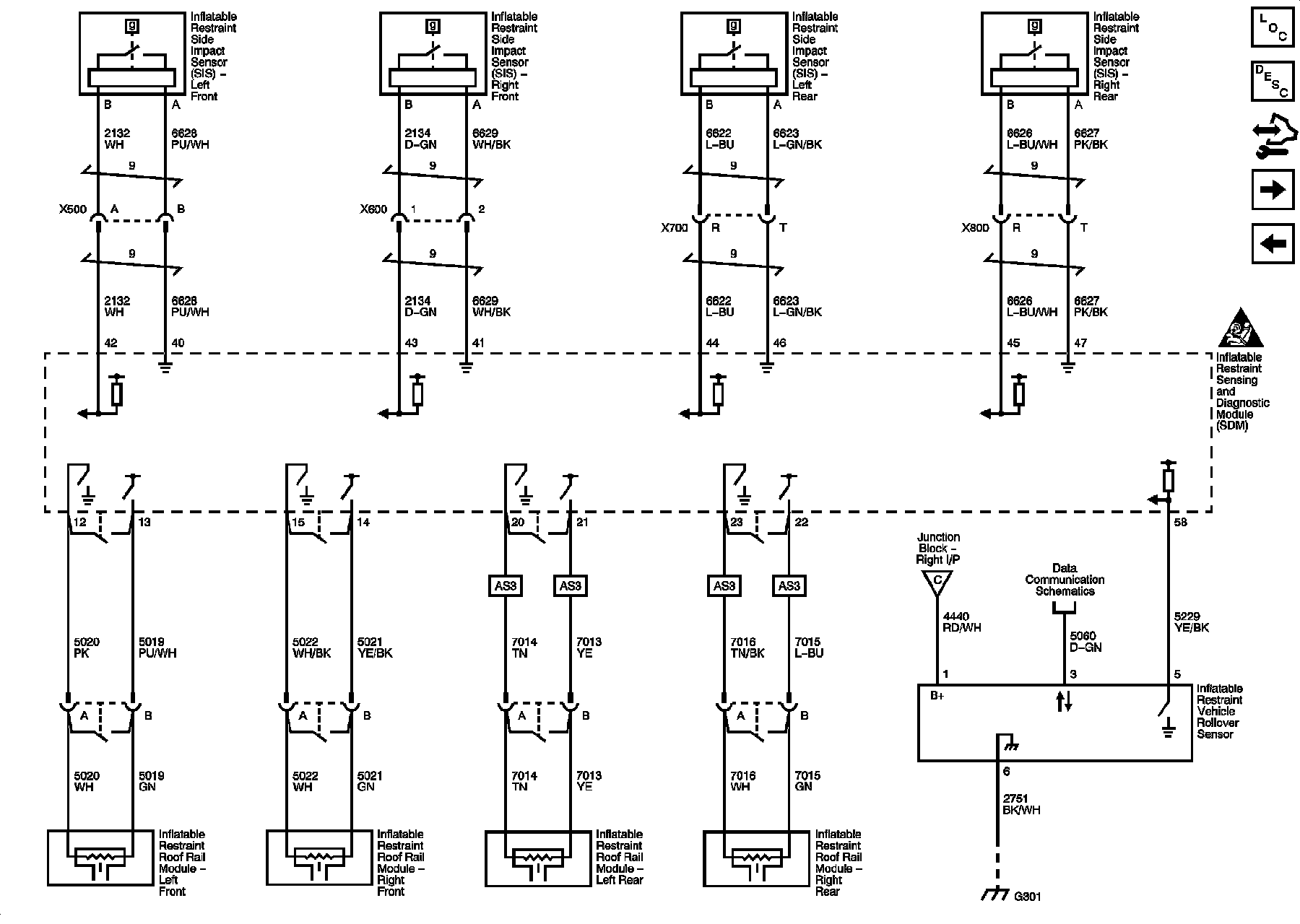

Side Impact Modules and Sensors

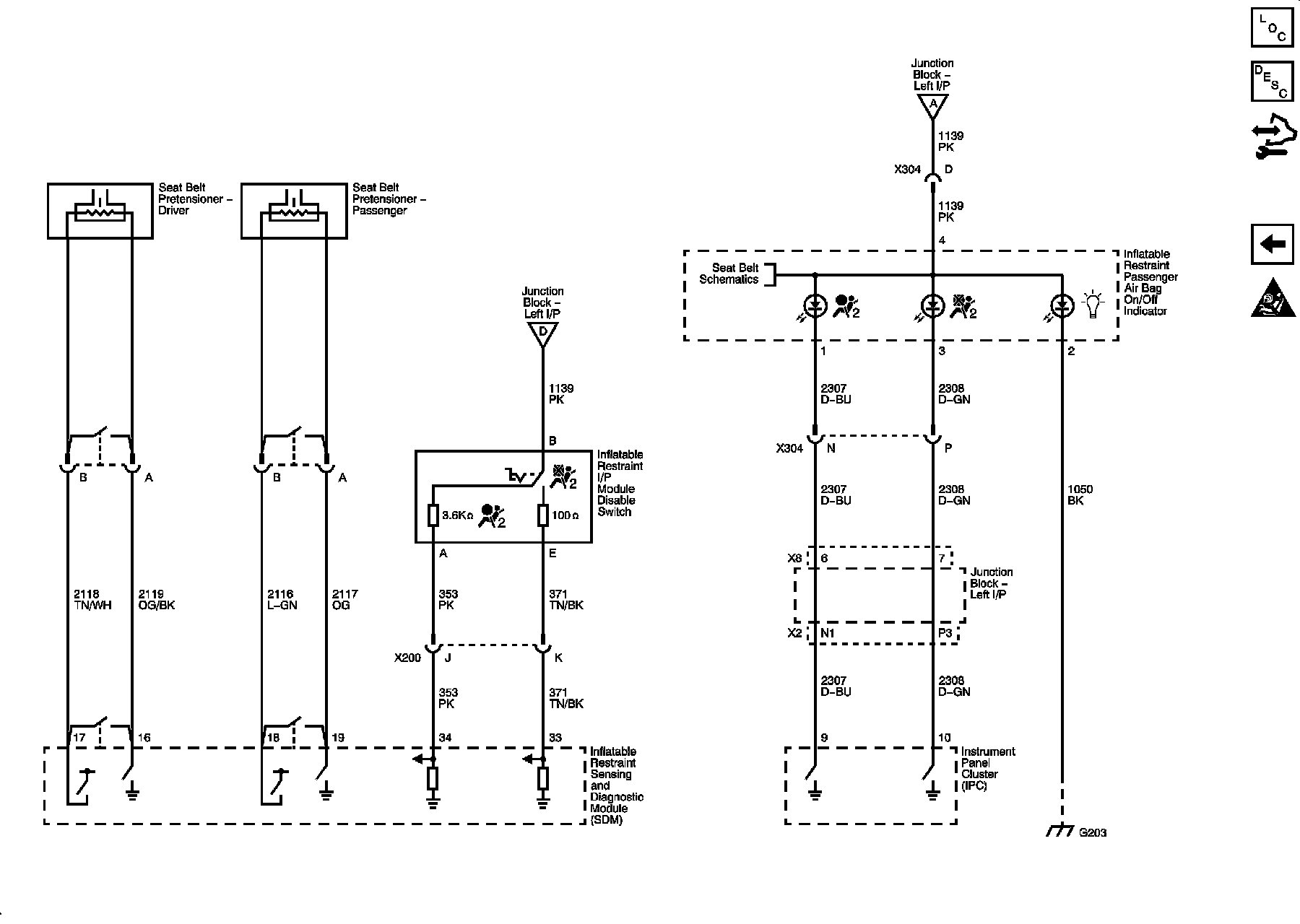

Seat Belt Pretensioners and Air Bag Indicator
