Turn Signal Lamp
>>
Tail/Stop and Turn Signal Lamp - Left
Tail/Stop and Turn Signal Lamp - Left

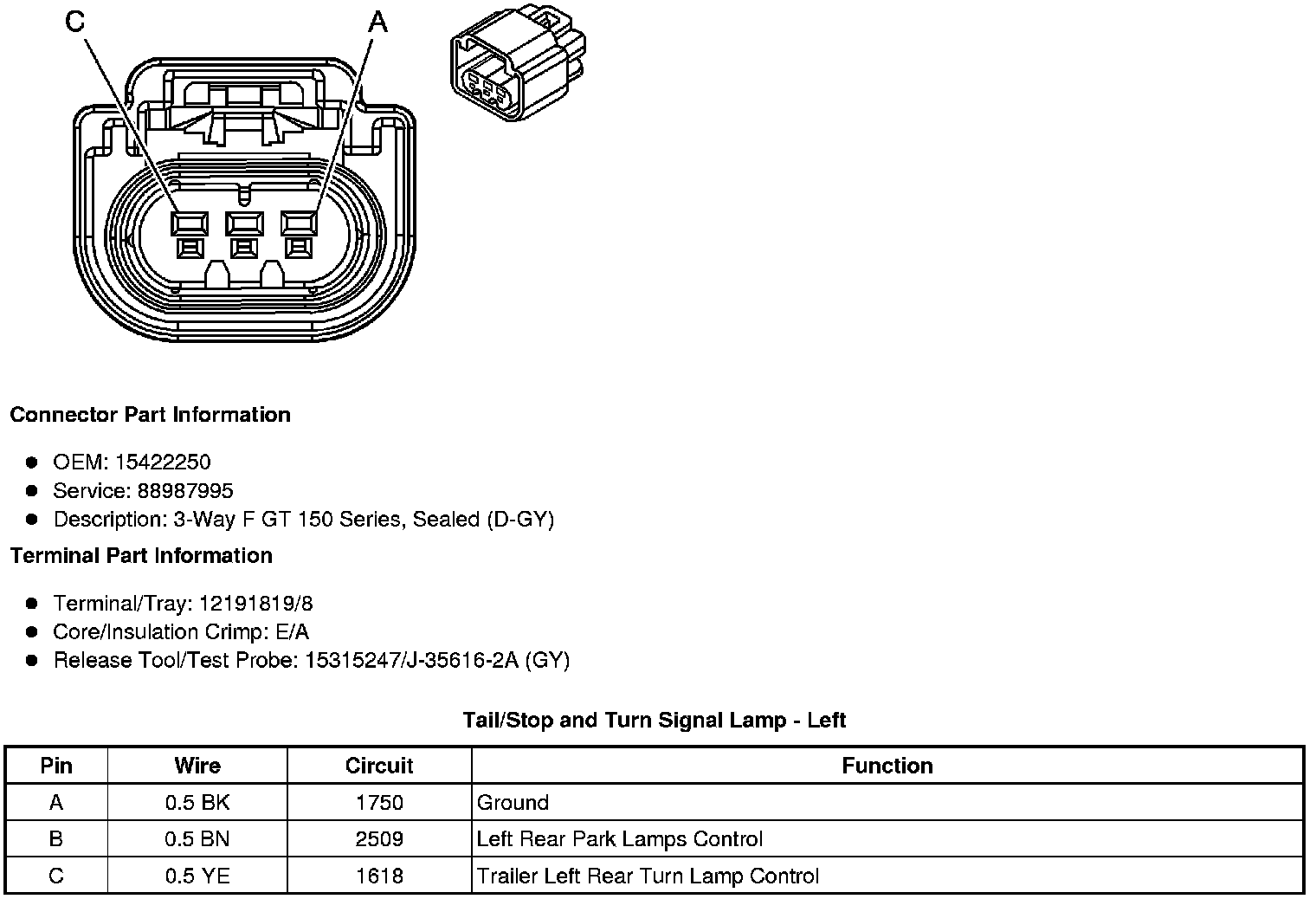

Component Connector End Views
Tail/Stop and
Turn Signal Lamp
- Left
