Liftgate Ajar Switch - Right (SUV)

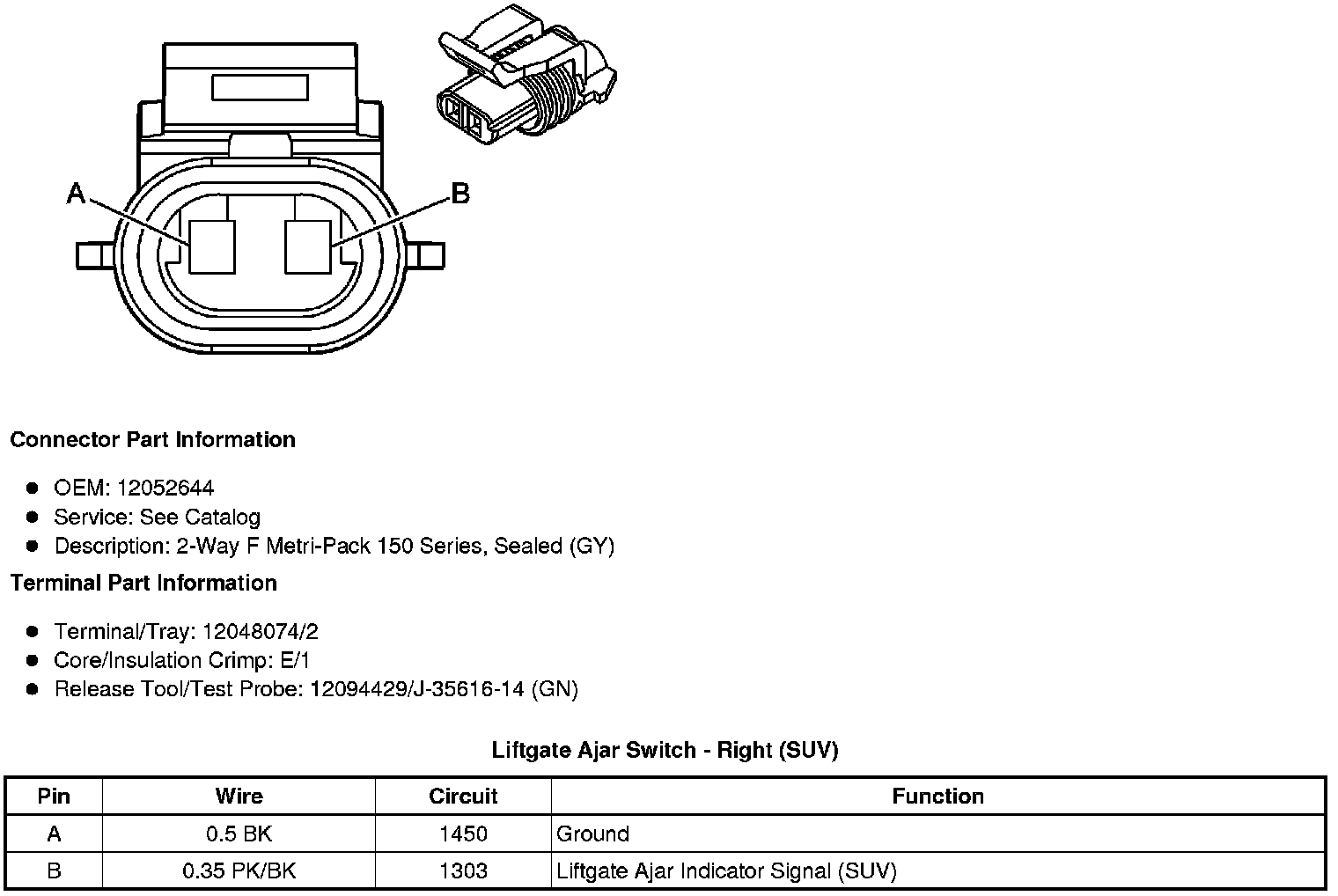

Component Connector End Views

Liftgate Ajar Switch - Right (SUV)
